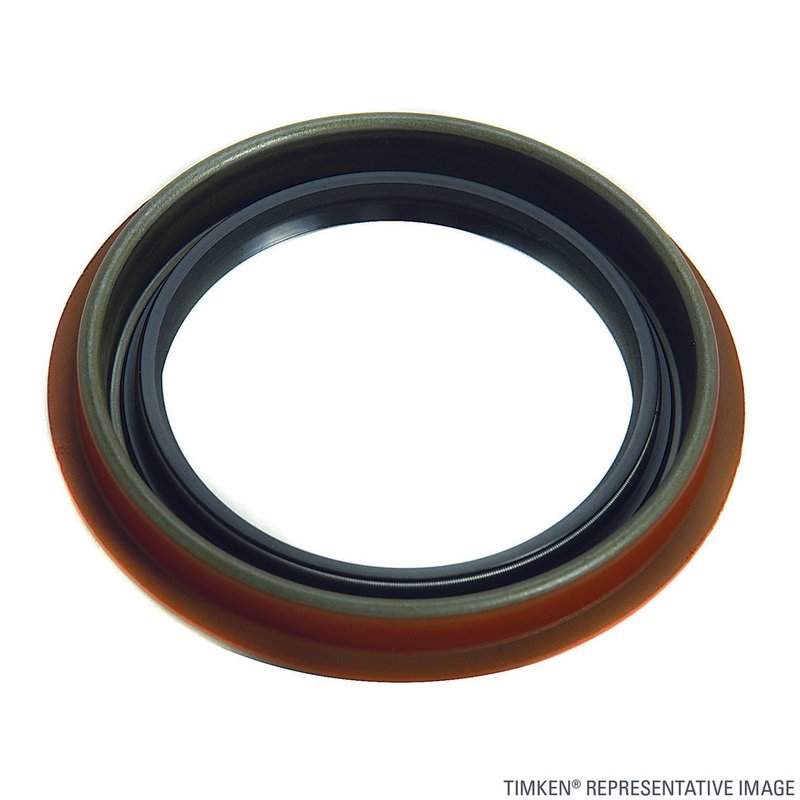

Timken 9449 Manual Transmission Output Shaft Seal - Rear

Timken 9449 Transmission Seal

Timken 9449 is a precision sealing solution for transmission and transfer case applications that need reliable lubricant retention and contamination control. It is used across a wide range of Chevrolet, GMC, Cadillac, Jeep, Jaguar, Rolls-Royce, and other vehicle platforms, including many Chevrolet Silverado and GMC Sierra applications.

Key Features

• Precision sealing design helps keep transmission fluid and grease inside the assembly
• Reinforced outer case resists installation damage and adds durability
• Ribbed rubber inner diameter seals minor shaft imperfections and promotes positive seating
• Internal contamination exclusion system helps block debris that can lead to leakage
• Vent holes promote lubricant flow around the seal lip to reduce heat build-up
• Fits applications listed as manual transmission output shaft seal, automatic transmission extension housing seal, and select transfer case rear seal applications

Detailed Description

Built by Timken, part number 9449 is engineered for dependable sealing performance in drivetrain service. The design focuses on maintaining a tight seal at the shaft or housing interface while helping protect the sealing surface from contamination and heat-related wear. For buyers searching for a manual transmission output shaft seal for Chevrolet C10, K10, Camaro, Corvette, or GMC Jimmy applications, this part number covers a broad range of fitments across multiple years and driveline configurations.

Timken 9449 also appears in many automatic transmission extension housing seal applications and select transfer case rear positions, including New Process 208, 231, 233, and 241 listings where noted. This makes it a practical replacement choice for service work on older GM trucks, SUVs, vans, and select specialty vehicles.

What It Helps Fix

• Transmission fluid leakage at the output shaft or extension housing
• Grease seepage from a worn or hardened seal lip
• Contamination entering the seal area and accelerating wear
• Heat-related seal deterioration from poor lubricant circulation
• Leakage caused by minor shaft surface imperfections

Installation Notes

Verify the exact application by year, make, model, position, and notes before installation. Timken 9449 is listed for multiple positions, including N/A and Rear, so matching the vehicle configuration is essential. Inspect the shaft, housing bore, and sealing surface for wear or scoring before installing the new seal. Clean the sealing area thoroughly and seat the seal evenly to avoid distortion.

Compatible fitment includes many Chevrolet Silverado and GMC Sierra trucks, along with Chevrolet Express, GMC Savana, Cadillac Escalade, Jeep CJ7, and Jaguar XJS applications. This part cross-references National Oil Seals 9449 and SKF 9449 for the same application.

Quality Assurance

Timken oil and grease seals use reinforced construction and contamination-control features to support consistent sealing performance in drivetrain service. Part number 9449 is built to Timken’s sealing standards for fitment-specific replacement use.
