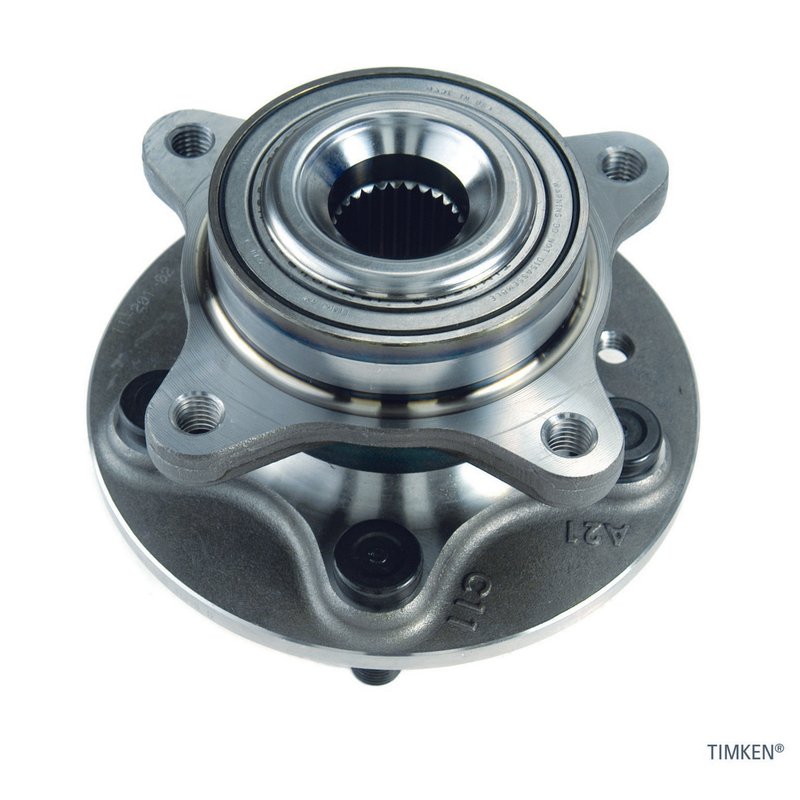

Timken HA500601 Wheel Bearing and Hub Assembly - Front

Timken HA500601 Wheel Bearing and Hub Assembly Overview

The Timken HA500601 wheel bearing and hub assembly is engineered for reliable performance in Land Rover vehicles, including the LR3, LR4, and Range Rover Sport. Designed to meet precise specifications, this assembly ensures proper fitment and durability for driven axles.

• 29 spline quantity for accurate drivetrain engagement
• 5 wheel studs and 4 flange bolt holes for secure mounting
• Wheel pilot diameters of 2.856 inches (72.53 mm) for precise wheel alignment
• Brake pilot diameters of 3.109 inches (78.97 mm) to support brake component fitment
• Hub pilot diameters of 3.506 inches (89.04 mm) for stable hub positioning
• Flange diameter of 6.240 inches (158.50 mm) with a flange offset of 2.303 inches (58.50 mm)
• Bolt circle diameter of 4.724 inches (120.00 mm) matching OEM specifications
• Designed for driven axle applications

Technical Details and Specifications

The Timken HA500601 is a wheel bearing and hub assembly specifically designed for driven axles on Land Rover LR3, LR4, and Range Rover Sport models. The 29 spline count ensures compatibility with the vehicle’s drivetrain, while the 5 wheel studs and 4 flange bolt holes provide a secure and stable connection to the wheel and brake components. The assembly features multiple pilot diameters to accommodate wheel, brake, and hub interfaces, ensuring precise alignment and minimizing vibration. The flange diameter and offset are engineered to match OEM dimensions, maintaining proper wheel positioning and vehicle handling characteristics.

Compatible Vehicles and Applications

This wheel bearing and hub assembly is compatible with the following Land Rover models:

• Land Rover LR3
• Land Rover LR4
• Range Rover Sport

It is intended for use on driven axles, making it suitable for front or rear hub replacement where applicable.

Common Issues Addressed by Timken HA500601

• Eliminates wheel bearing noise caused by wear or damage
• Resolves wheel wobble or play due to worn hub components
• Restores proper wheel alignment and brake rotor positioning
• Prevents premature tire wear from hub misalignment
• Ensures secure mounting of wheels and brake assemblies

Installation Notes and Tips

When installing the Timken HA500601 wheel bearing and hub assembly, ensure the following:

• Verify spline count and pilot diameters match the vehicle’s specifications
• Use proper torque settings on flange bolts and wheel studs to OEM recommendations
• Inspect related components such as axle shafts and brake rotors for wear
• Clean mounting surfaces to prevent contamination and ensure proper fit
• Check for any signs of damage or corrosion before installation

Quality Assurance and Warranty

Timken manufactures the HA500601 assembly to meet strict quality standards, ensuring durability and reliable performance. The product undergoes rigorous testing to comply with OEM specifications. Warranty coverage details should be confirmed with the supplier or manufacturer, as they may vary by region.
