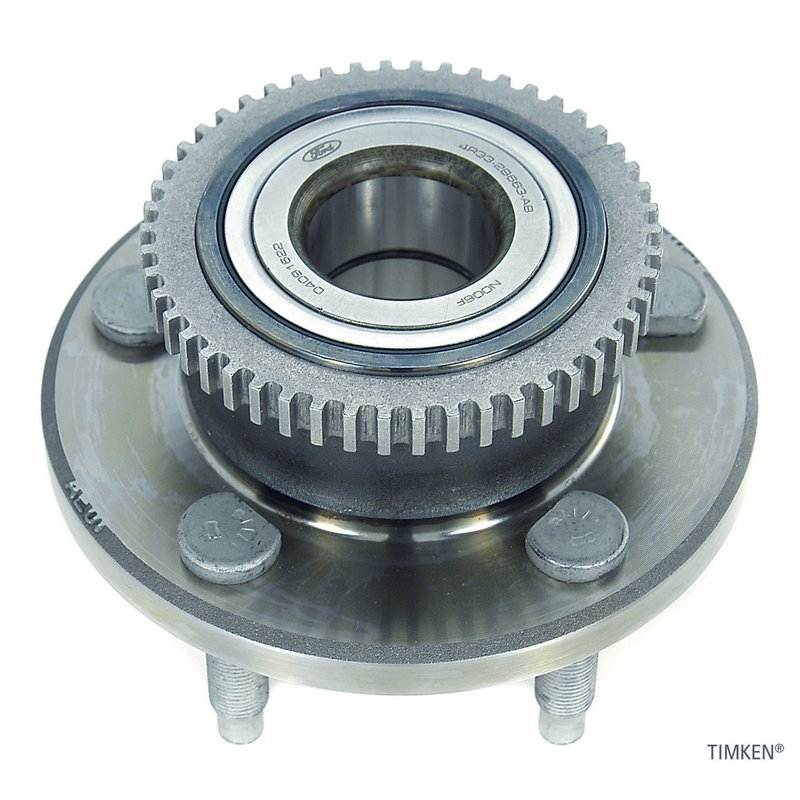

Timken HA590017 Wheel Bearing and Hub Assembly - Front

Timken HA590017 Front Wheel Hub Assembly

Timken HA590017 is a front wheel bearing and hub assembly for the 2005-2014 Ford Mustang. It is built for the non-driven front position and uses OE-developed testing, precision bearing geometry, and low runout control to support smooth operation, reduced noise, and stable braking performance.

Key Features

• Front wheel bearing and hub assembly for Ford Mustang applications
• Fits 2005-2014 Ford Mustang, front
• 5-wheel-stud hub with 4.5 in. bolt circle diameter
• Wheel pilot diameter: 2.775 in. / 70.48 mm
• Brake pilot diameter: 2.8 in. / 71.12 mm
• Non-driven hub assembly for front axle service
• Premium seals with contamination exclusion features and venting details
• ABS sensor is 100% tested for wheel-speed monitoring

Detailed Description

Timken HA590017 is engineered as a direct-fit front hub assembly for the Ford Mustang, covering 2005-2014 model years. The assembly uses premium bearings with controlled internal geometry and refined surface finishes to support load capacity, bearing life, and efficient operation. Low runout helps reduce vibration and noise while supporting consistent braking feel. Timken HA590017 also includes an ABS sensor that is fully tested for wheel-speed signal monitoring in Anti-lock Braking Systems.

This part cross-references MOOG Hub Assemblies 513221 and SKF BR930494 for the same application.

What It Helps Solve

• Front-end wheel noise from a worn hub bearing
• Vibration or roughness felt through the steering or chassis
• ABS warning light concerns related to wheel-speed signal issues
• Uneven braking feel caused by hub runout or bearing wear
• Excessive play in the front wheel hub area

Installation Notes and Tips

Confirm fitment by year, make, model, and front position before installation. Inspect the mating surfaces, axle components, and brake-related hardware for wear or damage before mounting the new hub assembly. Follow factory torque specifications and verify ABS operation after installation. For 2005-2014 Ford Mustang front hub service, HA590017 should be matched to the vehicle’s non-driven front application and bolt pattern requirements.

Quality Assurance

Timken manufactures hub bearing assemblies using OE-developed test procedures that control design, materials, and production processes. The result is a front wheel bearing and hub assembly built to consistent dimensional and performance standards for Ford Mustang service. Part number HA590017 is supported by Timken’s engineering approach to bearing durability, sealing, and ABS signal reliability.
