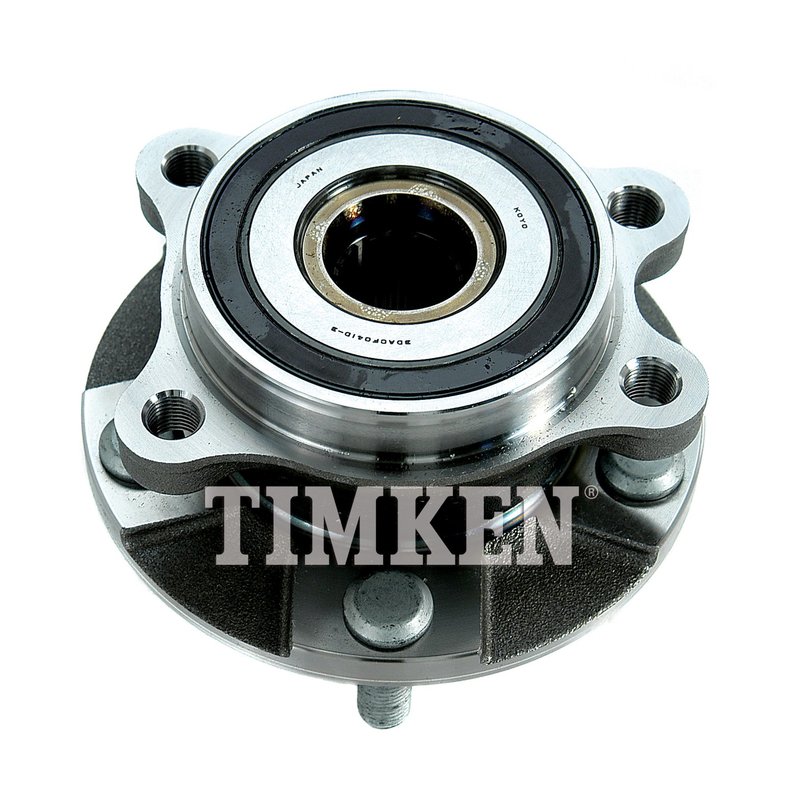

Timken HA590165 Wheel Bearing and Hub Assembly - Front

Timken HA590165 Wheel Bearing and Hub Assembly Overview

The Timken HA590165 wheel bearing and hub assembly is engineered for reliable driveline performance on select Lexus, Scion, and Toyota vehicles. Designed to meet precise specifications, this assembly ensures proper fitment and durability for models like the Toyota Corolla iM, Prius V, and RAV4.

• 26 spline quantity for secure axle engagement
• 4 flange bolt holes with a 114.3 mm (4.5 inch) bolt circle diameter
• 5 wheel studs for stable wheel mounting
• Wheel pilot diameter of 60.00 mm (2.362 inches) for accurate wheel alignment
• Brake pilot diameter of 62.00 mm (2.441 inches) to support brake component fitment
• Hub pilot diameter of 90.00 mm (3.543 inches) for precise hub centering
• Flange offset of 47.50 mm (1.870 inches) to maintain proper wheel positioning
• Designed for driven axle applications

Detailed Product Description

The Timken HA590165 wheel bearing and hub assembly is a critical component in the driveline and axle system, specifically designed for driven axles on compatible Lexus, Scion, and Toyota vehicles. This assembly features a 26-spline interface that ensures a secure connection to the axle shaft, while the 5 wheel studs provide a stable mounting surface for the wheel. The flange includes 4 bolt holes arranged on a 114.3 mm bolt circle diameter, matching factory specifications for proper installation.

Precision measurements such as the 60.00 mm wheel pilot diameter and 62.00 mm brake pilot diameter help maintain correct wheel and brake rotor alignment, reducing vibration and wear. The 90.00 mm hub pilot diameter centers the hub assembly accurately on the axle, and the 47.50 mm flange offset ensures the wheel sits in the correct position relative to the suspension and brake components.

Compatible Vehicles and Applications

This Timken HA590165 assembly is compatible with a range of Lexus, Scion, and Toyota models, including:

• Toyota Corolla iM
• Toyota Prius V
• Toyota RAV4
• Scion tC
• Scion xB
• Lexus HS250h

It is designed for driven axle applications, making it suitable for front or rear wheel drive configurations depending on the vehicle.

Common Issues Addressed by This Assembly

• Eliminates wheel bearing noise caused by wear or damage
• Resolves wheel wobble or vibration due to hub misalignment
• Prevents uneven tire wear from improper wheel mounting
• Restores proper brake rotor alignment to reduce brake pulsation
• Fixes axle spline wear affecting driveline engagement

Installation Notes and Tips

• Ensure the vehicle is securely lifted and supported before removal
• Clean the axle shaft splines and hub mounting surfaces prior to installation
• Torque flange bolts and wheel studs to manufacturer specifications
• Check for proper flange offset and pilot diameters to confirm fitment
• Inspect related components such as seals and brakes during installation

Quality Assurance and Warranty

Timken wheel bearing and hub assemblies are manufactured to meet or exceed OEM standards for durability and performance. The HA590165 part number undergoes rigorous quality control to ensure precise fit and long service life. Warranty coverage details should be confirmed with the point of purchase or Timken directly.
