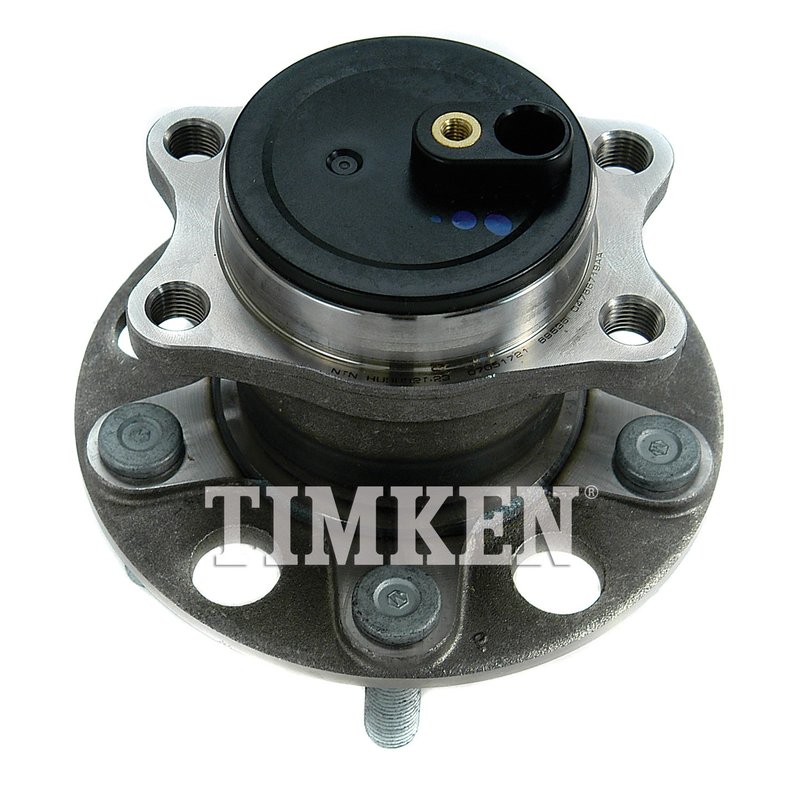

Timken HA590216 Wheel Bearing and Hub Assembly - Rear or Rear Right

Timken HA590216 Wheel Bearing and Hub Assembly Overview

The Timken HA590216 wheel bearing and hub assembly is engineered for reliable performance in select Chrysler, Dodge, and Jeep vehicles. Designed as a non-driven hub, this assembly ensures precise fitment and durability for models including the Avenger, Caliber, Compass, Patriot, and Sebring.

• Flange bolt hole quantity: 4
• Wheel pilot diameter: 2.638 inches (67.00 mm)
• Brake pilot diameter: 3.150 inches (80.00 mm)
• Wheel stud quantity: 5
• Hub pilot diameter: 2.913 inches (74.00 mm)
• Flange offset: 2.386 inches (60.60 mm)
• Flange diameter: 5.512 inches (140.00 mm)
• Bolt circle diameter: 4.500 inches (114.30 mm)
• Drive type: Non-driven

Technical Details and Specifications

The HA590216 wheel bearing and hub assembly features a 5-stud wheel configuration with a 4-hole flange bolt pattern, designed to match the exact specifications required by Chrysler, Dodge, and Jeep vehicles such as the 2007-2010 Avenger, 2007-2012 Caliber, Compass, Patriot, and Sebring models. The wheel pilot diameter measures 2.638 inches (67 mm), while the brake pilot diameter is 3.150 inches (80 mm), ensuring proper alignment with brake components. The hub pilot diameter of 2.913 inches (74 mm) provides a secure fit on the axle shaft. The flange offset of 2.386 inches (60.60 mm) and flange diameter of 5.512 inches (140 mm) contribute to correct wheel positioning and load distribution. The bolt circle diameter of 4.500 inches (114.30 mm) matches factory specifications for these vehicles. This assembly is designed as a non-driven hub, suitable for front or rear axle applications where the hub does not transmit drive torque.

Compatible Vehicles and Applications

This Timken wheel bearing and hub assembly is compatible with the following makes and models:

• Chrysler 200 (2007-2010)
• Dodge Avenger (2007-2010)
• Dodge Caliber (2007-2012)
• Jeep Compass (2007-2012)
• Jeep Patriot (2007-2012)
• Chrysler Sebring (2007-2010)

Common Issues Addressed by This Hub Assembly

• Eliminates wheel bearing noise caused by wear or damage
• Resolves wheel vibration and wobble due to hub failure
• Corrects uneven tire wear linked to faulty hub alignment
• Prevents brake rotor misalignment from worn brake pilot diameter
• Restores proper wheel stud engagement for secure wheel mounting

Installation Notes and Tips

• Ensure vehicle is securely lifted and supported before removal
• Verify the flange bolt hole quantity and wheel stud count match the vehicle
• Clean mounting surfaces to remove rust and debris for proper fit
• Torque flange bolts to manufacturer specifications to avoid damage
• Inspect related components such as brake rotors and axle shafts during installation

Quality Assurance and Warranty

Timken wheel bearing and hub assemblies are manufactured to meet or exceed OEM standards for durability and performance. The HA590216 part number undergoes rigorous quality control to ensure precise fit and long service life. This product typically includes a limited warranty covering defects in materials and workmanship; please refer to Timken's official warranty policy for specific terms.
