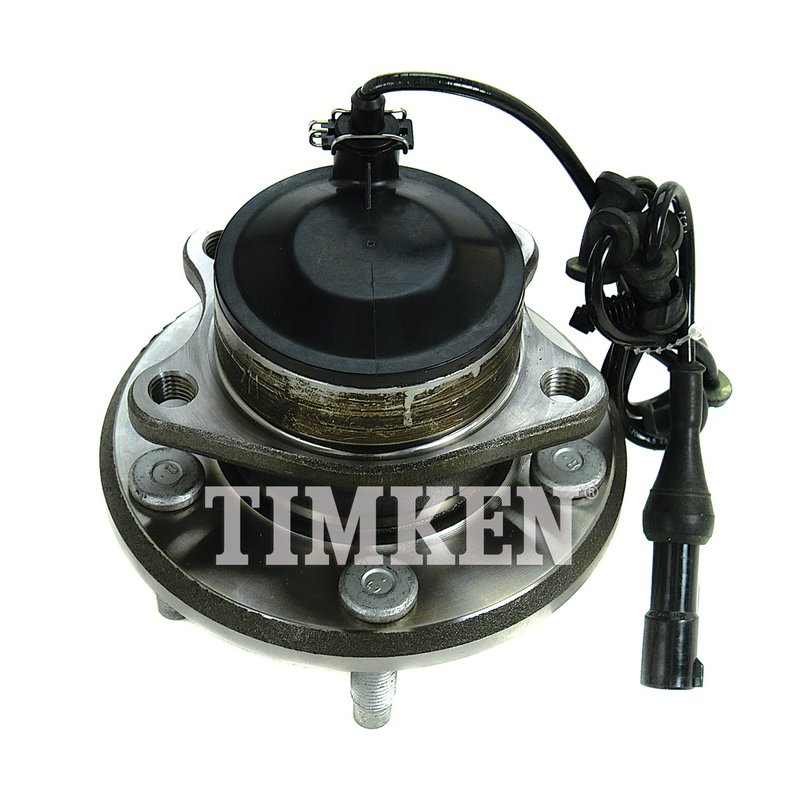

Timken HA590224 Wheel Bearing and Hub Assembly - Front

Timken HA590224 Wheel Bearing and Hub Assembly Overview

The Timken HA590224 wheel bearing and hub assembly is engineered for reliable performance in select Ford, Jaguar, and Lincoln vehicles. Designed as a non-driven hub, this assembly supports smooth wheel rotation and precise fitment for models including the Ford Thunderbird, Jaguar XF, and Lincoln LS.

• Non-driven wheel bearing and hub assembly
• 5 wheel studs with a 5x4.25 inch bolt circle diameter
• 4 flange bolt holes with a flange diameter of 5.476 inches
• Wheel pilot diameter options: 2.500 inches (63.50 mm)
• Brake pilot diameter options: 2.795 inches (71.00 mm)
• Hub pilot diameter options: 2.992 inches (76.00 mm)
• Flange offset of 1.752 inches (44.50 mm)

Detailed Specifications and Fitment

The HA590224 assembly features a 5-stud wheel configuration with a bolt circle diameter of 107.95 mm (4.250 inches), ensuring compatibility with specific wheel designs on Ford Thunderbird, Jaguar XF, and Lincoln LS models. The flange includes 4 bolt holes and measures 139.10 mm (5.476 inches) in diameter, providing a secure mounting surface. The hub pilot diameter of 76.00 mm (2.992 inches) and brake pilot diameter of 71.00 mm (2.795 inches) are critical for proper alignment and brake component fitment. This assembly is designed without splines, reflecting its non-driven status, and includes a flange offset of 44.50 mm (1.752 inches) to maintain correct wheel positioning.

Applications and Problem Resolution

• Replacement for worn or damaged wheel bearing and hub assemblies on Ford Thunderbird, Jaguar XF, and Lincoln LS vehicles
• Addresses wheel vibration and noise caused by bearing wear
• Resolves issues with uneven tire wear due to hub misalignment
• Corrects wheel hub looseness affecting vehicle handling
• Supports brake system stability by maintaining proper brake pilot alignment

Installation Notes and Tips

Ensure the vehicle is securely lifted and supported before beginning installation. Verify the flange bolt hole pattern and wheel stud count match the vehicle specifications. Clean the hub mounting surface to remove debris and corrosion for optimal fit. Torque all flange bolts to manufacturer specifications to prevent loosening. It is recommended to inspect related suspension and brake components during installation for comprehensive maintenance.

Quality Assurance and Warranty

Timken wheel bearing and hub assemblies are manufactured to meet OEM standards for durability and performance. The HA590224 part number undergoes rigorous quality control to ensure precise fit and long service life. This product is backed by Timken's limited warranty against defects in materials and workmanship, providing confidence in its reliability for Ford, Jaguar, and Lincoln applications.
