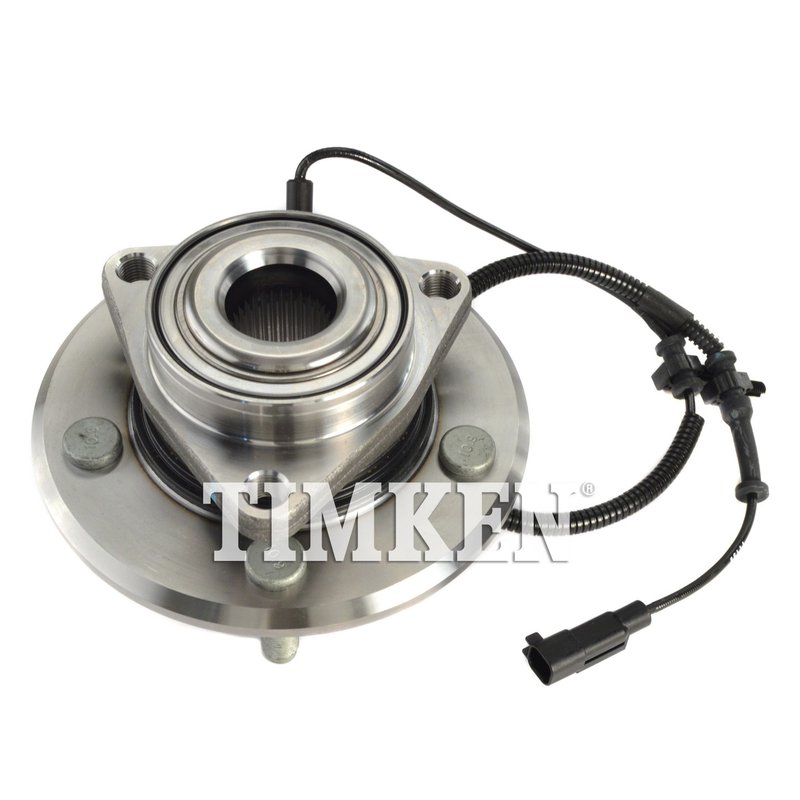

Timken HA590515 Wheel Bearing and Hub Assembly - Front

Timken HA590515 Wheel Bearing and Hub Assembly Overview

The Timken HA590515 wheel bearing and hub assembly is engineered for reliable performance in Ram 1500 and 1500 Classic models. Designed to meet precise specifications, this driven hub assembly ensures proper fitment and durability for your vehicle's driveline system.

• 33 spline quantity for secure axle engagement
• 3 flange bolt holes with a 139.7 mm (5.5 inch) bolt circle diameter
• 5 wheel studs for stable wheel mounting
• Wheel pilot diameter of 77.72 mm (3.060 inches) and brake pilot diameter of 78.46 mm (3.089 inches)
• Hub pilot diameter of 90.04 mm (3.545 inches) for accurate hub alignment
• Flange diameter of 182.98 mm (7.204 inches) with a flange offset of 46.76 mm (1.841 inches)
• Designed for driven axle applications

Detailed Product Description

The Timken HA590515 wheel bearing and hub assembly is specifically designed for the Ram 1500 and 1500 Classic, providing a precise fit with its 33 spline driven axle interface. The assembly features a 3-flange bolt hole pattern on a 139.7 mm bolt circle diameter, ensuring compatibility with the vehicle's wheel mounting system. The 5 wheel studs provide secure attachment points for the wheel, while the wheel pilot diameter of 77.72 mm and brake pilot diameter of 78.46 mm ensure proper centering of the wheel and brake components. The hub pilot diameter of 90.04 mm guarantees accurate hub alignment, reducing vibration and improving overall driveline performance. The flange diameter and offset are engineered to maintain correct wheel positioning relative to the suspension and brake system.

Common Applications and Problem Solving

• Replacement for worn or damaged wheel bearing and hub assemblies on Ram 1500 and 1500 Classic
• Eliminates wheel vibration caused by hub misalignment
• Resolves noise issues related to failing wheel bearings
• Restores proper wheel mounting and brake rotor alignment
• Prevents premature wear of driveline components due to faulty hubs

Installation Notes and Tips

• Ensure compatibility with Ram 1500 or 1500 Classic models before installation
• Use proper torque specifications for flange bolts and wheel studs
• Inspect axle splines and clean mating surfaces prior to assembly
• Check for any signs of damage or wear on related suspension components
• Professional installation is recommended to maintain vehicle safety and performance

Quality Assurance and Warranty

Timken manufactures the HA590515 wheel bearing and hub assembly to meet strict quality standards, ensuring durability and reliable performance. This part is backed by Timken's limited warranty against defects in materials and workmanship, providing confidence in your replacement component.
