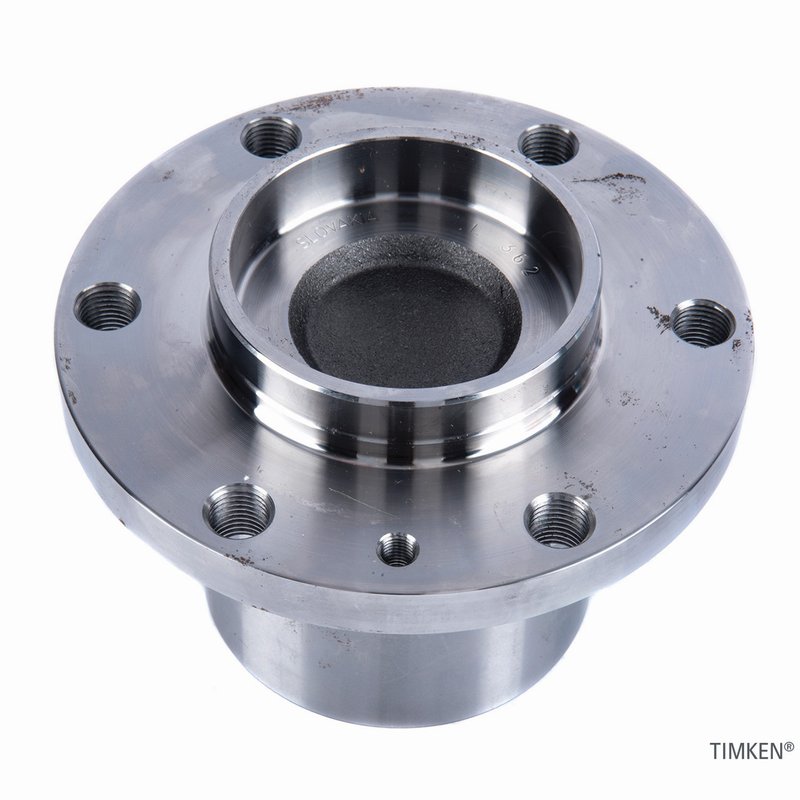

Timken HA590637 Wheel Bearing and Hub Assembly - Front

Front Wheel Hub Assembly for Sprinter and Crafter

Timken HA590637 is a front wheel bearing and hub assembly for driven applications on select Mercedes-Benz Sprinter, Dodge Sprinter, and Volkswagen Crafter Van models. It is built around the hub dimensions and bolt pattern needed for a direct front-end service replacement on the listed vehicles.

• Part number: HA590637
• Driven front wheel bearing and hub assembly
• 33 spline quantity
• 5 wheel studs
• 3 flange bolt holes
• Bolt circle diameter: 110.00 mm / 4.331 in.
• Flange diameter: 137.00 mm / 5.394 in.
• Flange offset: 38.95 mm / 1.533 in.
• Hub pilot diameter: 85.00 mm / 3.346 in.
• Wheel pilot diameter: 64.97 mm / 2.558 in.
• Brake pilot diameter: 65.45 mm / 2.577 in.

Fitment Details

• Fits 2010-2018 Mercedes-Benz Sprinter 2500, front, non-heavy duty suspension; hub assembly only-does not include steering knuckle.
• Fits 2010-2018 Mercedes-Benz Sprinter 3500, front, hub assembly only-does not include steering knuckle.
• Fits 2008-2016 Volkswagen Crafter Van, front, hub assembly only-does not include steering knuckle.
• Fits 2007-2009 Dodge Sprinter 2500, front, non-heavy duty suspension; hub assembly only-does not include steering knuckle.
• Fits 2007-2009 Dodge Sprinter 3500, front, hub assembly only-does not include steering knuckle.

Detailed Description

Timken HA590637 is specified for front axle service on driven Sprinter and Crafter Van platforms where the hub assembly must match the vehicle’s spline count, bolt circle, pilot diameters, and flange dimensions. The 33-spline driven design, 5-stud wheel mounting pattern, and 110 mm bolt circle support the correct interface for the listed Mercedes-Benz Sprinter 2500 and 3500, Dodge Sprinter 2500 and 3500, and Volkswagen Crafter Van applications. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Replacement Reasons

• Front wheel bearing noise or roughness
• Excessive wheel play at the hub
• Vibration or looseness from a worn hub assembly
• Damaged wheel studs or mounting surfaces
• Service replacement on a driven front hub assembly

Installation Notes and Tips

Verify the vehicle is equipped with the listed front suspension configuration before ordering, especially on Mercedes-Benz Sprinter 2500 and Dodge Sprinter 2500 models with non-heavy duty suspension notes. This listing is for the hub assembly only and does not include the steering knuckle, so reuse or source the knuckle separately as needed. Confirm spline count, bolt circle, pilot diameters, and flange offset against the original part before installation.

Quality Assurance

Timken is a recognized name in driveline and hub components, and HA590637 is cataloged to match the specified OE-style dimensions and vehicle applications for accurate front-end service on Sprinter and Crafter Van platforms.
