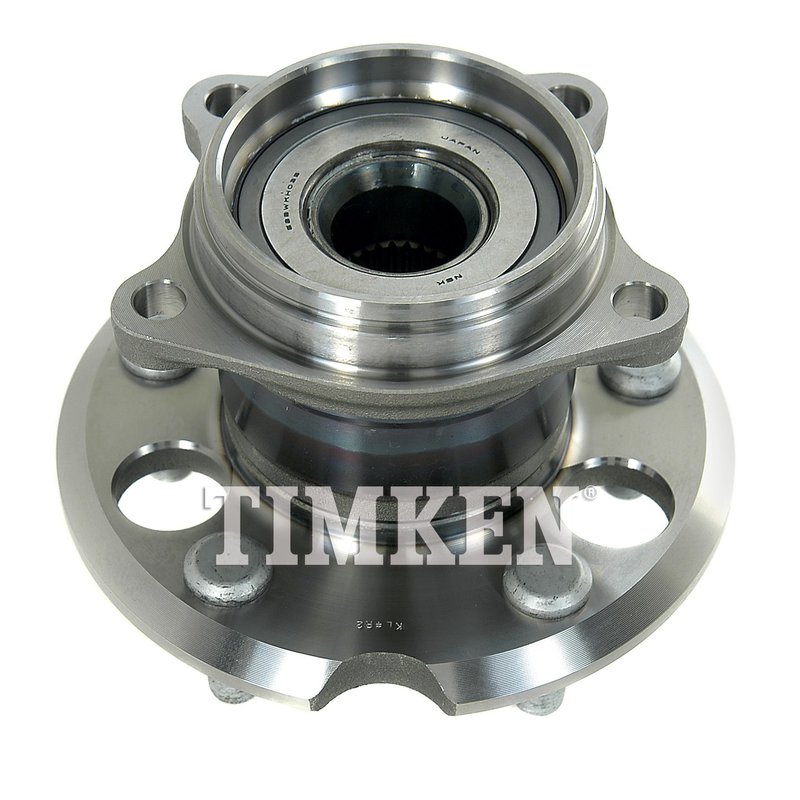

Timken HA594505 Wheel Bearing and Hub Assembly - Rear

Timken HA594505 Wheel Bearing and Hub Assembly Overview

The Timken HA594505 wheel bearing and hub assembly is engineered for reliable performance on Toyota RAV4 models. Designed to meet precise specifications, this driven hub assembly ensures proper fitment and durability for your vehicle's driveline system.

• 26 spline quantity for secure axle engagement
• 4 flange bolt holes for stable mounting
• 5 wheel studs to accommodate compatible wheels
• Wheel pilot diameter of 2.363 inches (60.02 mm) for accurate wheel alignment
• Brake pilot diameter of 3.201 inches (81.30 mm) ensuring proper brake rotor fit
• Hub pilot diameter of 3.302 inches (83.87 mm) for precise hub centering
• Flange offset of 2.717 inches (69.00 mm) to maintain correct wheel positioning
• Flange diameter of 5.983 inches (151.98 mm) for secure attachment
• Bolt circle diameter of 4.494 inches (114.16 mm) matching OEM specifications

Detailed Product Description

This Timken HA594505 wheel bearing and hub assembly is specifically designed for Toyota RAV4 vehicles requiring a driven hub component. The assembly features a 26-spline axle interface, ensuring a secure connection to the drivetrain. With 4 flange bolt holes and 5 wheel studs, it provides a stable mounting platform for wheels and brake components. The precise wheel pilot diameter of 2.363 inches (60.02 mm) and brake pilot diameter of 3.201 inches (81.30 mm) help maintain proper alignment and fitment of wheels and brake rotors. Additionally, the hub pilot diameter of 3.302 inches (83.87 mm) centers the hub accurately on the axle, reducing vibration and wear. The flange offset and diameter are engineered to match OEM specifications, ensuring the wheel assembly maintains correct positioning relative to the suspension and brake system.

Compatible Vehicles and Applications

• Compatible with Toyota RAV4 models requiring a driven wheel bearing and hub assembly
• Designed to replace worn or damaged wheel bearing and hub assemblies
• Ideal for addressing issues such as wheel noise, vibration, or loose wheel fitment
• Suitable for restoring proper wheel alignment and brake rotor positioning

Installation Notes and Tips

• Ensure vehicle is securely lifted and supported before installation
• Verify spline count and bolt pattern match the vehicle’s axle and wheel specifications
• Clean mounting surfaces to remove rust or debris for proper fitment
• Torque flange bolts and wheel studs to manufacturer specifications
• Check wheel bearing preload and adjust if necessary according to Toyota service guidelines

Quality Assurance and Warranty

Timken manufactures the HA594505 wheel bearing and hub assembly to meet strict quality standards, ensuring durability and reliable performance. This part is engineered to OEM specifications for Toyota RAV4 vehicles. While specific warranty details may vary, Timken products typically include a limited warranty against defects in materials and workmanship. Refer to Timken’s official documentation for complete warranty information.
