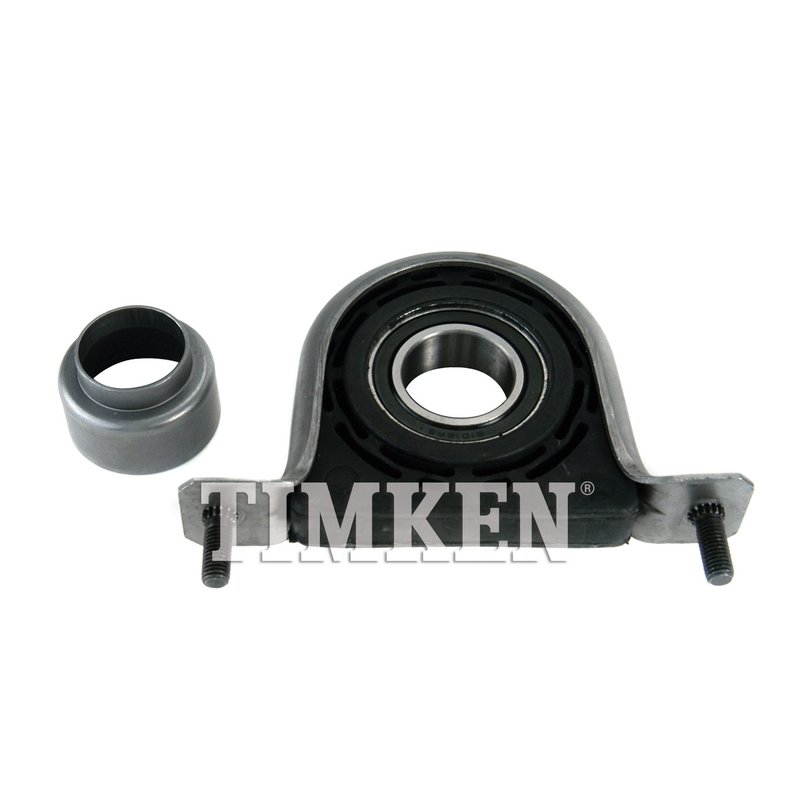

Timken HB4016A Drive Shaft Center Support Bearing

Overview of Timken HB4016A Drive Shaft Center Support Bearing

The Timken HB4016A Drive Shaft Center Support Bearing is engineered for reliable driveline performance in select Chevrolet and GMC vehicles. Designed to meet precise specifications, this bearing supports the drive shaft, reducing vibration and ensuring smooth rotation.

• Bearing inside diameter: 1.574 inches (39.98 mm)
• Bearing outside diameter: 7.756 inches (197.00 mm)
• Bore centerline height: 2.244 inches (57.00 mm)
• Width: 1.850 inches (46.99 mm)
• Compatible with multiple Chevrolet and GMC truck and SUV models

Technical Specifications and Features

The HB4016A features a robust bearing design with an inside diameter of 1.574 inches (39.98 mm) and an outside diameter of 7.756 inches (197.00 mm), providing a precise fit for the drive shaft assembly. The bore centerline height of 2.244 inches (57.00 mm) ensures proper alignment within the driveline system. With a width of 1.850 inches (46.99 mm), this center support bearing maintains stability and reduces wear under demanding driving conditions.

Compatible Chevrolet and GMC Models

This Timken drive shaft center support bearing is compatible with a range of Chevrolet and GMC vehicles, including Avalanche 1500 and 2500, C1500 Suburban, C2500, Express 1500, Jimmy, K1500 and K1500 Suburban, K2500, Savana 1500, Sierra 1500, Sierra 1500 HD, Sierra 2500, Sierra 2500 HD, Sierra 3500, Sierra 3500 HD, Silverado 1500, Silverado 1500 HD, Silverado 2500, Silverado 2500 HD, Silverado 3500, Silverado 3500 HD, Suburban 1500, Suburban 2500, Tahoe, Yukon, Yukon XL 1500, and Yukon XL 2500 models.

Common Applications and Problem Resolution

• Reduces drive shaft vibration and noise
• Prevents premature wear of driveline components
• Maintains proper drive shaft alignment
• Eliminates excessive movement in the driveline
• Supports smooth power transfer from transmission to rear axle

Installation Notes and Tips

When installing the Timken HB4016A, ensure the drive shaft is properly supported and aligned to avoid undue stress on the bearing. Use appropriate tools to press the bearing into place without damaging the rubber isolator or bearing surfaces. Verify the bore centerline height matches the vehicle’s specifications to maintain driveline geometry. It is recommended to inspect related driveline components during installation for wear or damage.

Quality Assurance and Warranty

Timken manufactures the HB4016A Drive Shaft Center Support Bearing to meet stringent quality standards, ensuring durability and consistent performance. This part is backed by Timken’s limited warranty against defects in materials and workmanship, providing confidence in its reliability for Chevrolet and GMC driveline applications.
