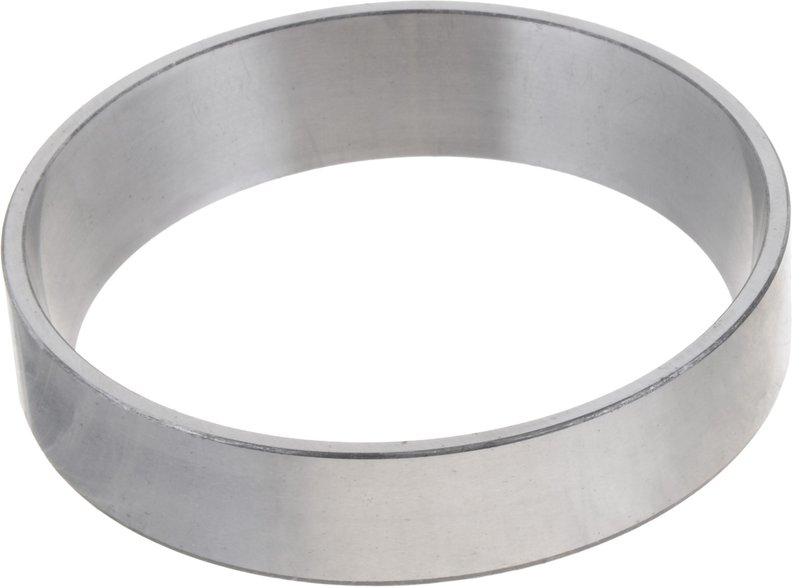

Timken JM716610 Differential Race - Rear, Rear Left or Rear Right

Timken JM716610 Differential Race Overview

The Timken JM716610 differential race is engineered to provide reliable performance in driveline and axle assemblies. Designed with precise dimensions, this bearing race supports smooth differential operation in various vehicle applications, including popular makes and models requiring exact fitment.

• Width options: 0.945 inches and 24.00 millimeters for versatile compatibility
• Outside diameter: 5.118 inches (130.00 millimeters) ensuring proper seating
• Bearing cup radius: 0.098 inches (2.50 millimeters) for accurate bearing fit
• Durable construction suitable for demanding driveline conditions
• Part number JM716610 for easy identification and replacement

Detailed Specifications and Design

The Timken JM716610 differential race features dual width measurements of 0.945 inches and 24.00 millimeters, accommodating specific axle configurations. Its outside diameter measures 5.118 inches (130.00 millimeters), providing a precise fit within the differential housing. The bearing cup radius of 0.098 inches (2.50 millimeters) ensures optimal seating of the bearing cup, reducing wear and maintaining alignment under load. These dimensions are critical for maintaining the integrity and performance of the differential assembly in vehicles such as Ford F-150, Chevrolet Silverado, and Dodge Ram models that require this exact part number.

Applications and Problem Solving

• Replacement for worn or damaged differential races in compatible Ford, Chevrolet, and Dodge trucks
• Addresses issues related to differential noise caused by improper bearing seating
• Helps prevent premature bearing failure due to incorrect race dimensions
• Supports smooth differential gear operation under heavy load conditions
• Restores proper driveline function and vehicle handling stability

Installation Notes and Tips

When installing the Timken JM716610 differential race, ensure the differential housing is clean and free of debris. Use appropriate tools to press the race evenly into place without damaging the bearing surface. Verify the dimensions against the vehicle’s service manual to confirm compatibility. Proper installation will help maintain bearing alignment and extend the service life of the differential components.

Quality Assurance and Warranty

Timken manufactures the JM716610 differential race to meet stringent quality standards, ensuring durability and consistent performance. While specific warranty details are not provided, Timken products typically adhere to industry standards for material and workmanship. Using genuine Timken parts helps maintain the reliability of your vehicle’s driveline system.
