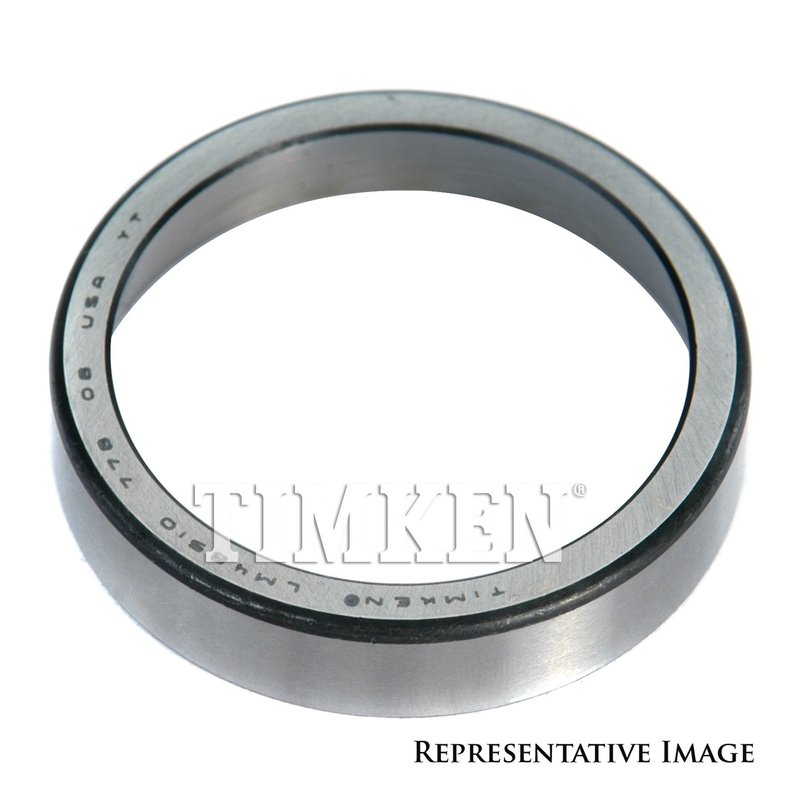

Timken M802011AP Manual Transmission Input Shaft Race - Inner

Reliable Manual Transmission Input Shaft Race for Chevrolet and Dodge Vehicles

The Timken M802011AP manual transmission input shaft race is engineered to meet the precise demands of select Chevrolet, Chrysler, Dodge, and Plymouth models. Designed with exacting dimensions, this component ensures smooth operation and durability within your vehicle's manual transmission system.

• Outside diameter options: 3.250 inches (82.55 mm)
• Width measurements: 0.795 inches and 20.19 mm
• Bearing cup radius: 0.051 inches and 1.30 mm
• Compatible with multiple truck and sedan models including Ram 1500, Concorde, and Intrepid
• Part number M802011AP for precise identification and fitment

Detailed Specifications and Design Features

The Timken M802011AP input shaft race features dual width measurements reflecting its design tolerances and fitment requirements, with widths of 0.795 inches and 20.19 mm. The outside diameter is specified at 3.250 inches (82.55 mm), providing a precise fit within the manual transmission assembly. Additionally, the bearing cup radius is engineered at 0.051 inches (1.30 mm), contributing to the component's ability to maintain proper bearing alignment and reduce wear. These specifications are critical for maintaining transmission integrity and ensuring consistent performance across compatible vehicles.

Compatible Vehicles and Applications

This manual transmission input shaft race is compatible with a range of Chevrolet, Chrysler, Dodge, and Plymouth models, including but not limited to:

• Chevrolet C2500, K2500, and W250 trucks
• Dodge Ram 1500, 2500, and 3500 series
• Chrysler Concorde, Intrepid, and LHS sedans
• Plymouth New Yorker and Prowler
• Ram D150, D250, and D350 trucks

Common Issues Addressed by the Input Shaft Race

• Excessive bearing wear causing transmission noise
• Misalignment of input shaft bearings leading to gear engagement problems
• Premature transmission component failure due to improper bearing seating
• Vibration and rough shifting in manual transmissions
• Leakage or damage caused by worn bearing surfaces

Installation Notes and Tips

When installing the Timken M802011AP input shaft race, ensure the transmission is clean and free of debris. Proper seating of the race is essential to avoid premature wear; use appropriate tools to press the race evenly into place without damaging the bearing surfaces. Verify fitment against the vehicle’s service manual to confirm compatibility with your specific Chevrolet, Dodge, Chrysler, or Plymouth model.

Quality Assurance and Warranty

Timken manufactures the M802011AP input shaft race to meet stringent quality standards, ensuring reliable performance in manual transmission systems. While specific warranty details are not provided, Timken products are generally backed by the brand’s commitment to durability and precision engineering.
