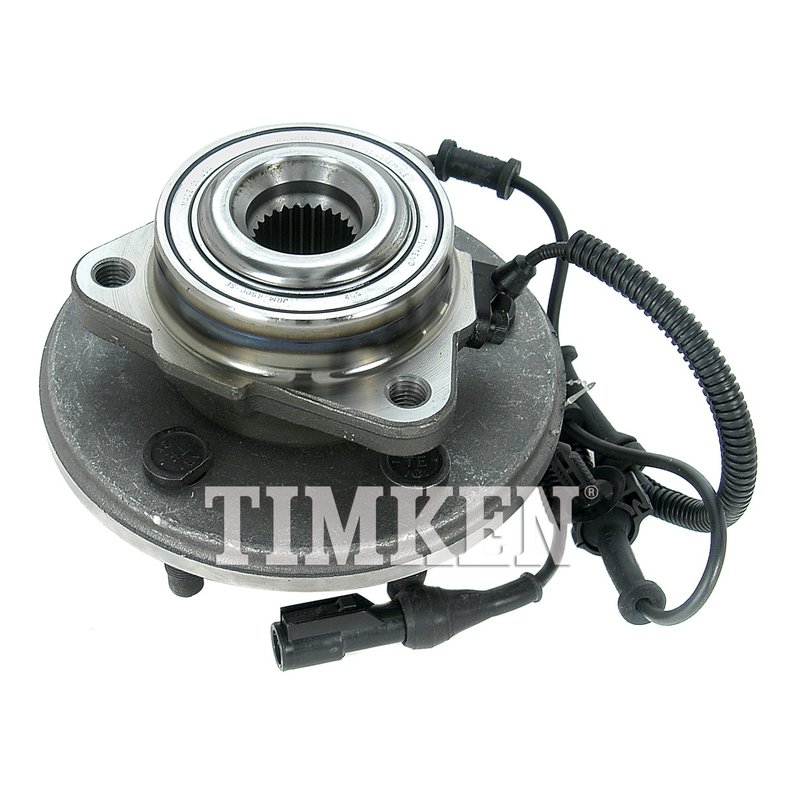

Timken SP470200 Wheel Bearing and Hub Assembly - Front

Timken SP470200 Wheel Bearing and Hub Assembly Overview

The Timken SP470200 wheel bearing and hub assembly is engineered for reliable driveline performance in Ford, Lincoln, and Mercury vehicles. Designed specifically for models like the Explorer, Aviator, and Mountaineer, this assembly ensures precise fitment and durability.

• 27 spline quantity for secure axle engagement
• 3 flange bolt holes with a 160 mm flange diameter
• 5 wheel studs for stable wheel mounting
• Wheel pilot diameters of 2.776 inches (70.51 mm) for accurate wheel alignment
• Brake pilot diameters of 3.226 inches (81.94 mm) to support brake component fitment
• Hub pilot diameters of 3.350 inches (85.08 mm) for proper hub centering
• Flange offset of 1.927 inches (48.95 mm) to maintain correct wheel positioning
• Bolt circle diameter of 114.30 mm (4.5 inches) matching OEM specifications
• Designed for driven axle applications

Technical Details and Compatibility

The Timken SP470200 is a wheel bearing and hub assembly tailored for driven axles, featuring a 27-spline design that matches the axle shaft for secure torque transfer. The assembly includes a 3-hole flange with a 160 mm diameter, supporting a 5-stud wheel configuration. Its precise wheel pilot diameters of 2.776 inches (70.51 mm) and brake pilot diameters of 3.226 inches (81.94 mm) ensure proper alignment of wheels and brake components, reducing vibration and wear. The hub pilot diameter of 3.350 inches (85.08 mm) centers the hub accurately on the axle, while the flange offset of 1.927 inches (48.95 mm) maintains correct wheel positioning relative to the suspension and steering geometry. This assembly is compatible with Ford Explorer, Lincoln Aviator, and Mercury Mountaineer models, providing a direct replacement for OEM parts.

Common Applications and Problem Resolution

• Replacement for worn or damaged wheel bearing and hub assemblies
• Eliminates wheel vibration and noise caused by bearing failure
• Restores proper wheel alignment and brake component fitment
• Addresses issues with uneven tire wear due to hub misalignment
• Supports driveline integrity on driven axle configurations

Installation Notes and Tips

When installing the Timken SP470200, ensure the axle spline count matches the 27-spline design for proper engagement. Verify the flange bolt hole pattern and bolt circle diameter (114.30 mm) align with the vehicle’s hub mounting surface. Use appropriate torque specifications for flange bolts and wheel studs to avoid premature wear. Inspect brake pilot diameters to confirm compatibility with existing brake rotors or drums. Proper hub centering using the 3.350-inch hub pilot diameter is critical to prevent vibration and ensure smooth operation.

Quality Assurance and Warranty

Timken manufactures the SP470200 wheel bearing and hub assembly to meet or exceed OEM standards for durability and performance. Each unit undergoes rigorous quality control to ensure precision fit and long service life. This product is backed by Timken’s limited warranty, covering defects in materials and workmanship under normal use conditions.
