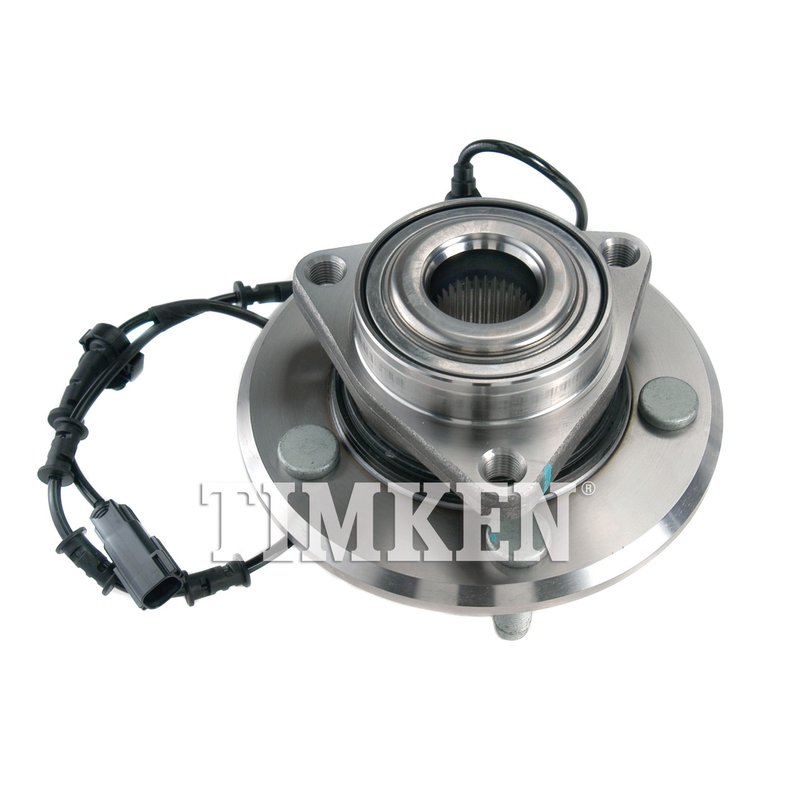

Timken SP500100 Wheel Bearing and Hub Assembly - Front or Front Left
| Brand | Timken SP500100 |
|---|---|
| Position | Front |
| Fits | Dodge · 18 vehicles |
OE-developed testing. Controls design, materials, and manufacturing for consistent performance.
Low runout. Helps reduce noise and vibration while improving braking performance.
Premium seals. Reinforced construction helps prevent damage and promotes positive sealing.
Cross-references MOOG Hub Assemblies 515073 and SKF BR930285 for the same application. See all 2.
Timken SP500100 Wheel Bearing Hub Assembly
Timken SP500100 is a front wheel bearing and hub assembly built for select Dodge Ram 1500 applications. It is engineered for driven front positions and uses OE-developed testing, precision bearing geometry, and low-runout construction to support smoother operation, reduced noise, and stable braking feel.
Key Features
- Fits 2002-2006 Dodge Ram 1500, front
- Fits 2004-2005 Dodge Ram 1500, front left
- Driven hub assembly with 33 splines
- 5 wheel studs and 3 flange bolt holes
- 5.500 bolt circle diameter and 7.217 flange diameter
- Hub pilot diameter: 3.545 in. (90.04 mm)
- Wheel pilot diameter: 3.061 in. (77.76 mm)
- Brake pilot diameter: 3.087 in. (78.42 mm)
- Low runout design to reduce noise and vibration
- ABS sensor is 100% tested for wheel-speed monitoring
Detailed Description
Timken SP500100 hub bearing assembly is built for front-end service on the Dodge Ram 1500, including 2002-2006 front applications and 2004-2005 front left coverage. The assembly uses premium bearings with precision profiles, uniform internal geometry, and enhanced surface finishes to support load capacity, bearing life, and fuel efficiency. Reinforced sealing features help protect the bearing from contamination and installation damage, while the integrated ABS sensor is tested to monitor wheel speed for anti-lock braking systems. This part cross-references SKF BR930285 for the same application.
Common Problems This Part Can Address
- Front wheel bearing noise or growling
- Excess wheel play or looseness at the hub
- ABS warning light caused by wheel-speed signal issues
- Brake vibration related to hub runout
- Uneven front-end feel during driving or braking
Installation Notes and Tips
Verify spline count, bolt circle diameter, flange offset, and pilot dimensions before installation. Confirm whether your Dodge Ram 1500 needs the front or front left application listed above, and inspect the mating surfaces, axle splines, and ABS connector condition during replacement. Proper torque procedures and clean mounting surfaces are important for accurate hub seating and long-term performance. Timken SP500100 is also referenced by MOOG Hub Assemblies 515073.
Quality Assurance
Timken uses OE-developed testing to control the design, materials, and manufacturing process for its hub bearing assemblies. That process supports consistent performance, and the ABS sensor is individually tested for wheel-speed monitoring.
| Year | Make | Model | Submodel | Body Type | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|
| 2006 | Dodge | Ram 1500 | SLT | — | RWD | — | — | Front | — |
| 2006 | Dodge | Ram 1500 | ST | — | RWD | — | — | Front | — |
| 2005 | Dodge | Ram 1500 | — | — | RWD | 5.7L | V8 | Front Left | — |
| 2005 | Dodge | Ram 1500 | — | — | RWD | — | — | Front | — |
| 2005 | Dodge | Ram 1500 | — | — | 4WD | 5.7L | V8 | Front Left | — |
| 2005 | Dodge | Ram 1500 | — | Crew Cab Pickup | 4WD | — | — | Front | — |
| 2005 | Dodge | Ram 1500 | — | Standard Cab Pickup | 4WD | — | — | Front | — |
| 2004 | Dodge | Ram 1500 | — | — | RWD | 5.7L | V8 | Front Left | — |
| 2004 | Dodge | Ram 1500 | — | — | RWD | — | — | Front | — |
| 2004 | Dodge | Ram 1500 | — | — | 4WD | 5.7L | V8 | Front Left | — |
| 2004 | Dodge | Ram 1500 | — | Crew Cab Pickup | 4WD | — | — | Front | — |
| 2004 | Dodge | Ram 1500 | — | Standard Cab Pickup | 4WD | — | — | Front | — |
| 2003 | Dodge | Ram 1500 | — | — | RWD | — | — | Front | — |
| 2003 | Dodge | Ram 1500 | — | Crew Cab Pickup | 4WD | — | — | Front | — |
| 2003 | Dodge | Ram 1500 | — | Standard Cab Pickup | 4WD | — | — | Front | — |
| 2002 | Dodge | Ram 1500 | — | — | RWD | — | — | Front | — |
| 2002 | Dodge | Ram 1500 | — | Crew Cab Pickup | 4WD | — | — | Front | — |
| 2002 | Dodge | Ram 1500 | — | Standard Cab Pickup | 4WD | — | — | Front | — |
