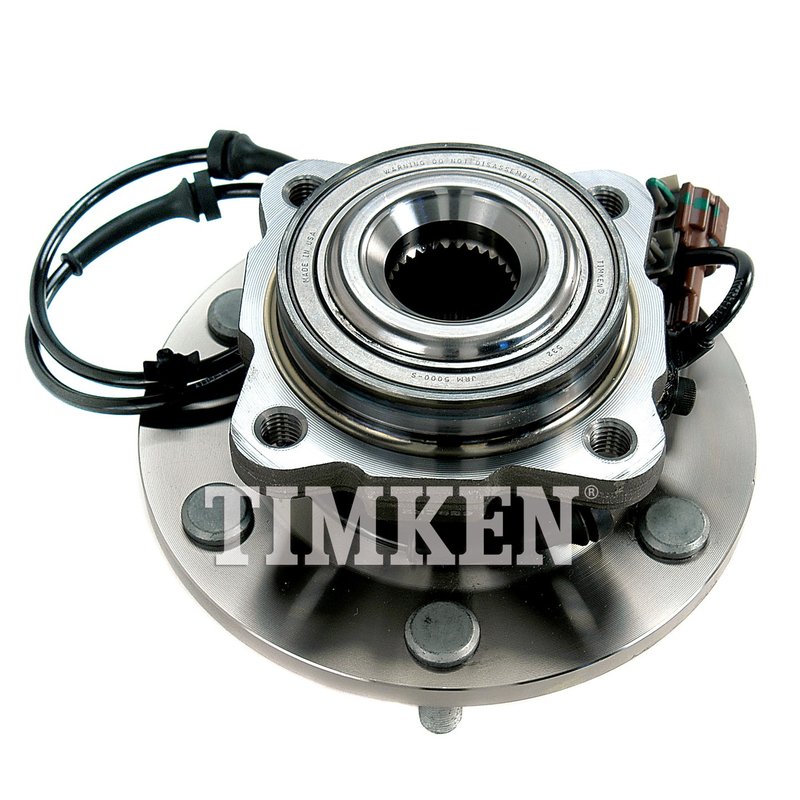

Timken SP500702 Wheel Bearing and Hub Assembly - Rear

Timken Wheel Bearing and Hub Assembly Overview

The Timken SP500702 wheel bearing and hub assembly is engineered for reliable performance in Nissan and INFINITI vehicles. Designed specifically for models like the Armada, Pathfinder Armada, and QX56, this assembly ensures precise fitment and durability for your driveline system.

• 32 spline quantity for secure drivetrain engagement
• 6 wheel studs for stable wheel mounting
• 4 flange bolt holes with a 5.5-inch bolt circle diameter
• Wheel pilot diameter of 3.059 inches (77.70 mm) for accurate wheel alignment
• Brake pilot diameter of 3.230 inches (82.04 mm) to support brake component fitment
• Hub pilot diameter of 3.500 inches (89.04 mm) for proper hub centering
• Flange diameter of 6.750 inches (171.50 mm) with a flange offset of 2.234 inches (56.74 mm)
• Designed for driven axle applications

Detailed Product Description

The Timken SP500702 wheel bearing and hub assembly is a critical component in the driveline and axles category, specifically designed for driven axles on select Nissan and INFINITI models. This assembly features a 32-spline interface that ensures a secure connection to the axle shaft, while the 6 wheel studs provide a stable mounting surface for the wheel. The flange includes 4 bolt holes arranged on a 5.5-inch bolt circle diameter, matching factory specifications for the Armada, Pathfinder Armada, and QX56.

Precision measurements such as the 3.059-inch wheel pilot diameter and 3.230-inch brake pilot diameter ensure proper alignment of wheels and brake components, reducing vibration and wear. The hub pilot diameter of 3.500 inches centers the hub accurately on the axle, contributing to smooth rotation and extended bearing life. The flange diameter and offset are engineered to maintain correct wheel positioning relative to the suspension and brake system.

Compatible Vehicles and Applications

• INFINITI QX56
• Nissan Armada
• Nissan Pathfinder Armada

This wheel bearing and hub assembly is designed to replace worn or damaged units on these specific models, restoring driveline integrity and wheel stability.

Common Issues Addressed by This Assembly

• Wheel bearing noise or roughness during rotation
• Excessive wheel play or looseness
• Uneven tire wear due to misalignment
• Brake rotor wobble caused by hub runout
• Vibration or shimmy at higher speeds

Installation Notes and Tips

Proper installation of the Timken SP500702 requires attention to torque specifications for flange bolts and wheel studs. Ensure the hub pilot seats fully on the axle to avoid misalignment. It is recommended to inspect related components such as axle shafts and brake rotors during replacement. Use appropriate tools to avoid damage to the bearing assembly and confirm that the spline count matches the axle shaft.

Quality Assurance and Warranty

Timken manufactures this wheel bearing and hub assembly to meet OEM standards for fit, form, and function. The SP500702 is built with high-quality materials and precision engineering to provide reliable service life. Timken typically offers a limited warranty covering defects in materials and workmanship, ensuring confidence in the product's durability and performance.
