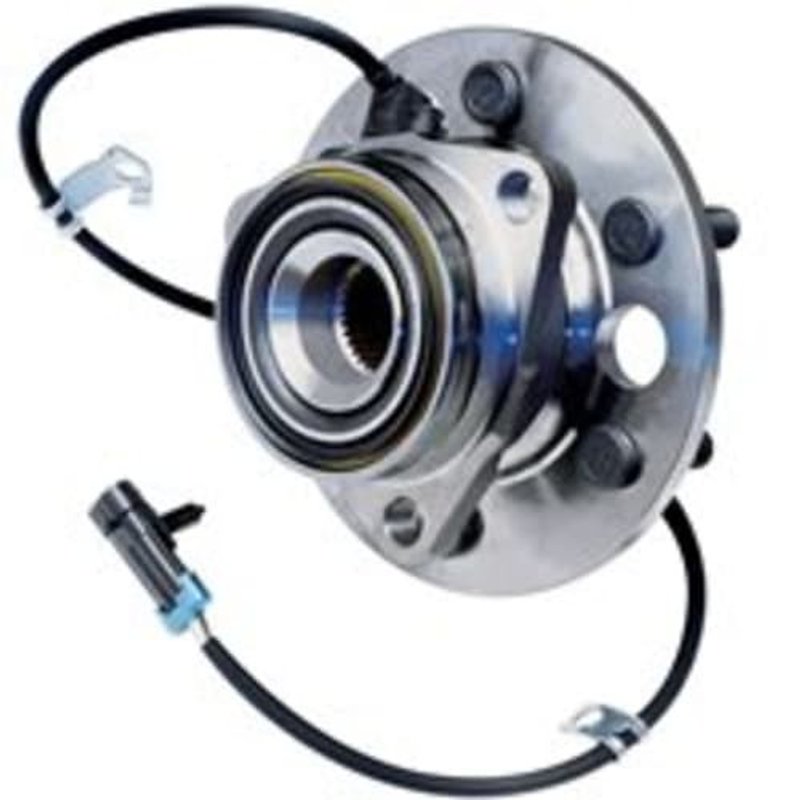

Timken SP500705 Wheel Bearing and Hub Assembly - Front

Timken SP500705 Wheel Bearing and Hub Assembly Overview

The Timken SP500705 wheel bearing and hub assembly is engineered for reliable driveline performance in Nissan Armada and TITAN models. Designed to meet precise specifications, this assembly ensures proper fitment and durability for your vehicle's driven axle.

• 29 spline quantity for secure axle engagement
• 3 flange bolt holes for stable mounting
• 6 wheel studs to accommodate standard wheel configurations
• Wheel pilot diameter of 3.058 inches (77.67 mm) for accurate wheel alignment
• Brake pilot diameter of 3.545 inches (90.00 mm) to support brake component fitment
• Hub pilot diameter of 3.504 inches (89.00 mm) for precise hub centering
• Flange offset of 1.787 inches (45.40 mm) to maintain proper wheel positioning
• Flange diameter of 6.732 inches (171.00 mm) for compatibility with OEM components
• Bolt circle diameter of 5.500 inches (139.70 mm) matching factory specifications
• Designed for driven axle applications

Detailed Product Description

The Timken SP500705 wheel bearing and hub assembly is specifically designed for Nissan Armada and TITAN vehicles, providing a direct replacement that meets factory standards. The 29 spline quantity ensures a secure connection to the axle shaft, while the 3 flange bolt holes and 6 wheel studs provide a stable mounting platform for the wheel and brake components. The precise wheel pilot diameter of 3.058 inches (77.67 mm) and brake pilot diameter of 3.545 inches (90.00 mm) help maintain proper alignment and fitment of wheels and brakes, reducing vibration and wear. The hub pilot diameter of 3.504 inches (89.00 mm) centers the hub accurately on the axle, contributing to smooth rotation and extended component life. With a flange offset of 1.787 inches (45.40 mm) and flange diameter of 6.732 inches (171.00 mm), this assembly matches OEM dimensions to ensure compatibility and performance. The bolt circle diameter of 5.500 inches (139.70 mm) aligns with factory bolt patterns for straightforward installation.

Common Applications and Problem Resolution

• Replacement for worn or damaged wheel bearing and hub assemblies on Nissan Armada and TITAN
• Eliminates wheel vibration caused by bearing wear or hub misalignment
• Resolves noise issues such as humming or grinding from the wheel area
• Restores proper wheel and brake component alignment for improved safety
• Addresses axle spline wear affecting driveline engagement

Installation Notes and Tips

Ensure the vehicle is securely lifted and supported before beginning installation. Verify that the spline count (29 splines) matches the axle shaft. Clean the mounting surface thoroughly to remove debris and corrosion. Torque flange bolts and wheel studs to manufacturer specifications to avoid premature wear. Inspect related components such as brake rotors and calipers during installation for optimal performance.

Quality Assurance and Warranty

Timken manufactures the SP500705 wheel bearing and hub assembly to meet strict quality standards, ensuring durability and reliable performance. This part is engineered to OEM specifications for Nissan Armada and TITAN models. Warranty coverage details should be confirmed with the original Timken documentation or authorized distributors.
