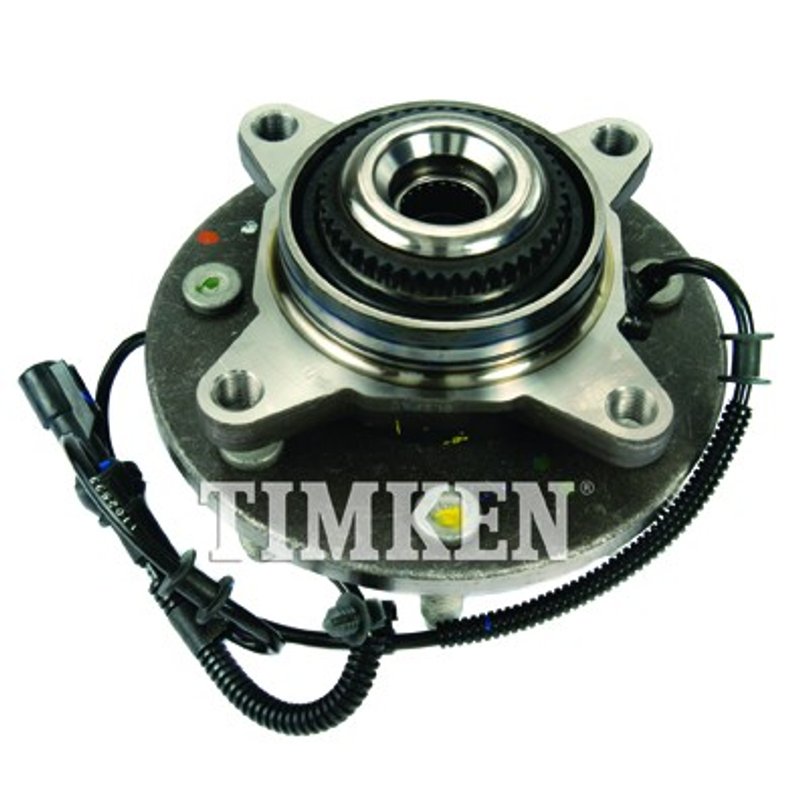

Timken SP550213 Wheel Bearing and Hub Assembly - Front

Timken SP550213 Wheel Bearing and Hub Assembly Overview

The Timken SP550213 wheel bearing and hub assembly is engineered for reliable performance on Ford F-150 trucks. Designed to meet precise specifications, this driven hub assembly ensures proper fitment and durability for your vehicle's driveline system.

• 45 spline quantity for secure drivetrain connection
• 4 flange bolt holes with a 150 mm (5.906 inch) bolt circle diameter
• 7 wheel studs for stable wheel mounting
• Wheel pilot diameter of 86.80 mm (3.417 inches) and brake pilot diameter of 90.03 mm (3.544 inches)
• Hub pilot diameter of 99.34 mm (3.911 inches) for accurate hub alignment
• Flange diameter of 190 mm (7.480 inches) with a flange offset of 46.00 mm (1.811 inches)
• Designed as a driven hub for optimal power transfer

Detailed Product Description

The Timken SP550213 is a wheel bearing and hub assembly specifically designed for the Ford F-150, providing a precise fit and reliable operation. The assembly features a 45 spline driven design that ensures efficient torque transfer from the drivetrain to the wheels. Its 4 flange bolt holes and 7 wheel studs provide a secure mounting platform, while the carefully engineered pilot diameters for the wheel, brake, and hub ensure proper alignment and reduce vibration. The flange diameter and offset are optimized to maintain correct wheel positioning and suspension geometry, contributing to vehicle stability and safety.

Compatible Vehicles and Applications

This wheel bearing and hub assembly is compatible with Ford F-150 models requiring a driven hub with the following specifications:

• 45 spline driven hub
• 4 flange bolt holes with 150 mm bolt circle diameter
• 7 wheel studs
• Wheel pilot diameter approximately 86.80 mm

Common Issues Addressed by Timken SP550213

• Wheel bearing noise or roughness during driving
• Excessive wheel play or looseness
• Vibration or wobbling at the wheel
• Uneven tire wear due to hub misalignment
• Failure of original hub assembly components

Installation Notes and Tips

• Ensure vehicle is securely lifted and supported before installation
• Verify spline count and bolt pattern match the vehicle specifications
• Clean mounting surfaces to prevent contamination and ensure proper fit
• Torque flange bolts and wheel studs to manufacturer specifications
• Inspect related components such as axle shafts and brake parts during installation

Quality Assurance and Warranty

Timken manufactures the SP550213 wheel bearing and hub assembly to meet strict quality standards, ensuring durability and performance. While specific warranty details may vary, Timken products typically come with a limited warranty against defects in materials and workmanship. Refer to Timken's official documentation for complete warranty information.
