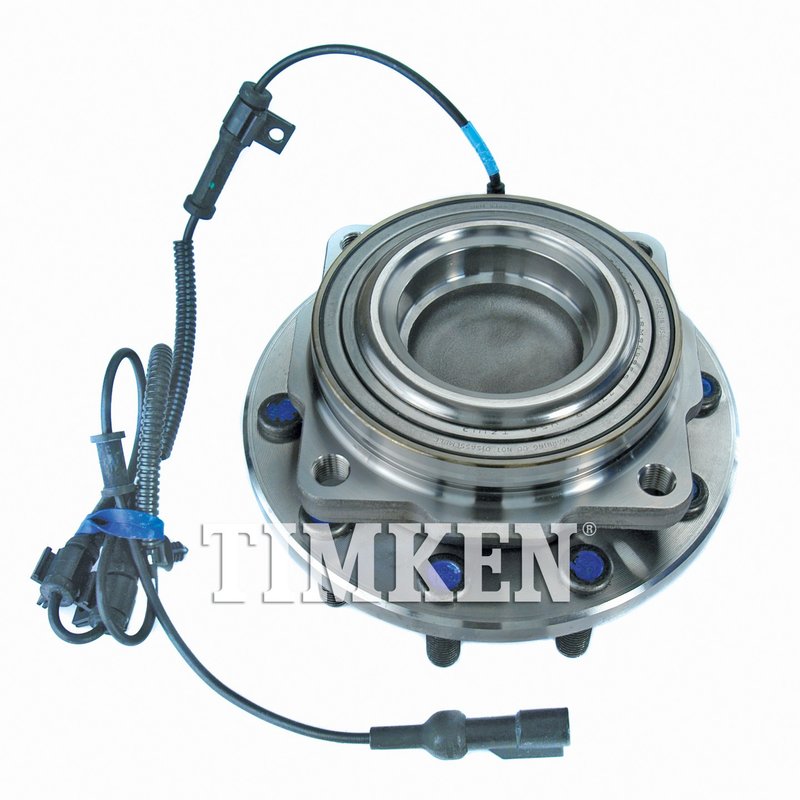

Timken SP940203 Wheel Bearing and Hub Assembly - Front

Timken SP940203 Wheel Bearing and Hub Assembly Overview

The Timken SP940203 wheel bearing and hub assembly is engineered for reliable performance in non-driven axle applications. Designed with precise flange and pilot diameters, this assembly supports secure wheel mounting and optimal brake alignment for various vehicle makes and models.

• Flange bolt hole quantity: 4 for secure attachment
• Wheel pilot diameter: 125.00 mm (4.921 inches) ensuring accurate wheel centering
• Brake pilot diameter: 129.05 mm (5.081 inches) for proper brake rotor fitment
• Wheel stud quantity: 10 for enhanced wheel stability
• Hub pilot diameter: 140.04 mm (5.513 inches) for precise hub alignment
• Flange offset: 1.831 inches (46.50 mm) to maintain correct wheel positioning
• Flange diameter: 203.00 mm (7.992 inches) supporting robust wheel mounting
• Bolt circle diameter: 170.00 mm (6.693 inches) matching specific vehicle bolt patterns
• Drive type: Non-driven axle application

Detailed Product Description

The Timken SP940203 is a wheel bearing and hub assembly designed to meet the exacting standards required for non-driven axle setups. Its 10-wheel stud configuration and 4-flange bolt holes provide a secure and stable connection between the wheel and hub. The assembly’s multiple pilot diameters ensure compatibility with both wheel and brake components, facilitating proper alignment and reducing vibration. The flange offset and diameter are engineered to maintain the correct wheel positioning relative to the suspension and brake system, which is critical for vehicle safety and handling.

Compatible Vehicles and Applications

This wheel bearing and hub assembly is compatible with a range of vehicles requiring a non-driven axle hub with a 10-lug wheel stud pattern and specific flange and pilot dimensions. It is commonly used in trucks and SUVs where precise fitment is essential for wheel and brake system integrity. The part number SP940203 is referenced for fitment in applications requiring a 170 mm bolt circle diameter and a 203 mm flange diameter.

• Resolves wheel vibration and noise issues caused by worn bearings
• Addresses wheel hub looseness and play affecting steering stability
• Corrects brake rotor misalignment due to damaged hub pilots
• Prevents premature wheel stud failure and wheel detachment risks
• Supports proper wheel mounting on non-driven axles with 10-lug configurations

Installation Notes and Tips

Ensure the vehicle is securely lifted and supported before beginning installation. Clean the hub mounting surface thoroughly to remove rust and debris. Verify that the flange bolt holes and wheel studs align correctly with the vehicle’s wheel and brake components. Use a calibrated torque wrench to tighten flange bolts and wheel studs to manufacturer specifications to avoid over-tightening or under-tightening. Inspect the assembly for smooth rotation and absence of play after installation.

Quality Assurance and Warranty

Timken manufactures the SP940203 wheel bearing and hub assembly to meet industry standards for durability and performance. While specific warranty details should be confirmed with the supplier, Timken products typically come with a limited warranty covering defects in materials and workmanship. This ensures confidence in the product’s reliability for professional automotive repair and maintenance.
