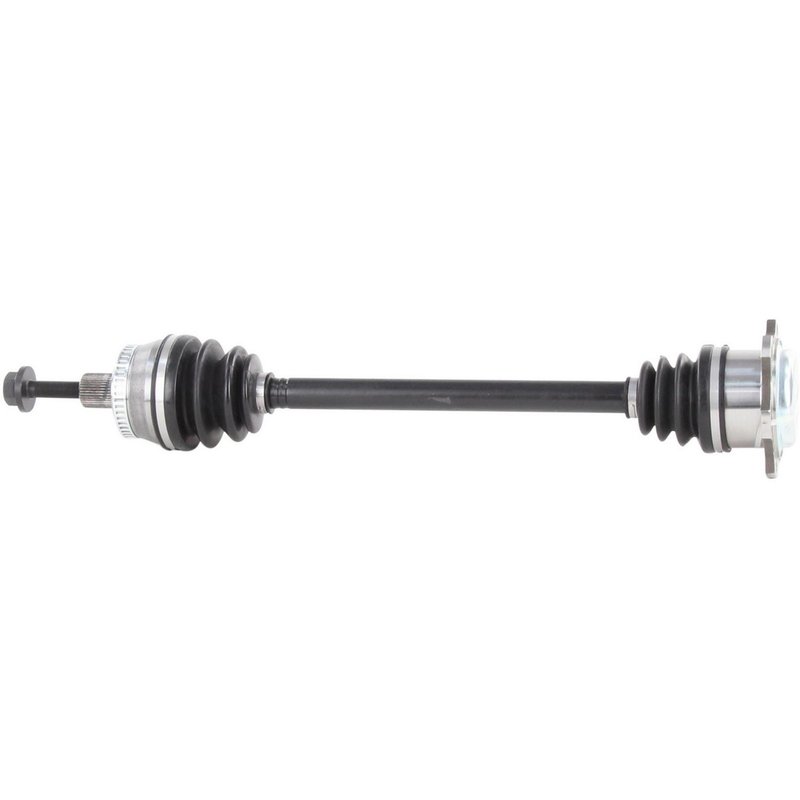

TrakMotive AD-8003 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft AD-8003

The TrakMotive CV Axle Shaft AD-8003 is engineered for reliable driveline performance in select Audi and Volkswagen vehicles. Designed to meet OEM specifications, this new axle shaft ensures precise fitment and durability for models including the Audi 4000, A4, and Volkswagen Passat.

• Abs ring with 45 teeth and window type for accurate wheel speed sensing
• Includes ABS tone ring for enhanced anti-lock braking system functionality
• Neoprene boot material for superior resistance to wear and environmental factors
• Flange type inboard joint and flange shaft connection style for secure installation
• Outboard joint and shaft connection use Audi style spline bolt with 38 splines
• Axle bolt specifications: 27mm hex size, 97mm length, M16*1.5 thread size
• Overall compressed length of 602mm (23.7 inches) for exact fitment

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering new, high-quality constant velocity axle shafts designed to restore driveline integrity. This line emphasizes precise engineering with features such as ABS tone rings and durable neoprene boots, ensuring compatibility with specific Audi and Volkswagen models. The AD-8003 part exemplifies this approach by combining OEM-style joints and connection methods for dependable performance.

Technical Description and Features

This CV axle shaft is a new component built to replace worn or damaged axles in compatible vehicles. The inclusion of a 45-tooth ABS ring with a window type design and an ABS tone ring supports accurate wheel speed data transmission to the vehicle’s ABS system. The neoprene boot protects the joint from contaminants and extends service life. The inboard joint uses a flange type connection, while the outboard joint features an Audi style spline bolt with 38 splines, matching factory specifications. Axle bolts are not included, but the shaft accepts bolts with a 27mm hex size, 97mm length, and M16*1.5 thread size. The overall compressed length of 602mm ensures proper fitment in Audi 4000, A4, and Volkswagen Passat models.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts causing vibration or noise
• Restores proper ABS sensor function with included ABS tone ring
• Eliminates grease leaks from torn or degraded boots
• Corrects driveline binding or clicking during turns
• Addresses axle shaft failure due to joint wear or spline damage

Installation Notes and Tips

• Verify vehicle compatibility with Audi 4000, A4, or Volkswagen Passat models before installation
• Use appropriate axle bolts with 27mm hex size and M16*1.5 thread for secure mounting
• Inspect surrounding suspension and driveline components during replacement
• Ensure proper torque specifications are followed for axle bolts
• Check ABS sensor connections after installation to confirm functionality

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft AD-8003 is a new, remanufactured-free part designed to meet or exceed OEM standards. It includes an ABS tone ring and durable neoprene boot to maintain long-term performance. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliability and fitment for Audi and Volkswagen vehicles.
