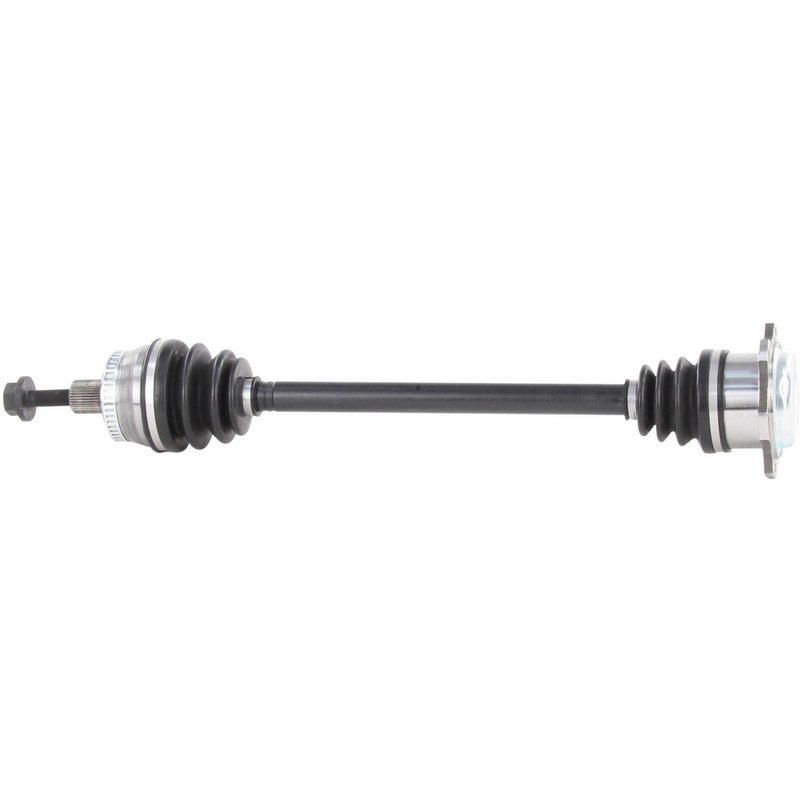

TrakMotive AD-8004 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft AD-8004

The TrakMotive CV Axle Shaft AD-8004 is designed for reliable driveline performance in select Audi and Volkswagen vehicles. Engineered to meet OEM specifications, this new axle shaft ensures proper fit and function for models including the Audi 4000, A4, and Volkswagen Passat.

• Brand: TrakMotive
• Brand Line: CV Axle Shaft
• Part Number: AD-8004
• Compatible with Audi 4000, A4 and Volkswagen Passat
• Overall compressed length: 625 mm (24.61 in)
• ABS ring with 45 window-type teeth included
• Neoprene boot material for durability
• Inboard joint type: flange with 1 bolt hole
• Outboard joint type: Audi style spline bolt with 38 splines
• Axle bolt specifications: 27 mm hex size, 97 mm length, M16*1.5 thread size

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components tailored for European vehicles. This line emphasizes compatibility with specific vehicle models and incorporates features such as ABS tone rings and durable neoprene boots to maintain performance and safety. The AD-8004 model exemplifies this approach by integrating an ABS window-type ring and flange-style inboard joint for secure installation and reliable operation.

Technical Description and Features

The AD-8004 CV axle shaft is a new, not remanufactured, component designed to replace worn or damaged axles in compatible Audi and Volkswagen models. It features a 45-tooth ABS ring with a window design that works with the vehicle’s anti-lock braking system. The neoprene boot material provides resistance to environmental factors, helping to protect the joint from contaminants and extend service life. The inboard joint uses a flange connection style with a single bolt hole, while the outboard joint employs an Audi style spline bolt with 38 splines, ensuring a secure fit. Axle bolts are sized with a 27 mm hex, 97 mm length, and M16*1.5 thread, though the axle nut is not included.

Common Applications and Problem Resolution

• Replacement of worn or damaged CV axle shafts on Audi 4000, A4, and Volkswagen Passat
• Restoring proper ABS sensor function with included ABS tone ring
• Eliminating axle vibration or clicking noises during turns
• Addressing grease leaks caused by torn or degraded boots
• Improving driveline stability and vehicle handling

Installation Notes and Tips

When installing the TrakMotive AD-8004 CV axle shaft, ensure the vehicle is securely lifted and supported. Verify compatibility with the specific Audi or Volkswagen model before beginning. Use the correct torque specifications for the axle bolts (27 mm hex, M16*1.5 thread) and confirm the flange and spline connections are properly seated. Since the axle nut is not included, source the appropriate nut separately. Inspect the neoprene boot for any damage during installation to maintain joint protection.

Quality Assurance and Warranty

This CV axle shaft is manufactured new to meet or exceed OEM standards for fit and function. The inclusion of an ABS tone ring and durable boot material supports long-term reliability. Warranty coverage details should be confirmed with the distributor or manufacturer, as they may vary by region or purchase source.
