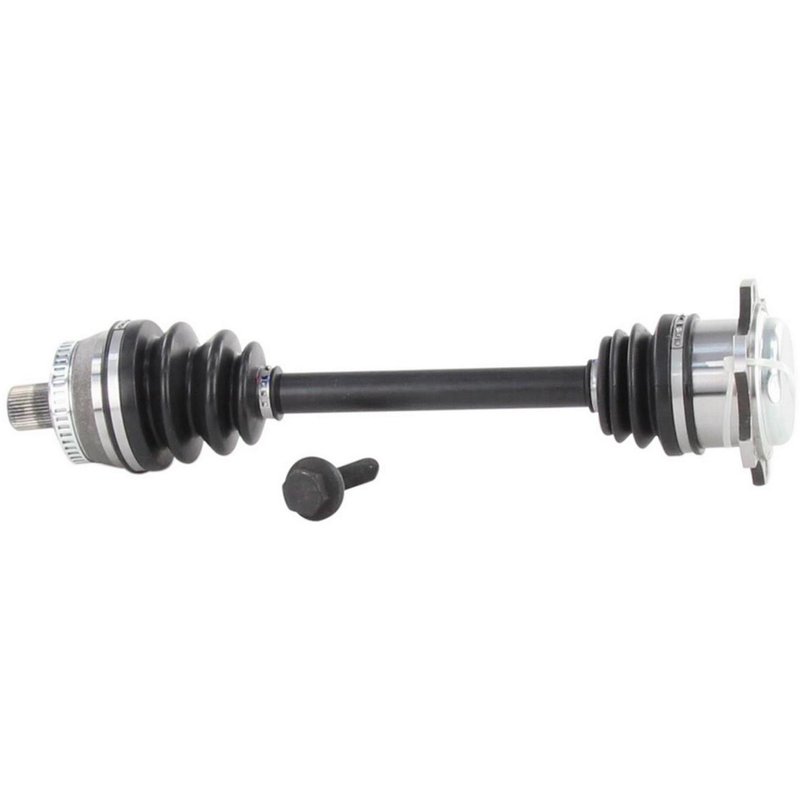

TrakMotive AD-8006 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft AD-8006

The TrakMotive CV Axle Shaft AD-8006 is engineered for reliable driveline performance in Audi and Volkswagen vehicles. Designed specifically for models like the Audi A4, S4, and Volkswagen Passat, this new axle shaft ensures precise fitment and durability.

• Compatible with Audi A4, S4 and Volkswagen Passat
• New CV Axle Shaft with OEM-style flange and spline connections
• Neoprene boot material for enhanced durability
• Includes ABS tone ring with 45 window-type teeth
• Axle bolt specifications: 27mm hex size, 97mm length, M16*1.5 thread
• Overall compressed length of 501.5 mm (19.74 inches)
• Outboard joint features Audi style spline bolt with 38 splines

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering direct-fit replacement components for driveline and axle systems. This line emphasizes compatibility with specific vehicle makes and models, ensuring that each CV axle shaft meets the mechanical and dimensional requirements of the original equipment. The AD-8006 model exemplifies this approach by incorporating precise flange and spline connection styles tailored for Audi and Volkswagen applications.

Technical Description and Features

The AD-8006 CV Axle Shaft is a new, not remanufactured, component designed to restore driveline integrity. It features a neoprene boot that resists wear and environmental damage, protecting the internal joints. The inboard joint uses a flange connection style with a single bolt hole, while the outboard joint employs an Audi style spline bolt connection with 38 splines, ensuring secure and accurate engagement. The included ABS tone ring has 45 window-type teeth, compatible with the vehicle’s anti-lock braking system sensors. Axle bolts are specified with a 27mm hex size, 97mm length, and M16*1.5 thread size, though the axle nut is not included.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Audi A4, S4, and Volkswagen Passat
• Restores proper ABS sensor function with included tone ring
• Eliminates vibrations or clicking noises caused by joint wear
• Addresses boot damage or leaks to prevent grease loss and contamination
• Corrects driveline imbalance or axle shaft failure symptoms

Installation Notes and Tips

Installation requires proper torque specifications for the axle bolts (27mm hex, M16*1.5 thread). Ensure the flange and spline connections are clean and free of debris before assembly. The neoprene boot should be inspected for proper seating to avoid premature wear. Since the axle nut is not included, verify compatibility with the existing hardware or source separately. It is recommended to check ABS sensor alignment with the included tone ring during installation.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft AD-8006 is manufactured to meet or exceed OEM standards for fit and function. As a new component, it provides reliable performance for driveline repairs on compatible Audi and Volkswagen models. Warranty details should be confirmed with the point of purchase or manufacturer documentation.
