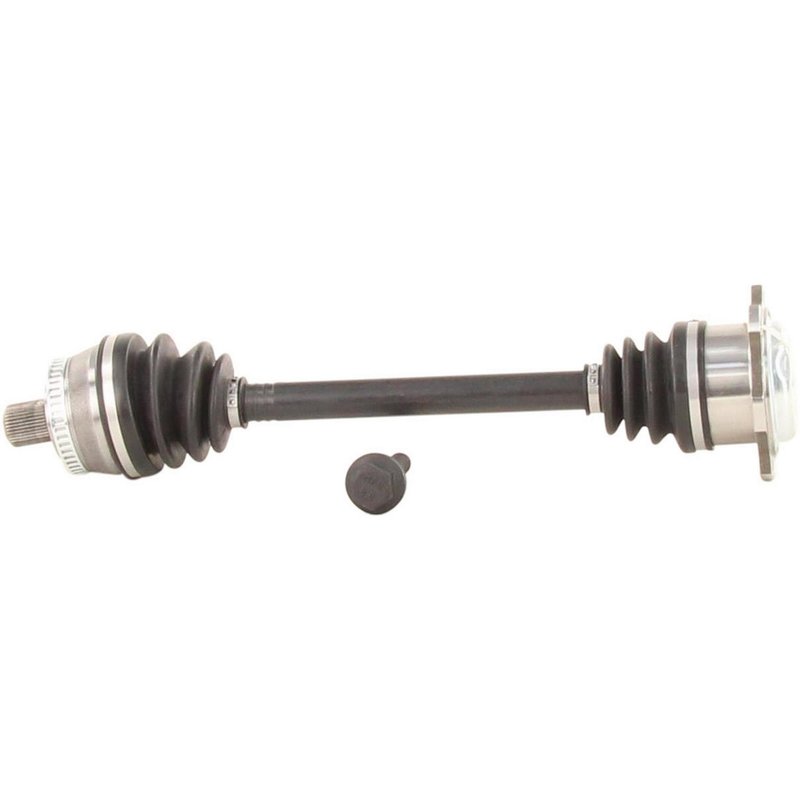

TrakMotive AD-8007 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft AD-8007

The TrakMotive CV Axle Shaft AD-8007 is engineered for reliable driveline performance in Audi and Volkswagen vehicles. Designed specifically for models like the Audi A4, S4, and Volkswagen Passat, this new axle shaft ensures precise fitment and durability.

• Compatible with Audi A4, S4, and Volkswagen Passat
• New, not remanufactured, for consistent quality
• Neoprene boot material for enhanced durability
• Includes ABS tone ring with 45 window-type teeth
• Flange-type inboard joint and Audi style spline bolt outboard joint
• Overall compressed length of 530 mm (20.87 in)
• Axle bolt specifications: 27 mm hex size, 97 mm length, M16*1.5 thread size
• One bolt hole on inboard flange and one outboard shaft bolt

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components tailored for European vehicles. This line emphasizes compatibility with specific vehicle models and incorporates features such as ABS tone rings and durable neoprene boots to maintain optimal performance and safety. The AD-8007 part exemplifies this approach by combining robust materials and exact fitment specifications for Audi and Volkswagen applications.

Technical Description and Features

The AD-8007 CV Axle Shaft features a flange-type inboard joint and an Audi style spline bolt outboard joint, ensuring secure and stable connections to the drivetrain. The neoprene boot material provides resistance to wear and environmental factors, extending the life of the axle. The included ABS tone ring with 45 window-type teeth supports accurate ABS sensor readings, critical for vehicle safety systems. The axle bolts are designed with a 27 mm hex size, 97 mm length, and M16*1.5 thread size, matching factory specifications for straightforward installation.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Audi A4, S4, and Volkswagen Passat
• Restores proper ABS sensor function with included tone ring
• Eliminates vibrations or clicking noises caused by faulty CV joints
• Addresses boot damage or leaks to prevent grease loss and joint failure
• Ensures drivetrain stability and smooth power transfer

Installation Notes and Tips

• Verify vehicle compatibility with Audi A4, S4, or Volkswagen Passat before installation
• Use appropriate tools for 27 mm hex axle bolts and M16*1.5 threads
• Inspect surrounding components for wear during replacement
• Ensure proper torque specifications are followed for axle bolts
• Check ABS sensor alignment with the included tone ring after installation

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft AD-8007 is a new component manufactured to meet OEM standards for fit and function. It includes an ABS tone ring to maintain vehicle safety system integrity. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliable performance in Audi and Volkswagen driveline applications.
