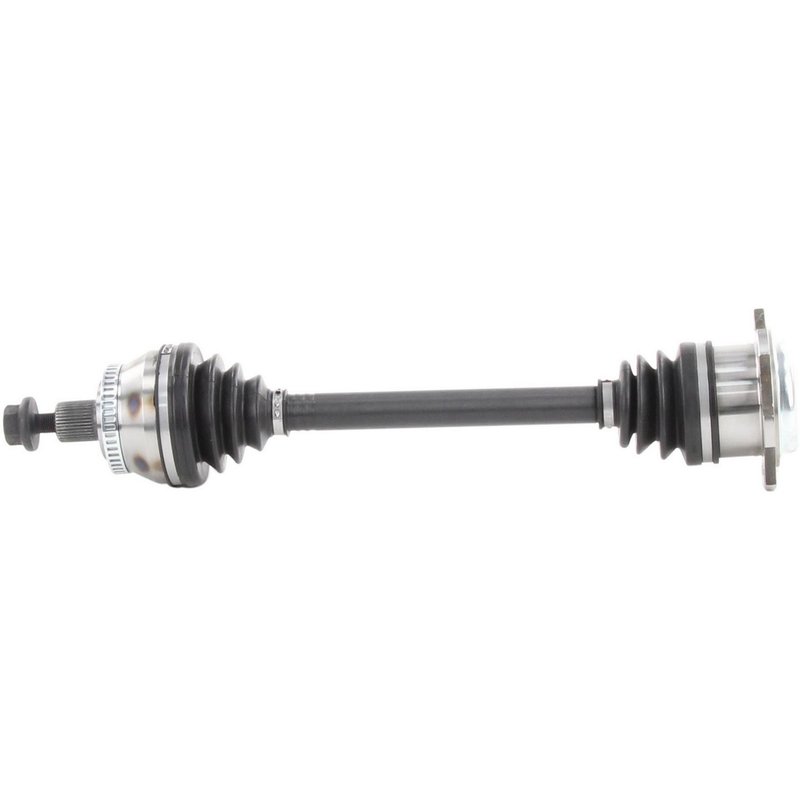

TrakMotive AD-8009 CV Axle Shaft - Front Right
| Brand | TrakMotive AD-8009 |
|---|---|
| Position | Front Right |
| Abs Ring Tooth Count | 45 |
| Abs Ring Type | Window |
| Abs Tone Ring Included | Yes |
| Axle Bolt Hex Size (mm) | 27 |
| Axle Bolt Length (mm) | 97 |
| Axle Bolt Thread Size | M16*1.5 |
| Axle Nut Included | No |
| Boot Material | Neoprene |
| Inboard Joint Type | Flange |
| Inboard Shaft Connection Style | Flange |
| New Or Remanufactured | New |
| Number Of Bolt Holes | 1 |
| Number Of Outboard Shaft Bolts | 1 |
| Number Of Outboard Splines | 38 |
| Outboard Joint Type | Audi Style Spline Bolt |
| Outboard Shaft Connection Style | Audi Style Spline Bolt |
| Overall Compressed Length (in) | 20.59 |
| Overall Compressed Length (mm) | 523 |
| Product line | CV Axle Shaft |
| Fits | Audi · 27 vehicles |
New axle shaft. Fresh replacement part with a neoprene boot for dependable sealing.
ABS tone ring included. Window-style ring with 45 teeth for accurate wheel-speed signal transfer.
Flange connection design. Bolt-on shaft connection style for straightforward installation.
Cross-references Cardone New 66-7261, Cardone Reman 60-7074 and Cardone Reman 60-7261 for the same application. See all 31.
TrakMotive AD-8009 CV Axle Shaft
TrakMotive AD-8009 is a new CV axle shaft for the front right position on select Audi applications. It is built with a neoprene boot, a flange-style inboard connection, and an Audi-style spline bolt outboard joint for direct driveline replacement on covered vehicles.
This CV axle shaft is listed for 1997-2004 Audi A6, A6 Quattro, A8, A8 Quattro, and S8 front right applications. It also includes an ABS tone ring with a 45-tooth window-style ring, and TrakMotive notes that ABS axles fit non-ABS applications unless otherwise noted.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: AD-8009
- New replacement axle shaft
- Front right position
- Inboard joint type: flange
- Outboard joint type: Audi-style spline bolt
- Boot material: neoprene
- ABS tone ring included
- ABS ring tooth count: 45
- Overall compressed length: 20.59 in. (523 mm)
- Axle bolt thread size: M16 x 1.5
- Axle bolt hex size: 27 mm
- Axle bolt length: 97 mm
Product Details
TrakMotive AD-8009 is a driveline and axle component engineered for front right service on select Audi A6, Audi A6 Quattro, Audi A8, Audi A8 Quattro, and Audi S8 models. The flange-style inboard connection and Audi-style spline bolt outboard design match the listed vehicle applications, while the neoprene boot helps protect the joint assembly from road contamination. The included ABS tone ring supports vehicles equipped with ABS, and the axle is also listed for non-ABS applications where applicable. This part cross-references Cardone New 66-7261 for the same application.
What This Axle Shaft Helps Address
- Clicking or popping during turns from worn CV joints
- Vibration or shudder during acceleration
- Grease leakage from a damaged axle boot
- Noise from a worn front right driveline assembly
- ABS-related fitment needs on covered Audi applications
Installation Notes
Verify axle length, spline count, bolt style, and ABS ring configuration against the original part before installation. Confirm front right fitment for the exact year, model, and chassis breakpoints listed for your Audi A6, A6 Quattro, A8, A8 Quattro, or S8. Use the correct axle bolt specification during service: M16 x 1.5 thread, 27 mm hex, and 97 mm length.
Quality Assurance
TrakMotive identifies this as a new CV axle shaft and states that its products are backed by a limited lifetime warranty. The company also notes ISO 9001:1007 and TS 16949:2009 certification.
| Year | Make | Model | Submodel | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2004 | Audi | A6 Quattro | — | — | 3.0L | V6 | Front Right | CV Axle Shaft |
| 2004 | Audi | A6 Quattro | — | Automatic | 2.7L | V6 | Front Right | CV Axle Shaft |
| 2003 | Audi | A6 Quattro | — | — | 3.0L | V6 | Front Right | CV Axle Shaft |
| 2003 | Audi | A6 Quattro | — | Automatic | 2.7L | V6 | Front Right | CV Axle Shaft |
| 2003 | Audi | A8 Quattro | L | — | 4.2L | V8 | Front Right | To CH#4D-3-004-999; CV Axle Shaft |
| 2003 | Audi | S8 | — | — | — | — | Front Right | Thru 9/02; CV Axle Shaft |
| 2002 | Audi | A6 Quattro | — | — | 3.0L | V6 | Front Right | CV Axle Shaft |
| 2002 | Audi | A6 Quattro | — | Automatic | 2.7L | V6 | Front Right | CV Axle Shaft |
| 2002 | Audi | A8 Quattro | — | — | 4.2L | V8 | Front Right | To CH#4D-3-004-999; CV Axle Shaft |
| 2002 | Audi | S8 | — | — | — | — | Front Right | CV Axle Shaft |
| 2001 | Audi | A6 | — | Automatic | — | — | Front Right | CV Axle Shaft |
| 2001 | Audi | A6 Quattro | — | Automatic | 2.7L | V6 | Front Right | CV Axle Shaft |
| 2001 | Audi | A8 Quattro | — | — | 4.2L | V8 | Front Right | To CH#4D-3-004-999; CV Axle Shaft |
| 2001 | Audi | S8 | — | — | — | — | Front Right | CV Axle Shaft |
| 2000 | Audi | A6 | — | Automatic | — | — | Front Right | CV Axle Shaft |
| 2000 | Audi | A6 Quattro | — | Automatic | 2.7L | V6 | Front Right | CV Axle Shaft |
| 2000 | Audi | A8 | — | — | — | — | Front Right | CV Axle Shaft |
| 2000 | Audi | A8 Quattro | — | — | 4.2L | V8 | Front Right | To CH#4D-3-004-999; CV Axle Shaft |
| 1999 | Audi | A6 | — | Automatic | — | — | Front Right | CV Axle Shaft |
| 1999 | Audi | A6 Quattro | — | Automatic | 2.8L | V6 | Front Right | CV Axle Shaft |
| 1999 | Audi | A8 | — | — | — | — | Front Right | CV Axle Shaft |
| 1999 | Audi | A8 Quattro | — | — | — | — | Front Right | CV Axle Shaft |
| 1998 | Audi | A6 | — | Automatic | — | — | Front Right | Fr. CH#4AW-005-001; VIN B (8th digit); CV Axle Shaft |
| 1998 | Audi | A8 | — | — | — | — | Front Right | CV Axle Shaft |
| 1998 | Audi | A8 Quattro | — | — | — | — | Front Right | CV Axle Shaft |
| 1997 | Audi | A8 | — | — | — | — | Front Right | CV Axle Shaft |
| 1997 | Audi | A8 Quattro | — | — | — | — | Front Right | CV Axle Shaft |
