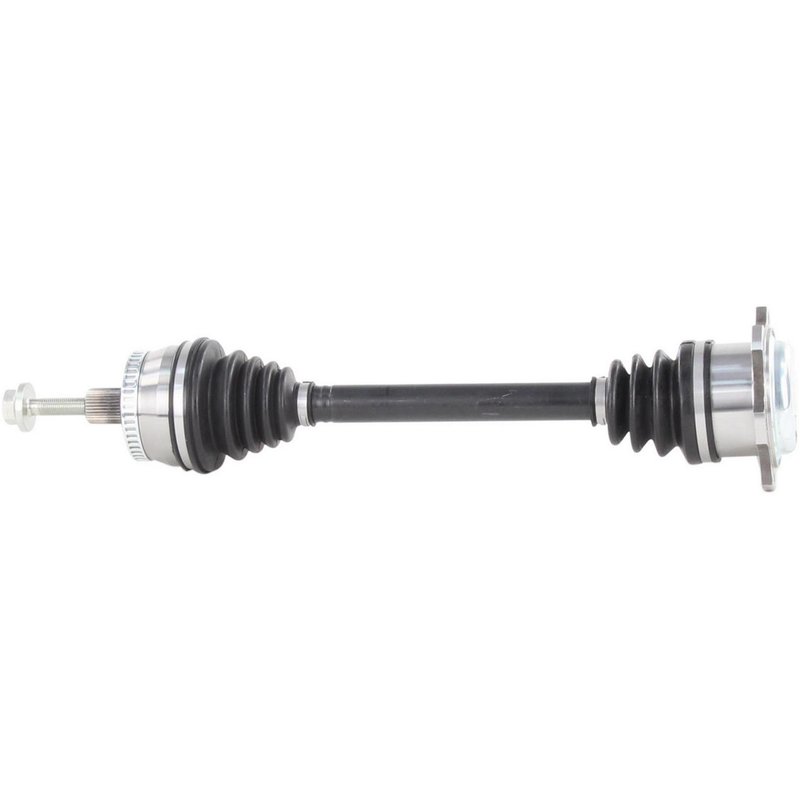

TrakMotive AD-8012 CV Axle Shaft - Front Right
| Brand | TrakMotive AD-8012 |
|---|---|
| Position | Front Right |
| Abs Ring Tooth Count | 45 |
| Abs Ring Type | Window |
| Abs Tone Ring Included | Yes |
| Axle Bolt Hex Size (mm) | 23.8 |
| Axle Bolt Length (mm) | 93 |
| Axle Bolt Thread Size | M14*1.5 |
| Axle Nut Included | No |
| Boot Material | Neoprene |
| Inboard Joint Type | Flange |
| Inboard Shaft Connection Style | Flange |
| New Or Remanufactured | New |
| Number Of Bolt Holes | 1 |
| Number Of Outboard Shaft Bolts | 1 |
| Number Of Outboard Splines | 33 |
| Outboard Joint Type | Audi Style Spline Bolt |
| Outboard Shaft Connection Style | Audi Style Spline Bolt |
| Overall Compressed Length (in) | 19.8 |
| Overall Compressed Length (mm) | 503 |
| Product line | CV Axle Shaft |
| Fits | Audi and Volkswagen · 13 vehicles |
New replacement part. Built as a fresh CV axle shaft for dependable driveline service.
Neoprene boot. Helps resist wear while keeping the joint protected.
ABS tone ring included. Ready for applications that use wheel speed sensing.
Cross-references Cardone New 66-7199, Cardone Reman 60-7199 and Carlson 7502 for the same application. See all 23.
CV Axle Shaft for Audi A4 and Passat
TrakMotive AD-8012 is a new CV axle shaft for front right applications on select Audi A4, Audi A4 Quattro, and Volkswagen Passat models. It is built with a 33-spline outboard connection, a flange-style inboard joint, and an integrated ABS tone ring for the listed applications.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: AD-8012
- Front right position
- 33 outboard splines
- Flange-style inboard shaft connection
- Audi-style spline bolt outboard joint
- Integrated ABS tone ring with 45-tooth window ring
- Neoprene boot material
- Overall compressed length: 19.8 in. (503 mm)
- Axle bolt thread size: M14 x 1.5
- Axle bolt hex size: 23.8 mm
Detailed Description
TrakMotive AD-8012 is a CV axle shaft for driveline repair on select front right applications. It measures 19.8 inches compressed length and uses a flange inboard connection with an Audi-style spline bolt outboard joint. The axle includes a window-style ABS tone ring with 45 teeth, and the neoprene boot material is specified for this assembly. This part number is listed for 1997-2000 Audi A4, 1997-1999 Audi A4 Quattro, 2000 Audi A4 Quattro, 2001 Audi A4, and 1998-2000 Volkswagen Passat front right applications, with the 2001 Passat listing requiring the 33-spline outboard joint and thru VIN 049999 note. AD-8012 also cross-references Cardone New 66-7199 for the same application.
Vehicle Fitment
- Fits 1997-2000 Audi A4, front right.
- Fits 1997-1999 Audi A4 Quattro, front right.
- Fits 2000 Audi A4 Quattro, front right.
- Fits 2001 Audi A4, front right, with 33 spline O.B. joint.
- Fits 1998-2000 Volkswagen Passat, front right.
- Fits 2001 Volkswagen Passat, front right, with 33 spline O.B. joint and thru VIN 049999.
What This Part Helps Address
- Clicking or popping during turns caused by worn CV joints
- Vibration or shudder from a damaged axle shaft
- Grease leakage from a torn or deteriorated boot
- ABS warning concerns tied to a failed tone ring or sensor signal issue
- Driveline noise from excessive axle wear
Installation Notes
Verify the front right position, 33-spline outboard joint requirement, and vehicle VIN break before ordering. Confirm axle bolt thread size M14 x 1.5 and hex size 23.8 mm during service. Compare the original axle length and joint style to the replacement before installation.
Quality Assurance
TrakMotive lists AD-8012 as a new CV axle shaft from an ISO 9001:1007 and TS 16949:2009 certified company. The part carries a limited lifetime warranty.
| Year | Make | Model | Drive Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2001 | Audi | A4 | — | Automatic | 1.8L | L4 | Front Right | W/33 Spline O.B. Joint; CV Axle Shaft |
| 2001 | Volkswagen | Passat | FWD | Automatic | 1.8L | L4 | Front Right | W/33 Spline O.B. Joint; Thru VIN 049999; CV Axle Shaft |
| 2000 | Audi | A4 | — | Automatic | 1.8L | L4 | Front Right | CV Axle Shaft |
| 2000 | Audi | A4 Quattro | — | Automatic | 1.8L | L4 | Front Right | W/33 Spline O.B. Joint; CV Axle Shaft |
| 2000 | Volkswagen | Passat | FWD | Automatic | 1.8L | L4 | Front Right | CV Axle Shaft |
| 1999 | Audi | A4 | — | Automatic | 1.8L | L4 | Front Right | CV Axle Shaft |
| 1999 | Audi | A4 Quattro | — | Automatic | 1.8L | L4 | Front Right | CV Axle Shaft |
| 1999 | Volkswagen | Passat | FWD | Automatic | 1.8L | L4 | Front Right | CV Axle Shaft |
| 1998 | Audi | A4 | — | Automatic | 1.8L | L4 | Front Right | CV Axle Shaft |
| 1998 | Audi | A4 Quattro | — | Automatic | 1.8L | L4 | Front Right | CV Axle Shaft |
| 1998 | Volkswagen | Passat | FWD | Automatic | 1.8L | L4 | Front Right | CV Axle Shaft |
| 1997 | Audi | A4 | — | Automatic | 1.8L | L4 | Front Right | CV Axle Shaft |
| 1997 | Audi | A4 Quattro | — | Automatic | 1.8L | L4 | Front Right | CV Axle Shaft |
