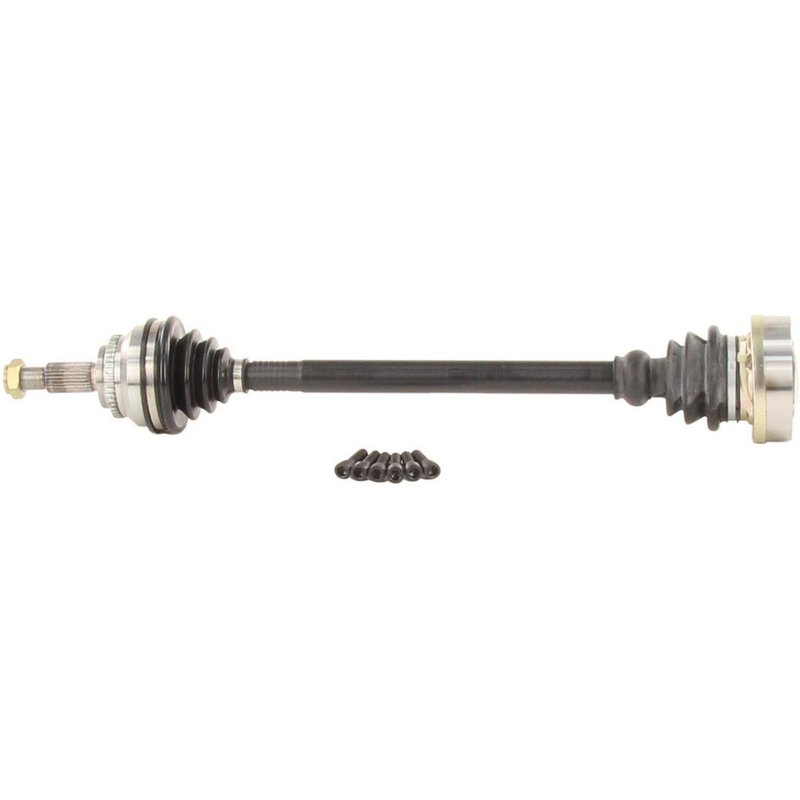

TrakMotive AD-8016 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft AD-8016

The TrakMotive CV Axle Shaft AD-8016 is engineered for reliable driveline performance in Audi 100 and 200 models. Designed as a new replacement part, it ensures precise fitment and durability for your vehicle's front-wheel drive system.

• Compatible with Audi 100 and Audi 200 models
• Includes a self-locking hex axle nut (M22*1.5 thread size)
• Neoprene boot material for enhanced joint protection
• 45-tooth ABS ring with included tone ring for accurate wheel speed sensing
• Bolt-on inboard joint with 6 bolt holes and Allen head bolts
• Overall compressed length of 27.09 inches (688 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering new, high-quality constant velocity axle shafts designed to meet OEM specifications. This line emphasizes precise engineering, including features such as bolt-on inboard joints and conventional outboard joints, to ensure compatibility and performance in specific vehicle applications like the Audi 100 and 200. The inclusion of a toothed ABS ring and tone ring supports modern ABS systems, making this product line suitable for vehicles requiring accurate wheel speed data.

Technical Specifications and Features

The AD-8016 CV axle shaft features a neoprene boot that provides resistance to wear and environmental factors, extending the life of the joint. The axle nut is a self-locking type with a hex head measuring 1 1/4 inches (32 mm) across flats, 3/5 inches (15 mm) in height, and 1 1/2 inches (37 mm) in length, ensuring secure fastening. The inboard joint uses a bolt-on connection style with six Allen head bolts (M10*1.5 thread size, 55 mm length), providing a robust and serviceable assembly. The outboard joint is conventional with 26 splines, designed for smooth power transfer. The ABS ring has 45 teeth and is toothed, with the tone ring included to maintain ABS functionality.

Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Audi 100 and 200 models
• Resolves issues related to torn or leaking CV boots
• Addresses axle shaft vibration or clicking noises during turns
• Restores proper ABS sensor function with included tone ring
• Fixes axle nut loosening with self-locking nut design

Installation Notes and Tips

Installation requires proper torque specifications for the M22*1.5 self-locking axle nut and M10*1.5 inboard bolts. Use an Allen wrench for the inboard joint bolts and a 1 1/4 inch socket for the axle nut. Ensure the neoprene boot is seated correctly to prevent contamination. Verify the ABS tone ring is properly aligned to maintain sensor accuracy. This CV axle shaft is designed for bolt-on installation, facilitating replacement without modification.

Quality Assurance and Warranty

The TrakMotive AD-8016 CV Axle Shaft is a new, OEM-quality replacement part manufactured to meet or exceed original equipment standards. It includes a self-locking axle nut and all necessary hardware for installation. While specific warranty details are not provided, TrakMotive products typically come with manufacturer-backed quality assurance to ensure reliability and fitment for Audi 100 and 200 vehicles.
