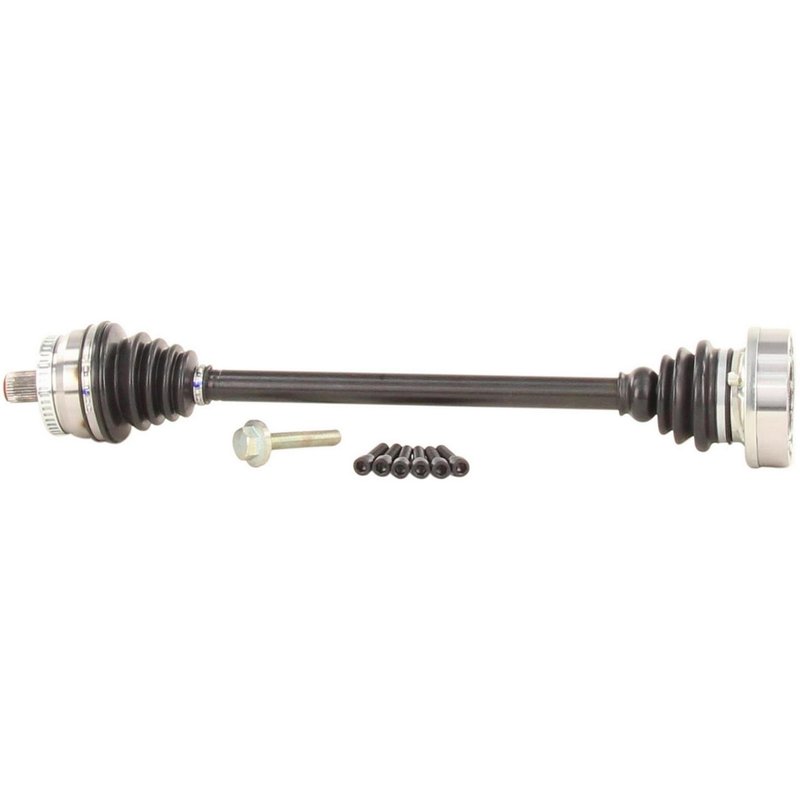

TrakMotive AD-8022 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft AD-8022

The TrakMotive CV Axle Shaft AD-8022 is engineered for reliable driveline performance in Audi A4 and Volkswagen Passat models. Designed as a new replacement part, it ensures precise fitment and durability for your vehicle's front-wheel or all-wheel drive system.

• Compatible with Audi A4 and Volkswagen Passat
• New CV Axle Shaft with part number AD-8022
• Neoprene boot material for enhanced durability
• Includes ABS tone ring with 45 window-type teeth
• Inboard joint features bolt-on connection with Allen bolt head
• Outboard joint uses Audi style spline bolt connection
• Overall compressed length of 24.92 inches (633 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering direct-fit replacement components for driveline and axle systems. This line emphasizes quality materials and precise engineering to match OEM specifications. The AD-8022 model exemplifies this approach with its robust neoprene boot, integrated ABS tone ring, and bolt-on inboard joint design, ensuring compatibility and performance for specific Audi and Volkswagen vehicles.

Technical Specifications and Features

This CV axle shaft features a 45-tooth window-type ABS ring included for accurate wheel speed sensor readings. The neoprene boot material provides resistance to wear and environmental factors. The inboard joint uses a bolt-on style with six M10*1.5 Allen bolts, each 55 mm in length, ensuring secure attachment. The outboard joint connects via an Audi style spline bolt with 33 splines and a single M14*1.5 axle bolt measuring 93 mm in length and 23.8 mm hex size. The overall compressed length is 24.92 inches (633 mm), designed to fit the specified vehicle models precisely.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Audi A4 and Volkswagen Passat
• Restores proper ABS sensor function with included tone ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage with durable neoprene boot
• Ensures secure driveline connection with bolt-on inboard joint

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft AD-8022, verify compatibility with your Audi A4 or Volkswagen Passat model year. Use the specified M14*1.5 axle bolt and M10*1.5 Allen bolts to secure the shaft. Ensure the ABS tone ring is properly aligned with the wheel speed sensor for accurate readings. Inspect the neoprene boot for any damage during installation to maintain joint protection.

Quality Assurance and Warranty

This CV axle shaft is a new, direct replacement part manufactured to meet or exceed OEM standards. The inclusion of an ABS tone ring and durable neoprene boot reflects attention to quality and functionality. Warranty information is provided by the manufacturer and should be confirmed at the time of purchase.
