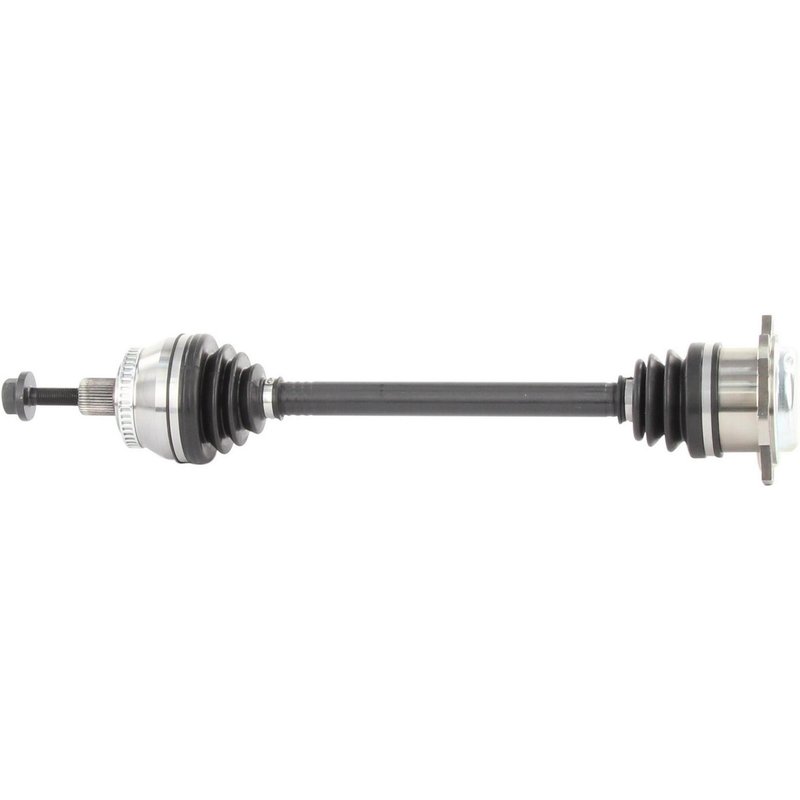

TrakMotive AD-8031 CV Axle Shaft - Front Left
| Brand | TrakMotive AD-8031 |
|---|---|
| Position | Front Left |
| Abs Ring Tooth Count | 45 |
| Abs Ring Type | Window |
| Abs Tone Ring Included | Yes |
| Axle Bolt Hex Size (mm) | 27 |
| Axle Bolt Length (mm) | 97 |
| Axle Bolt Thread Size | M16*1.5 |
| Axle Nut Included | No |
| Boot Material | Neoprene |
| Inboard Joint Type | Flange |
| Inboard Shaft Connection Style | Flange |
| New Or Remanufactured | New |
| Number Of Bolt Holes | 1 |
| Number Of Outboard Shaft Bolts | 1 |
| Number Of Outboard Splines | 38 |
| Outboard Joint Type | Audi Style Spline Bolt |
| Outboard Shaft Connection Style | Audi Style Spline Bolt |
| Overall Compressed Length (in) | 21.73 |
| Overall Compressed Length (mm) | 552 |
| Product line | CV Axle Shaft |
| Fits | Audi · 14 vehicles |
New axle shaft. Built as a fresh replacement, not remanufactured.
Neoprene boot. Helps protect the joint from dirt and moisture.
ABS tone ring included. Ready for applications that use an ABS signal ring.
Cross-references Cardone New 66-7260, Cardone Reman 60-7260 and CSF 6051 for the same application. See all 26.
TrakMotive CV Axle Shaft AD-8031
TrakMotive AD-8031 is a new CV axle shaft for the front left position on select Audi A6 and Audi A6 Quattro applications. It is built with an Audi-style spline bolt outboard connection, a flange-style inboard joint, and ABS tone ring details that match the listed fitment requirements.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: AD-8031
- Front left axle for select Audi A6 and Audi A6 Quattro models
- New axle shaft construction
- Outboard joint type: Audi-style spline bolt
- Inboard joint type: flange
- 38 outboard splines
- 45-tooth ABS window ring with tone ring included
- Neoprene boot material
- Overall compressed length: 21.73 in. (552 mm)
- Axle bolt thread size: M16x1.5
- Axle bolt hex size: 27 mm
- Axle bolt length: 97 mm
Detailed Description
This TrakMotive CV axle shaft is engineered for direct replacement in front left driveline applications on 1998-2004 Audi A6 and Audi A6 Quattro models listed below. The AD-8031 uses a flange-style inboard connection and an Audi-style spline bolt outboard connection, with 38 outboard splines and a 45-tooth ABS window ring included for the specified ABS setup. TrakMotive identifies this axle as a new part, and the neoprene boot material supports consistent joint protection in daily driving conditions. This part cross-references Cardone New 66-7260 for the same application.
Vehicle Fitment
- Fits 1999-2004 Audi A6 Quattro, front left.
- Fits 1999-2001 Audi A6, front left.
- Fits 1998 Audi A6, front left, Fr. CH#4AW-005-001; CV Axle Shaft.
- Fits 1998 Audi A6 Quattro, front left, Fr. CH#4AW-005-001; CV Axle Shaft.
Common Replacement Issues
- Clicking or popping during turns from worn CV joints
- Vibration under acceleration from a damaged axle shaft
- Torn boot conditions that can lead to grease loss and joint wear
- ABS warning concerns tied to a failed tone ring or incorrect axle configuration
- Driveline noise from excessive play in the front left axle assembly
Installation Notes
Verify the vehicle’s front left application, spline count, axle bolt specifications, and ABS ring style before installation. Confirm the 1998 chassis note for A6 and A6 Quattro models, since fitment is limited to Fr. CH#4AW-005-001 on those applications. Compare the original axle length and flange/spline connection style to ensure proper replacement.
Quality Assurance
TrakMotive lists this CV axle shaft under a Limited Lifetime Warranty and states that the company is ISO 9001:1007 and TS 16949:2009 certified. The AD-8031 is built as a new replacement axle for the specified Audi A6 and Audi A6 Quattro fitments.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2004 | Audi | A6 Quattro | — | 3.0L | V6 | Front Left | CV Axle Shaft |
| 2004 | Audi | A6 Quattro | Automatic | 2.7L | V6 | Front Left | CV Axle Shaft |
| 2003 | Audi | A6 Quattro | — | 3.0L | V6 | Front Left | CV Axle Shaft |
| 2003 | Audi | A6 Quattro | Automatic | 2.7L | V6 | Front Left | CV Axle Shaft |
| 2002 | Audi | A6 Quattro | — | 3.0L | V6 | Front Left | CV Axle Shaft |
| 2002 | Audi | A6 Quattro | Automatic | 2.7L | V6 | Front Left | CV Axle Shaft |
| 2001 | Audi | A6 | Automatic | — | — | Front Left | CV Axle Shaft |
| 2001 | Audi | A6 Quattro | Automatic | 2.7L | V6 | Front Left | CV Axle Shaft |
| 2000 | Audi | A6 | Automatic | — | — | Front Left | CV Axle Shaft |
| 2000 | Audi | A6 Quattro | Automatic | 2.7L | V6 | Front Left | CV Axle Shaft |
| 1999 | Audi | A6 | Automatic | — | — | Front Left | CV Axle Shaft |
| 1999 | Audi | A6 Quattro | Automatic | 2.8L | V6 | Front Left | CV Axle Shaft |
| 1998 | Audi | A6 | Automatic | — | — | Front Left | Fr. CH#4AW-005-001; CV Axle Shaft |
| 1998 | Audi | A6 Quattro | Automatic | — | — | Front Left | Fr. CH#4AW-005-001; CV Axle Shaft |
