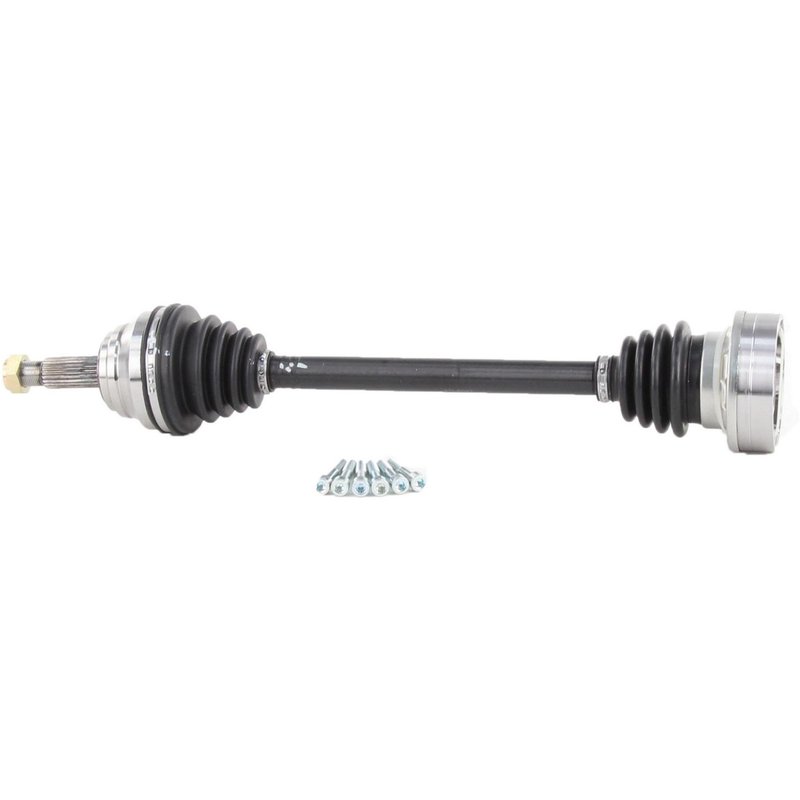

TrakMotive AD-8047 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft AD-8047

The TrakMotive CV Axle Shaft AD-8047 is designed for reliable driveline performance in select Audi and Volkswagen models. Engineered to meet OEM specifications, this new axle shaft ensures proper fit and function for vehicles like the Audi 80, Audi 4000, Volkswagen Coupe, and Volkswagen Quantum.

• Brand: TrakMotive
• Brand Line: CV Axle Shaft
• Part Number: AD-8047
• Compatible with Audi 80, Audi 4000, Volkswagen Coupe, Volkswagen Quantum
• New, not remanufactured
• Boot Material: Durable neoprene
• Axle Nut Included with self-locking hex head
• Inboard joint bolt-on type with 6 bolt holes
• Overall compressed length: 22.68 inches (576 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering new, high-quality constant velocity axle shafts designed for direct replacement applications. This line emphasizes precise fitment and durability, featuring components such as neoprene boots and self-locking axle nuts to maintain driveline integrity. The AD-8047 model exemplifies these qualities with its bolt-on inboard joint and conventional outboard joint connection styles, ensuring compatibility with specific Audi and Volkswagen vehicles.

Technical Specifications and Features

The AD-8047 CV axle shaft includes a neoprene boot that provides resistance to wear and environmental factors. The axle nut is a self-locking hex type, measuring 1 1/6 inches (30 mm) across the flats, with a height of 14 mm (5/9 inch) and a length of 34.6 mm (1 1/3 inch). The axle nut thread size is M20 x 1.5. The inboard joint uses a bolt-on connection style with six M8 x 1.25 bolts, each 56.5 mm (2 2/9 inches) long, secured by 6 bolt holes. The outboard joint is conventional with 22 splines, designed for a standard shaft connection. The overall compressed length of the axle shaft is 22.68 inches (576 mm), ensuring proper fitment within the driveline assembly.

Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Audi 80 and 4000 models
• Restores driveline stability and smooth power transfer in Volkswagen Coupe and Quantum vehicles
• Addresses issues such as torn CV boots, axle shaft vibration, and joint wear
• Eliminates axle nut loosening with self-locking nut design
• Prevents drivetrain noise caused by faulty inboard or outboard joints

Installation Notes and Tips

Installation requires proper torque specifications for the self-locking axle nut (M20 x 1.5 thread) and the six inboard joint bolts (M8 x 1.25). Use an Allen wrench for the inboard bolt heads sized at 6 mm (1/4 inch). Ensure the neoprene boot is properly seated to prevent contamination. Verify the overall compressed length of 22.68 inches (576 mm) matches the vehicle’s requirements before installation. It is recommended to inspect related suspension and driveline components during replacement.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft AD-8047 is a new part manufactured to meet or exceed OEM standards for fit and function. It includes a self-locking axle nut and durable neoprene boot for extended service life. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliability in Audi and Volkswagen applications.
