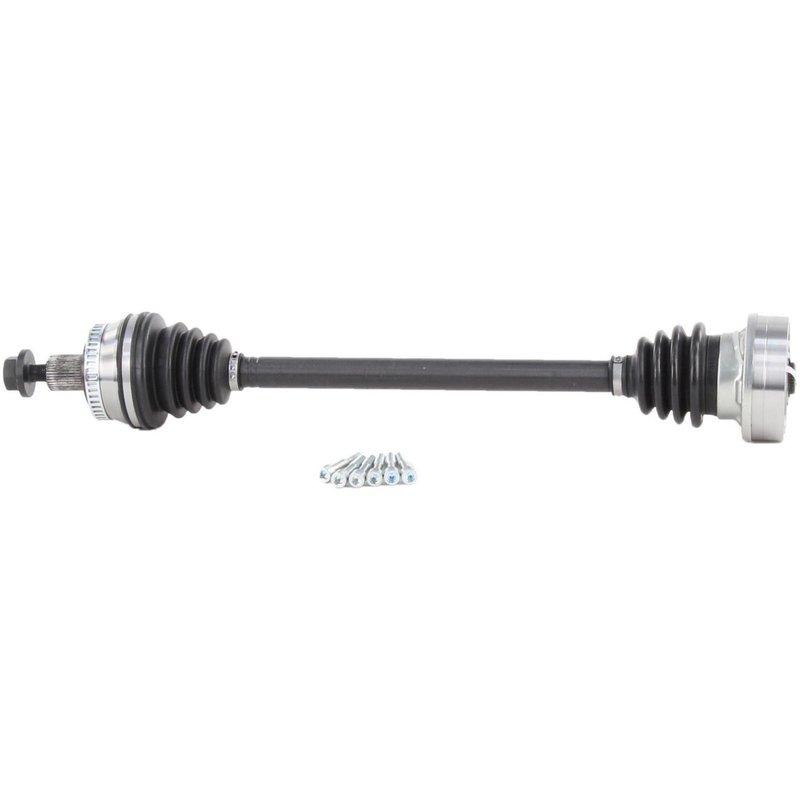

TrakMotive AD-8061 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft AD-8061

The TrakMotive CV Axle Shaft AD-8061 is engineered for precise fitment with Audi A4 Quattro models. Designed as a new replacement part, it ensures reliable driveline performance and compatibility with specific vehicle requirements.

• Compatible with Audi A4 Quattro
• New CV Axle Shaft from TrakMotive
• Abs ring with 45 window-type teeth included
• Neoprene boot material for durability
• Overall compressed length of 24.25 inches (616 mm)
• Inboard bolt-on joint with 6 bolt holes
• Outboard Audi style spline bolt connection
• Axle bolt hex size 27 mm, length 97 mm, thread M16*1.5

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering direct-fit replacement components for driveline and axle systems. This line emphasizes precise engineering to match OEM specifications, including bolt patterns, spline counts, and ABS tone ring integration. The AD-8061 model exemplifies this approach with its bolt-on inboard joint and Audi style spline outboard connection, ensuring compatibility and ease of installation for Audi A4 Quattro vehicles.

Technical Specifications and Features

This CV axle shaft features a 45-tooth window-type ABS ring with an included tone ring, supporting accurate wheel speed sensor readings. The neoprene boot material offers resistance to wear and environmental factors, protecting the joint from contaminants. The inboard joint uses a bolt-on style with six M8*1.25 bolts and Allen head design, measuring 56.5 mm in length. The outboard shaft connects via an Audi style spline bolt with 38 splines and a single bolt hole. The axle bolt measures 27 mm across the hex, 97 mm in length, with M16*1.5 threading. Overall compressed length is 24.25 inches (616 mm), matching factory dimensions for proper fitment.

Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Audi A4 Quattro
• Restores proper ABS sensor function with included tone ring
• Eliminates axle vibration or clicking noises during turns
• Prevents grease leakage with durable neoprene boot
• Ensures secure driveline connection with OEM bolt patterns

Installation Notes and Tips

Installation requires removal of the old axle shaft and careful alignment of the bolt-on inboard joint and Audi style spline outboard connection. Use the specified 27 mm hex axle bolt and torque to manufacturer specifications. Verify the ABS tone ring is properly seated to maintain sensor accuracy. The included Allen head bolts for the inboard joint should be tightened evenly to avoid joint stress. It is recommended to inspect related suspension and drivetrain components during installation.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft AD-8061 is a new, direct replacement part manufactured to meet or exceed OEM standards. It includes an ABS tone ring for sensor compatibility and uses high-quality neoprene for boot durability. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliable performance and fitment for Audi A4 Quattro vehicles.
