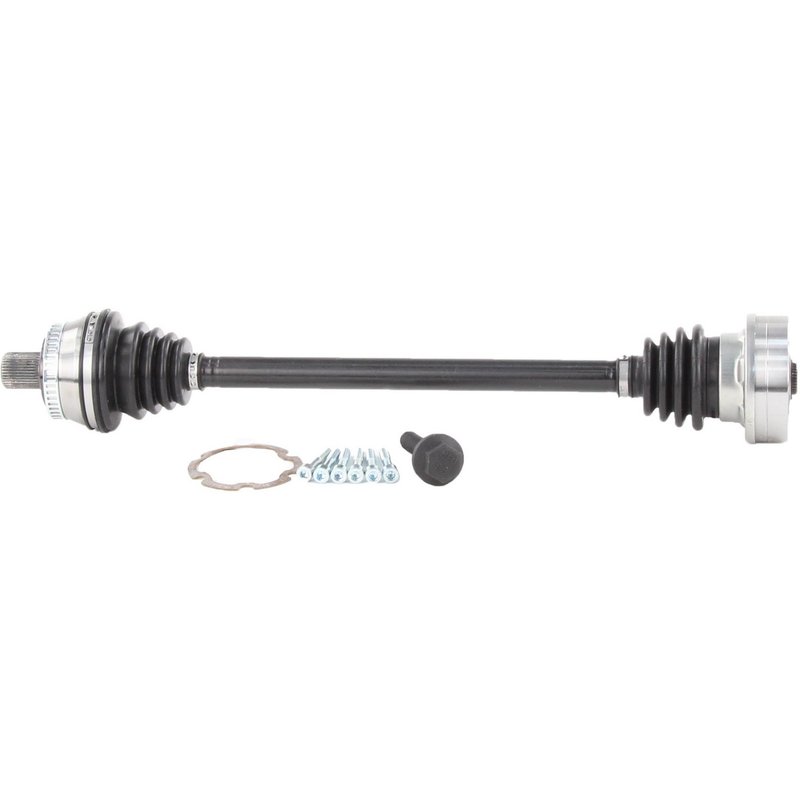

TrakMotive AD-8062 CV Axle Shaft - Front Right
| Brand | TrakMotive AD-8062 |
|---|---|
| Position | Front Right |
| Abs Ring Tooth Count | 45 |
| Abs Ring Type | Window |
| Abs Tone Ring Included | Yes |
| Axle Bolt Hex Size (mm) | 27 |
| Axle Bolt Length (mm) | 97 |
| Axle Bolt Thread Size | M16*1.5 |
| Axle Nut Included | No |
| Boot Material | Neoprene |
| Inboard Bolt Head Size (in) | 1/4 |
| Inboard Bolt Head Size (mm) | 6 |
| Inboard Bolt Head Type | Allen |
| Inboard Bolt Length (in) | 2 2/9 |
| Inboard Bolt Length (mm) | 56.5 |
| Inboard Bolt Thread Size | M8*1.25 |
| Inboard Joint Type | Bolt-On |
| Inboard Shaft Connection Style | Bolt-On |
| New Or Remanufactured | New |
| Number Of Bolt Holes | 1 |
| Number Of Inboard Joint Bolt Holes | 6 |
| Number Of Inboard Shaft Bolts | 6 |
| Number Of Outboard Shaft Bolts | 1 |
| Number Of Outboard Splines | 38 |
| Outboard Joint Type | Audi Style Spline Bolt |
| Outboard Shaft Connection Style | Audi Style Spline Bolt |
| Overall Compressed Length (in) | 25.12 |
| Overall Compressed Length (mm) | 638 |
| Product line | CV Axle Shaft |
| Fits | Audi · 7 vehicles |
Bolt-on design. Simplifies installation with inboard and outboard bolt-on connections.
Neoprene boot. Helps protect the CV joint from dirt and moisture.
ABS tone ring included. Ready for applications that use an ABS signal ring.
Cross-references Cardone New 66-7243, Cardone Reman 60-7243 and Carlson 7194 for the same application. See all 24.
TrakMotive CV Axle Shaft for Audi A4 Quattro
TrakMotive AD-8062 is a new CV axle shaft for front right applications on select Audi A4 Quattro models. It is built with a neoprene boot, a 38-spline outboard connection, and a bolt-on inboard joint for direct driveline service on the listed vehicles.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: AD-8062
- Front right position
- New axle shaft assembly
- Outboard joint type: Audi style spline bolt
- Inboard joint type: bolt-on
- Outboard splines: 38
- ABS tone ring included with 45-tooth window-style ring
- Neoprene boot material
- Overall compressed length: 25.12 in. (638 mm)
- Axle bolt thread size: M16 x 1.5
- Axle bolt hex size: 27 mm
Detailed Description
TrakMotive AD-8062 is a CV axle shaft for 1996-2001 Audi A4 Quattro front right applications, with a 2000 Audi A4 Quattro front right listing for vehicles using a 38-spline outboard configuration. This axle is engineered as a new replacement unit with a bolt-on inboard connection, Audi style spline bolt outboard connection, and an integrated ABS tone ring. TrakMotive positions the CV axle shaft line as a direct-fit driveline replacement backed by ISO 9001:1007 and TS 16949:2009 certified manufacturing practices.
This part cross-references Cardone New 66-7243 and Cardone Reman 60-7243 for the same application. Part number AD-8062 is also referenced in interchange listings for related driveline service applications.
What It Helps Address
- Clicking or popping during turns from worn CV joints
- Vibration under acceleration from a damaged axle shaft
- Grease leakage from a torn or deteriorated boot
- ABS warning concerns tied to a failed tone ring or sensor signal path
- Driveline noise caused by excessive axle wear
Installation Notes and Tips
Verify the front right position, 38-spline outboard connection, and 25.12 in. compressed length before installation. Confirm axle bolt thread size, hex size, and inboard bolt-on configuration against the removed part. ABS axles fit non-ABS applications unless otherwise noted, so match the vehicle’s original setup and inspect related hub, seal, and fastener surfaces during service.
Quality Assurance
TrakMotive lists AD-8062 with a limited lifetime warranty. The brand also notes ISO 9001:1007 and TS 16949:2009 certification for its manufacturing system.
| Year | Make | Model | Drive Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2001 | Audi | A4 Quattro | AWD | Manual | — | — | Front Right | CV Axle Shaft |
| 2000 | Audi | A4 Quattro | — | Manual | 2.8L | V6 | Front Right | CV Axle Shaft |
| 2000 | Audi | A4 Quattro | — | Manual | 1.8L | L4 | Front Right | W/38 Spline Obj; CV Axle Shaft |
| 1999 | Audi | A4 Quattro | — | Manual | 2.8L | V6 | Front Right | CV Axle Shaft |
| 1998 | Audi | A4 Quattro | — | Manual | 2.8L | V6 | Front Right | CV Axle Shaft |
| 1997 | Audi | A4 Quattro | — | Manual | 2.8L | V6 | Front Right | CV Axle Shaft |
| 1996 | Audi | A4 Quattro | AWD | Manual | — | — | Front Right | CV Axle Shaft |
