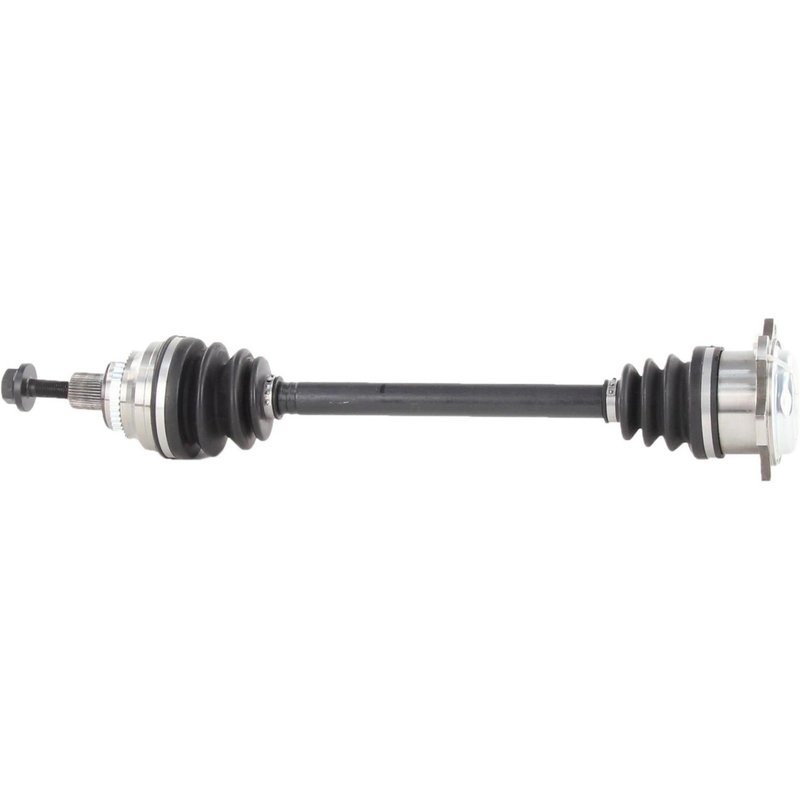

TrakMotive AD-8066 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft AD-8066

The TrakMotive CV Axle Shaft AD-8066 is engineered for precise fitment with Audi 90 models, ensuring reliable driveline performance. Designed as a new replacement part, it features durable neoprene boots and a flange-style inboard joint for secure connection.

• Compatible with Audi 90 vehicles
• New CV Axle Shaft from TrakMotive's CV Axle Shaft line
• Neoprene boot material for enhanced durability
• Flange inboard joint and flange shaft connection style
• Outboard joint with Audi style spline bolt connection
• 45-tooth ABS ring with included tone ring
• Axle bolt specifications: 27mm hex size, 97mm length, M16*1.5 thread size
• Overall compressed length of 568mm (22.36 inches)

Detailed Product Description

The TrakMotive CV Axle Shaft AD-8066 is part of the CV Axle Shaft product line, which focuses on delivering precise driveline components tailored for specific vehicle applications. This axle shaft is designed with a 45-tooth ABS ring and includes the ABS tone ring, ensuring compatibility with the vehicle's anti-lock braking system. The neoprene boot material provides resistance to wear and environmental factors, extending the service life of the axle shaft.

The inboard joint uses a flange connection style with a single bolt hole, while the outboard joint features an Audi style spline bolt connection with 38 splines, matching the original equipment specifications for the Audi 90. The axle bolts have a 27mm hex size, 97mm length, and M16*1.5 thread size, although the axle nut is not included. The overall compressed length of 568mm (22.36 inches) ensures proper fitment and alignment within the driveline assembly.

Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Audi 90 models
• Resolves issues related to torn or leaking CV boots
• Addresses ABS sensor errors caused by faulty or missing tone rings
• Fixes driveline vibrations or clicking noises during turns
• Restores proper axle length and connection integrity

Installation Notes and Tips

• Verify compatibility with Audi 90 before installation
• Use appropriate torque specifications for axle bolts (M16*1.5 thread)
• Inspect surrounding components such as wheel bearings and suspension parts during replacement
• Ensure ABS tone ring is properly seated to maintain sensor accuracy
• Do not reuse axle nuts as they are not included and may require replacement

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft AD-8066 is a new, direct replacement part manufactured to meet or exceed OEM standards. It undergoes rigorous quality control to ensure durability and fitment accuracy. While specific warranty details are not provided, TrakMotive products typically come with manufacturer-backed warranties covering defects in materials and workmanship.
