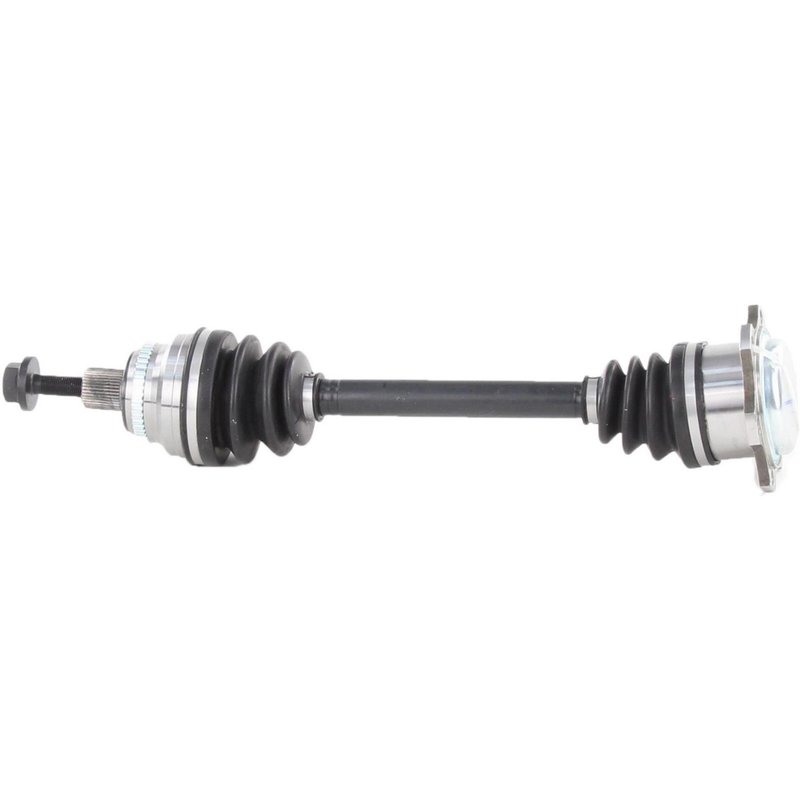

TrakMotive AD-8069 CV Axle Shaft - Front Right
| Brand | TrakMotive AD-8069 |
|---|---|
| Position | Front Right |
| Abs Ring Tooth Count | 45 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Bolt Hex Size (mm) | 27 |
| Axle Bolt Length (mm) | 97 |
| Axle Bolt Thread Size | M16*1.5 |
| Axle Nut Included | No |
| Boot Material | Neoprene |
| Inboard Joint Type | Flange |
| Inboard Shaft Connection Style | Flange |
| New Or Remanufactured | New |
| Number Of Bolt Holes | 1 |
| Number Of Outboard Shaft Bolts | 1 |
| Number Of Outboard Splines | 38 |
| Outboard Joint Type | Audi Style Spline Bolt |
| Outboard Shaft Connection Style | Audi Style Spline Bolt |
| Overall Compressed Length (in) | 19.25 |
| Overall Compressed Length (mm) | 489 |
| Product line | CV Axle Shaft |
| Fits | Audi · 14 vehicles |
New replacement part. Built as a fresh CV axle shaft for straightforward service.
Neoprene boot. Helps protect the joint from dirt and moisture.
Toothed ABS ring. Includes a 45-tooth tone ring for ABS applications.
Cross-references Cardone New 66-7245, Cardone Reman 60-7245 and Carlson 7508 for the same application. See all 20.
CV Axle Shaft for Audi Front Right Applications
TrakMotive AD-8069 is a new CV axle shaft for front right applications on select Audi 100, 100 Quattro, A6, and A6 Quattro models. It is built with Audi-style spline bolt outboard connection details and a flange-style inboard joint for direct replacement service on the listed vehicles.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: AD-8069
- Front right position
- New axle shaft construction
- Outboard joint type: Audi style spline bolt
- Inboard joint type: flange
- 38 outboard splines
- 45-tooth toothed ABS ring with tone ring included
- Neoprene boot material
- Axle bolt thread size: M16 x 1.5
- Axle bolt hex size: 27 mm
- Overall compressed length: 19.25 in. (489 mm)
Product Details
This TrakMotive CV axle shaft is engineered for the front right side of the Audi 100 and Audi A6 platform applications listed below. The AD-8069 uses a flange-style inboard connection and an Audi-style spline bolt outboard connection, along with a 38-spline outboard design and a toothed ABS ring with 45 teeth. TrakMotive identifies this axle as a new replacement part, and the neoprene boot material supports drivetrain service in demanding road conditions. TrakMotive AD-8069 is also listed with interchange references for common aftermarket cross-checking.
This part cross-references Cardone New 66-7245 and Cardone Reman 60-7245 for the same application.
What It Helps Fix
- Clicking or popping during turns from a worn outer CV joint
- Vibration or shudder under acceleration from axle wear
- Grease leakage caused by a damaged CV boot
- ABS warning concerns related to a failed tone ring or ring damage
- Driveline noise from a worn front right axle assembly
Installation Notes and Fitment
- Fits 1998 Audi A6, front right, to CH#4AW-005-000; CV Axle Shaft
- Fits 1998 Audi A6 Quattro, front right, to CH#4AW-005-000; CV Axle Shaft
- Fits 1995-1997 Audi A6, front right, CV Axle Shaft
- Fits 1995-1997 Audi A6 Quattro, front right, CV Axle Shaft
- Fits 1992-1994 Audi 100, front right, CV Axle Shaft
- Fits 1992-1994 Audi 100 Quattro, front right, CV Axle Shaft
Verify axle bolt thread size, spline count, ABS ring style, and vehicle build details before installation. The ABS axle configuration is noted by TrakMotive as fitting non-ABS applications unless otherwise specified. For 1998 Audi A6 and A6 Quattro models, confirm the chassis break point noted in the fitment data.
Quality Assurance
TrakMotive states that this CV axle shaft is produced by an ISO 9001:1007 and TS 16949:2009 certified company. The AD-8069 is backed by a limited lifetime warranty.
| Year | Make | Model | Submodel | Drive Type | Transmission | Position | Notes |
|---|---|---|---|---|---|---|---|
| 1998 | Audi | A6 | — | FWD | Automatic | Front Right | To CH#4AW-005-000; CV Axle Shaft |
| 1998 | Audi | A6 Quattro | Avant | — | Automatic | Front Right | To CH#4AW-005-000; CV Axle Shaft |
| 1997 | Audi | A6 | — | — | — | Front Right | CV Axle Shaft |
| 1997 | Audi | A6 Quattro | — | — | Automatic | Front Right | CV Axle Shaft |
| 1996 | Audi | A6 | — | — | — | Front Right | CV Axle Shaft |
| 1996 | Audi | A6 Quattro | — | — | Automatic | Front Right | CV Axle Shaft |
| 1995 | Audi | A6 | — | — | Automatic | Front Right | CV Axle Shaft |
| 1995 | Audi | A6 Quattro | — | — | Automatic | Front Right | CV Axle Shaft |
| 1994 | Audi | 100 | — | — | Automatic | Front Right | CV Axle Shaft |
| 1994 | Audi | 100 Quattro | — | — | Automatic | Front Right | CV Axle Shaft |
| 1993 | Audi | 100 | — | — | Automatic | Front Right | CV Axle Shaft |
| 1993 | Audi | 100 Quattro | — | — | Automatic | Front Right | CV Axle Shaft |
| 1992 | Audi | 100 | — | — | Automatic | Front Right | CV Axle Shaft |
| 1992 | Audi | 100 Quattro | — | — | Automatic | Front Right | CV Axle Shaft |
