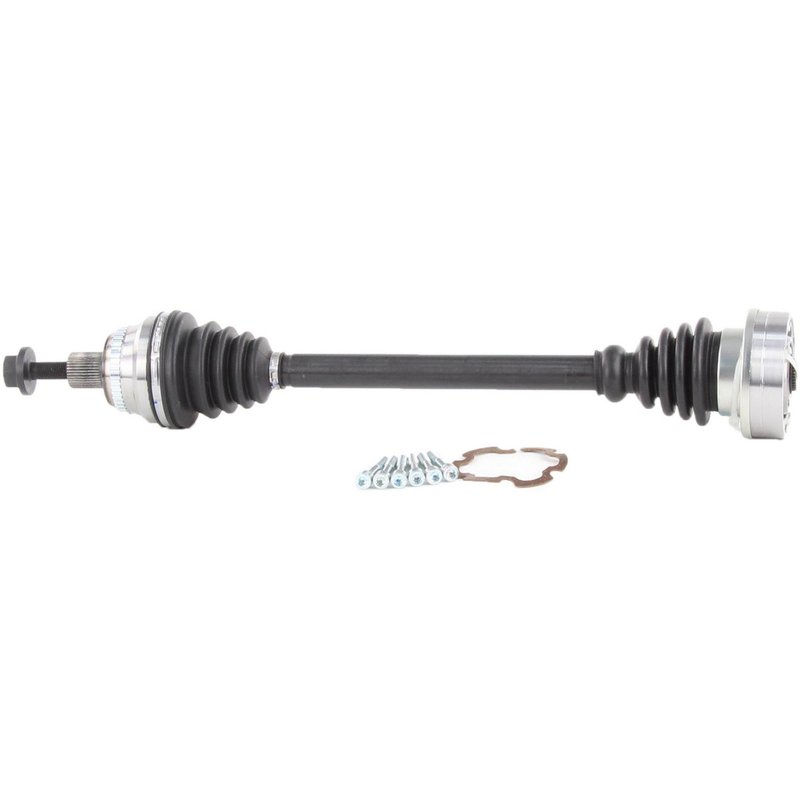

TrakMotive AD-8072 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft AD-8072

The TrakMotive CV Axle Shaft AD-8072 is engineered for reliable driveline performance in Audi 90 Quattro and Coupe Quattro models. Designed as a new replacement part, it ensures precise fitment and durability for your vehicle's front-wheel drive system.

• Compatible with Audi 90 Quattro and Coupe Quattro
• New CV Axle Shaft with part number AD-8072
• Neoprene boot material for enhanced durability
• Includes ABS tone ring with 45 toothed ring count
• Inboard bolt-on joint with 6 bolt holes and Allen head bolts
• Outboard Audi style spline bolt connection with 38 splines
• Overall compressed length of 591 mm (23.27 inches)

Detailed Product Features and Specifications

This TrakMotive CV Axle Shaft AD-8072 features a toothed ABS ring with 45 teeth, which is included to maintain proper ABS sensor function. The neoprene boot material provides resistance to wear and environmental factors, protecting the joint from contaminants. The inboard joint uses a bolt-on connection style with six M8x1.25 Allen head bolts, each 56.5 mm (2 2/9 inches) in length, ensuring secure attachment. The outboard joint employs an Audi style spline bolt connection with 38 splines and a single M16x1.5 bolt, 97 mm in length with a 27 mm hex size. This configuration supports precise torque transfer and reliable driveline operation. The overall compressed length of 591 mm (23.27 inches) matches factory specifications for proper fitment.

About the TrakMotive CV Axle Shaft Product Line

The TrakMotive CV Axle Shaft product line focuses on delivering new, direct-fit replacement CV axle shafts designed to meet OEM standards. This line emphasizes quality materials such as neoprene boots and precise ABS tone ring integration to maintain vehicle safety systems. The AD-8072 is part of this line, providing a reliable solution for Audi Quattro models requiring exact fit and function in their driveline components.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Audi 90 Quattro and Coupe Quattro
• Restores proper ABS sensor signal with included toothed ABS tone ring
• Eliminates axle vibration or clicking noises caused by joint wear
• Prevents grease leakage and contamination with durable neoprene boot
• Ensures secure axle connection with factory-style bolt-on joints

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft AD-8072, verify compatibility with your Audi 90 Quattro or Coupe Quattro model year. Use the specified torque values for the M16x1.5 outboard bolt and M8x1.25 inboard bolts to ensure proper fastening. The included ABS tone ring must be aligned correctly to maintain ABS sensor functionality. Inspect the axle shaft and surrounding components for wear during installation and replace any damaged parts as needed.

Quality Assurance and Warranty

This CV Axle Shaft is a new, remanufactured part built to meet or exceed OEM specifications. TrakMotive products undergo quality control inspections to ensure durability and fitment accuracy. Warranty coverage details should be confirmed with the distributor or manufacturer, as they may vary by region.
