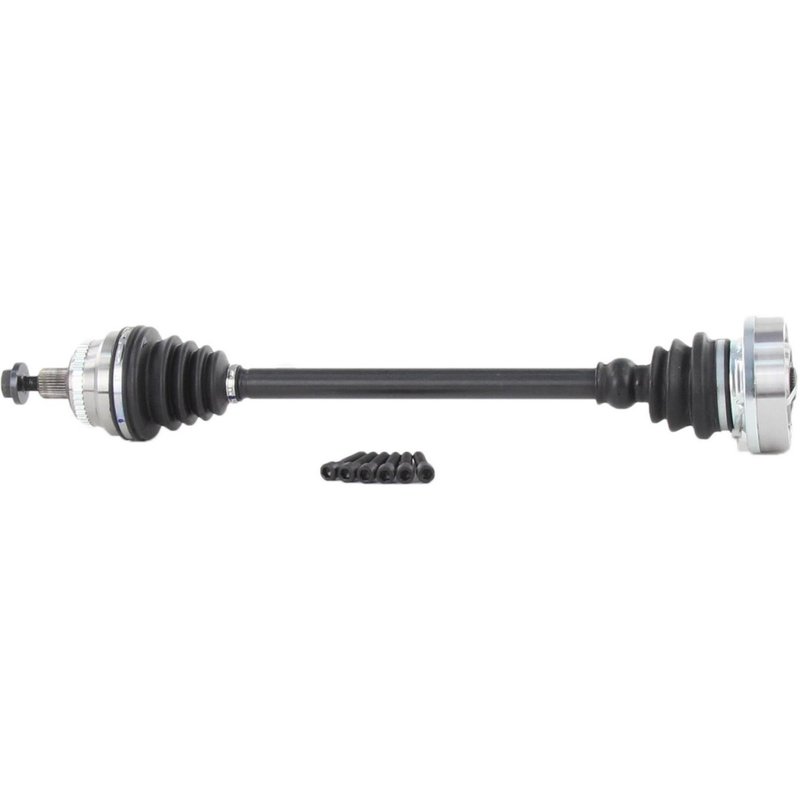

TrakMotive AD-8074 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft AD-8074

The TrakMotive CV Axle Shaft AD-8074 is engineered for reliable driveline performance in Audi 80 and 90 models. Designed as a new replacement part, it ensures precise fitment and durability for your vehicle's front axle assembly.

• Compatible with Audi 80 and Audi 90 models
• New, not remanufactured, for consistent quality
• Includes ABS tone ring with 45 toothed ring count
• Neoprene boot material for enhanced durability
• Inboard joint features bolt-on style with Allen head bolts
• Outboard joint uses Audi style spline bolt connection
• Overall compressed length of 24.72 inches (628 mm)
• Axle bolt specifications: 23.8 mm hex size, 93 mm length, M14*1.5 thread size

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components tailored for specific vehicle applications. This CV Axle Shaft AD-8074 is part of that line, offering a bolt-on inboard joint and an Audi style spline bolt outboard joint connection. The inclusion of a toothed ABS tone ring supports proper ABS sensor function, which is critical for vehicle safety systems.

Technical Specifications and Features

This CV axle shaft features a neoprene boot designed to resist wear and environmental damage, extending the life of the joint. The inboard joint uses six M10*1.5 Allen head bolts with a 55 mm length, ensuring secure attachment. The outboard side has a single bolt hole and 33 splines, matching the Audi style spline bolt connection. The axle bolts have a 23.8 mm hex size and 93 mm length, with M14*1.5 thread size, providing compatibility with factory hardware. The included ABS tone ring has 45 teeth and a toothed ring type, which is essential for accurate wheel speed sensor readings.

Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Audi 80 and 90 models
• Resolves issues related to torn or leaking CV boots
• Addresses ABS sensor errors caused by faulty or missing tone rings
• Eliminates axle vibration or clicking noises during turns
• Restores proper driveline function after axle shaft failure

Installation Notes and Tips

Installation requires removal of the existing axle shaft and careful alignment of the bolt-on inboard joint and Audi style spline bolt outboard joint. Use the specified bolt sizes: six M10*1.5 Allen bolts for the inboard joint and one M14*1.5 bolt for the outboard side. Ensure the neoprene boot is properly seated to prevent contamination. Verify the ABS tone ring is correctly positioned to maintain sensor accuracy. Torque all bolts to manufacturer specifications for safety and performance.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft AD-8074 is a new part manufactured to meet OEM standards for fit and function. It includes a toothed ABS tone ring to maintain ABS system integrity. While specific warranty details are not provided, TrakMotive parts typically adhere to industry quality controls to ensure reliability in Audi 80 and 90 applications.
