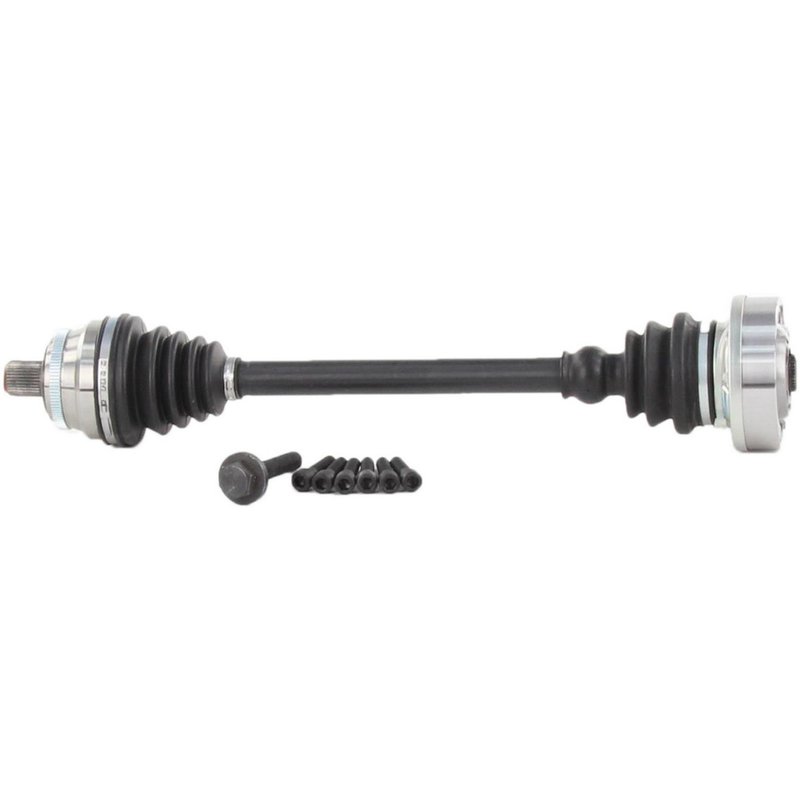

TrakMotive AD-8077 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft AD-8077

The TrakMotive CV Axle Shaft AD-8077 is engineered for reliable driveline performance in Audi 80, 80 Quattro, 90, and 90 Quattro models. Designed to meet OEM specifications, this new axle shaft ensures precise fitment and durability for your vehicle's front-wheel or all-wheel drive system.

• Compatible with Audi 80, 80 Quattro, 90, and 90 Quattro
• Includes a 96-tooth ABS ring with a toothed tone ring for accurate wheel speed sensing
• Neoprene boot material for enhanced protection against contaminants
• Inboard joint features a bolt-on connection with 6 bolt holes and Allen head bolts
• Outboard joint uses Audi style spline bolt connection with 33 splines
• Overall compressed length of 22.52 inches (572 mm) for exact fitment
• Axle bolts sized M14*1.5 with 23.8 mm hex size and 93 mm length

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering direct replacement CV components that maintain vehicle driveline integrity. This line emphasizes precise engineering, including ABS tone ring integration and robust boot materials like neoprene to withstand harsh driving conditions. The AD-8077 model exemplifies these qualities with its bolt-on inboard joint and Audi style spline outboard joint, ensuring compatibility and ease of installation for specific Audi models.

Technical Specifications and Features

The AD-8077 CV Axle Shaft is equipped with a 96-tooth ABS ring featuring a toothed tone ring included for seamless integration with the vehicle's anti-lock braking system. The neoprene boot material offers resistance to wear and environmental damage, extending the life of the joint. The inboard joint uses a bolt-on style with six Allen head bolts (M10*1.5 thread size, 55 mm length), while the outboard joint connects via an Audi style spline bolt with 33 splines and a single bolt hole. Axle bolts are M14*1.5 thread size, 23.8 mm hex size, and 93 mm in length, designed for secure attachment without including axle nuts.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Audi 80 and 90 series vehicles
• Restores proper ABS sensor function with included toothed ABS tone ring
• Eliminates axle vibration and noise caused by joint wear or boot failure
• Prevents grease leakage and contamination with durable neoprene boots
• Ensures secure driveline connection with factory-style bolt-on joints

Installation Notes and Tips

• Verify compatibility with Audi 80, 80 Quattro, 90, or 90 Quattro before installation
• Use appropriate torque specifications for M14*1.5 axle bolts and M10*1.5 inboard bolts
• Inspect surrounding components such as wheel bearings and seals during replacement
• Ensure ABS sensor wiring is properly routed and connected to avoid errors
• Lubricate splines and joints as recommended to facilitate assembly and prevent premature wear

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft AD-8077 is a new, direct replacement part manufactured to meet or exceed OEM standards. It includes a toothed ABS tone ring for accurate sensor performance and is constructed with durable neoprene boots to resist environmental damage. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliable operation and fitment for Audi 80 and 90 series vehicles.
