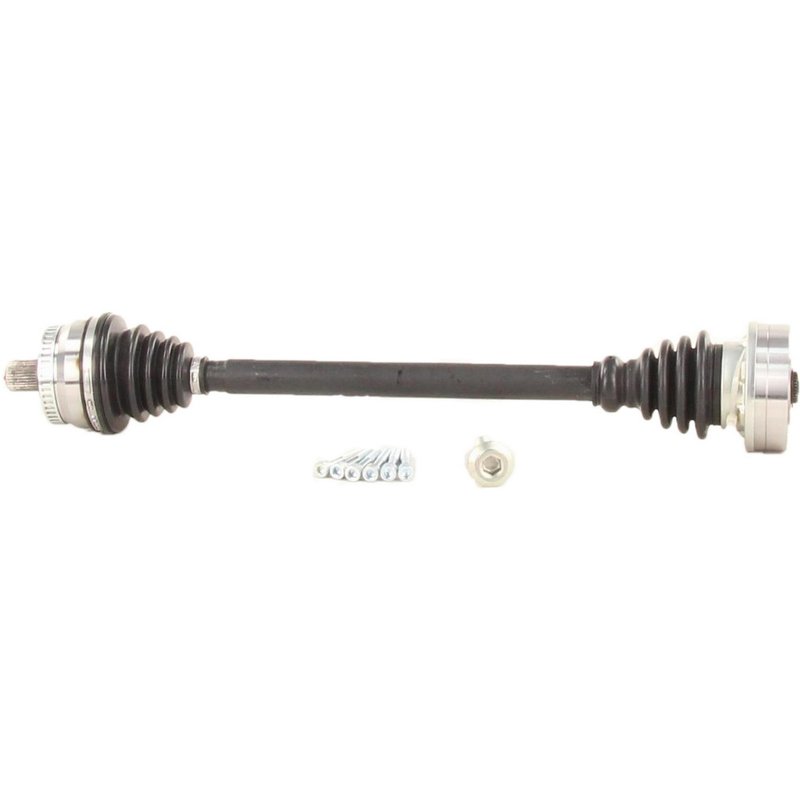

TrakMotive AD-8080 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft AD-8080

The TrakMotive CV Axle Shaft AD-8080 is engineered for reliable driveline performance in Audi and Volkswagen vehicles. Designed specifically for models like the Audi A4 Quattro and Volkswagen Passat, this new axle shaft ensures precise fitment and durability.

• Compatible with Audi A4 Quattro and Volkswagen Passat
• Includes ABS tone ring with 45 window-type teeth
• Neoprene boot material for enhanced durability
• Inboard bolt-on joint with 6 bolt holes and Allen head bolts
• Outboard Audi style spline bolt connection with 33 splines
• Overall compressed length of 25.08 inches (637 mm)
• Axle bolt specifications: M14*1.5 thread size, 23.8 mm hex size, 85 mm length

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components tailored for specific vehicle applications. This line emphasizes quality materials and exact fitment, such as the bolt-on inboard joint and Audi style spline outboard connection found in the AD-8080. These features contribute to consistent performance and ease of installation in compatible Audi and Volkswagen models.

Technical Specifications and Features

The AD-8080 CV Axle Shaft features a 45-tooth window-type ABS ring included for accurate wheel speed sensor readings. The neoprene boot material offers resistance to wear and environmental factors, extending the life of the joint. The inboard joint uses a bolt-on style with six M8*1.25 Allen head bolts, ensuring secure attachment. The outboard joint employs an Audi style spline bolt connection with 33 splines and a single bolt hole, matching factory specifications. The axle bolts have a 23.8 mm hex size, M14*1.5 thread, and 85 mm length, designed for proper torque and fit. Overall compressed length measures 25.08 inches (637 mm), aligning with OEM dimensions.

Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Audi A4 Quattro and Volkswagen Passat
• Restores proper ABS sensor function with included tone ring
• Eliminates vibrations and noise caused by joint wear or boot failure
• Prevents grease leakage and contamination with durable neoprene boot
• Ensures secure driveline connection with factory-style bolt and spline interfaces

Installation Notes and Tips

• Verify compatibility with vehicle make, model, and year before installation
• Use proper torque specifications for axle and inboard bolts to avoid damage
• Inspect surrounding components such as wheel bearings and suspension for wear
• Ensure ABS sensor alignment with the included tone ring during assembly
• Replace axle nuts separately as they are not included with this part

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft AD-8080 is a new, not remanufactured, component built to meet OEM standards. Manufactured with quality materials including a neoprene boot and precision-machined joints, it supports reliable driveline operation. Warranty details should be confirmed with the distributor or manufacturer to ensure coverage.
