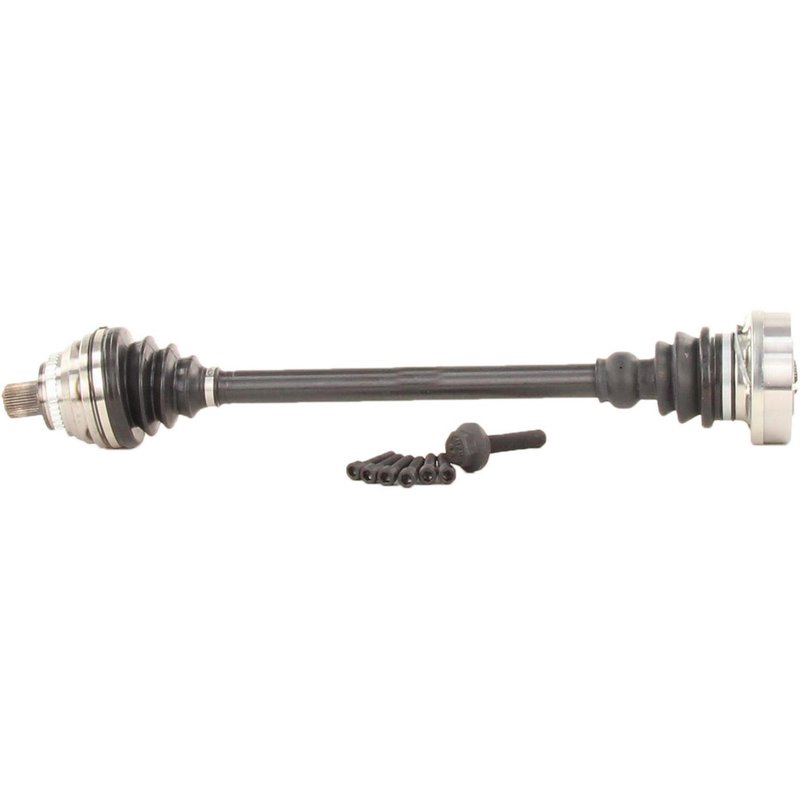

TrakMotive AD-8082 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft AD-8082

The TrakMotive CV Axle Shaft AD-8082 is engineered for reliable driveline performance in select Audi models. Designed to meet OEM specifications, this new axle shaft ensures proper fit and function for vehicles like the Audi 100 Quattro, A6 Quattro, S4, and S6.

• Compatible with Audi 100 Quattro, A6 Quattro, S4, and S6 models
• New, not remanufactured, for consistent quality
• Neoprene boot material for enhanced durability
• Includes ABS tone ring with 45 toothed ring count
• Inboard bolt-on joint with 6 bolt holes and Allen head bolts
• Outboard Audi style spline bolt connection with 38 splines
• Overall compressed length of 664.5 mm (26.16 inches)
• Axle bolt specifications: 27 mm hex size, 97 mm length, M16*1.5 thread size

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft line focuses on delivering precise driveline components tailored for specific vehicle applications. This product line emphasizes exact fitment and durability, incorporating features such as bolt-on inboard joints and Audi style spline bolt connections to maintain factory performance standards. The AD-8082 model exemplifies this approach by combining robust materials and detailed engineering to support the driveline system of compatible Audi vehicles.

Technical Specifications and Features

The AD-8082 CV Axle Shaft includes a neoprene boot designed to resist wear and environmental damage. It features a toothed ABS ring with 45 teeth, which is included to maintain accurate wheel speed sensor readings. The inboard joint uses a bolt-on style with six Allen head bolts (M10*1.5 thread size, 55 mm length), ensuring secure attachment. The outboard joint employs an Audi style spline bolt connection with 38 splines and a single bolt hole for proper alignment and torque. The axle bolts have a 27 mm hex size, 97 mm length, and M16*1.5 thread size, though the axle nut is not included. The overall compressed length measures 664.5 mm (26.16 inches), matching OEM dimensions for proper driveline geometry.

Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Audi 100 Quattro, A6 Quattro, S4, and S6
• Addresses issues with torn or leaking CV boots
• Resolves ABS sensor errors related to damaged or missing tone rings
• Corrects driveline vibrations caused by worn or bent axle shafts
• Restores proper wheel speed sensor function with included ABS tone ring

Installation Notes and Tips

Installation requires proper torque specifications for axle bolts and inboard joint bolts. The included ABS tone ring must be aligned correctly to ensure accurate sensor readings. Use appropriate tools for the 27 mm axle bolt hex and 8 mm Allen head inboard bolts. Verify the compressed length matches OEM requirements to maintain driveline geometry. Note that the axle nut is not included and must be sourced separately. Inspect surrounding components during installation for wear or damage.

Quality Assurance and Warranty

This TrakMotive CV Axle Shaft AD-8082 is a new part manufactured to meet or exceed OEM standards. It undergoes quality control inspections to ensure dimensional accuracy and material integrity. While specific warranty details are not provided, new TrakMotive parts typically come with a limited warranty against defects in materials and workmanship. Consult the supplier or manufacturer for exact warranty terms.
