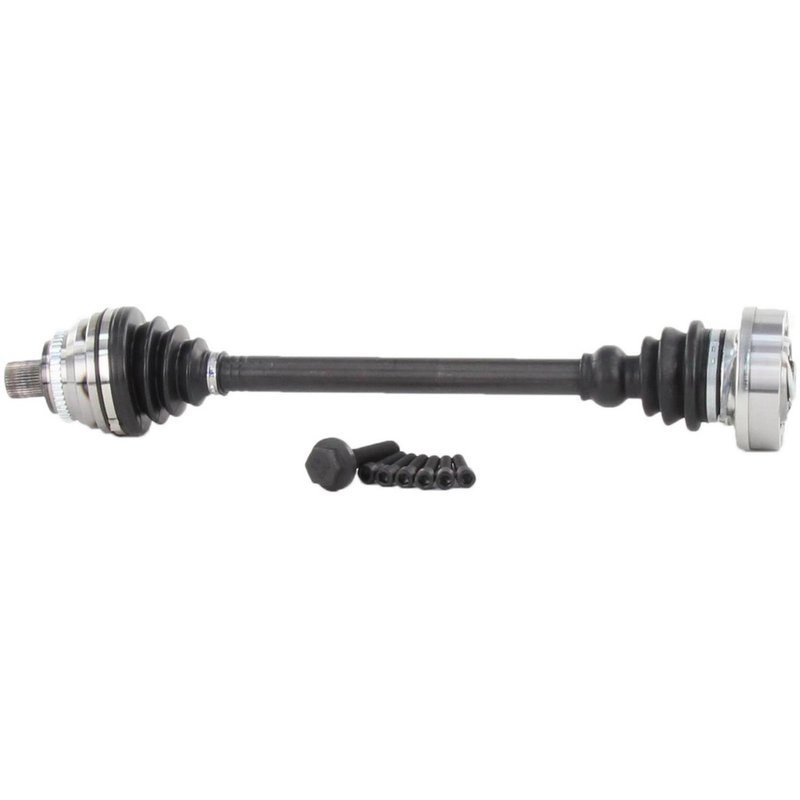

TrakMotive AD-8083 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft AD-8083

The TrakMotive CV Axle Shaft AD-8083 is engineered for reliable driveline performance in select Audi models. Designed to meet precise specifications, this new axle shaft ensures proper fit and function for vehicles like the Audi 100 Quattro, A6 Quattro, S4, and S6.

• Compatible with Audi 100 Quattro, A6 Quattro, S4, and S6 models
• Includes a neoprene boot for enhanced durability
• Features a 45-tooth ABS ring with a toothed design
• Outboard joint uses Audi style spline bolt connection with 38 splines
• Inboard joint is bolt-on type with 6 bolt holes and Allen head bolts
• Axle bolt specifications: 27 mm hex size, 97 mm length, M16*1.5 thread size
• Overall compressed length of 626 mm (24.65 inches)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components tailored for specific vehicle applications. This line emphasizes exact fitment and durability, incorporating features such as ABS tone rings and robust boot materials. The AD-8083 model exemplifies this approach by combining a bolt-on inboard joint and an Audi style spline bolt outboard joint to maintain OEM-level performance and compatibility.

Technical Description and Specifications

The AD-8083 CV Axle Shaft is a new, not remanufactured, component designed to replace worn or damaged axles in compatible Audi vehicles. It includes a neoprene boot that resists wear and environmental damage. The ABS ring has 45 teeth and a toothed design, with the tone ring included to maintain proper ABS sensor function. The inboard joint connects via six M10*1.5 Allen head bolts, each 55 mm in length, ensuring secure attachment. The outboard joint features an Audi style spline bolt connection with 38 splines and a single bolt hole. Axle bolts have a 27 mm hex size, 97 mm length, and M16*1.5 thread size, though the axle nut is not included. The overall compressed length measures 626 mm (24.65 inches), matching OEM specifications for proper driveline geometry.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Audi 100 Quattro, A6 Quattro, S4, and S6
• Restores proper ABS sensor function with included toothed ABS tone ring
• Eliminates axle vibration or clicking noises caused by joint wear
• Prevents grease leakage with durable neoprene boot
• Ensures secure driveline connection with OEM-style bolt and spline configurations

Installation Notes and Tips

• Verify compatibility with specific Audi model and year before installation
• Use appropriate torque specifications for axle and inboard joint bolts
• Inspect surrounding components such as wheel bearings and seals during replacement
• Ensure ABS sensor alignment with the toothed ABS ring for accurate readings
• Replace axle nut separately as it is not included with this part

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft AD-8083 is manufactured to meet or exceed OEM standards for fit and function. This new axle shaft undergoes quality control inspections to ensure durability and performance. Warranty coverage details should be confirmed with the distributor or manufacturer, as they may vary by region.
