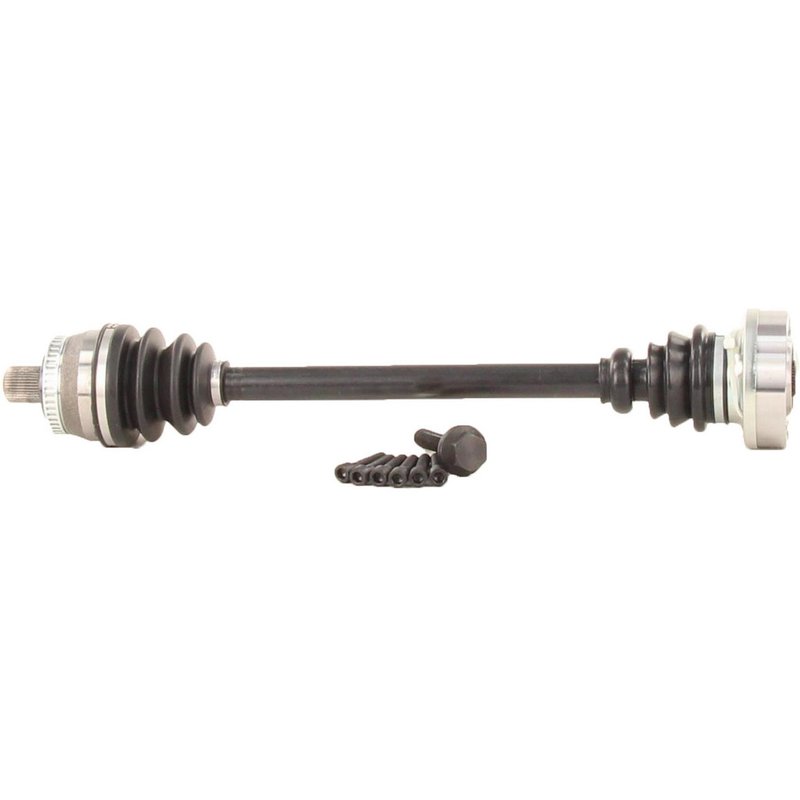

TrakMotive AD-8087 CV Axle Shaft - Front Left or Front Right

Overview of TrakMotive CV Axle Shaft AD-8087

The TrakMotive CV Axle Shaft AD-8087 is engineered for reliable driveline performance in Audi vehicles. Designed specifically for Audi A6 Quattro and S4 models, this new axle shaft ensures precise fitment and durability for your vehicle's CV components.

• Compatible with Audi A6 Quattro and S4 models
• New, not remanufactured, for consistent quality
• Neoprene boot material for enhanced durability
• Includes ABS tone ring with 45 window-type teeth
• Inboard bolt-on joint with 6 bolt holes and Allen head bolts
• Outboard Audi style spline bolt connection with 38 splines
• Overall compressed length of 25.04 inches (636 mm)
• Axle bolt specifications: 27 mm hex size, 97 mm length, M16*1.5 thread size

Detailed Product Description

The TrakMotive CV Axle Shaft AD-8087 is part of the CV Axle Shaft product line, designed to meet the specific driveline needs of Audi vehicles. This axle shaft features a bolt-on inboard joint with six M10*1.5 Allen head bolts, providing secure attachment and ease of installation. The outboard joint uses an Audi style spline bolt connection with 38 splines, ensuring compatibility with the vehicle's drivetrain. The neoprene boot material offers resistance to wear and environmental factors, protecting the joint from contaminants.

Equipped with a window-type ABS tone ring containing 45 teeth, this axle shaft supports accurate ABS sensor readings for improved vehicle safety systems. The axle bolt has a 27 mm hex size and measures 97 mm in length with an M16*1.5 thread, designed to match factory specifications. The overall compressed length of 25.04 inches (636 mm) ensures proper fitment within the driveline assembly.

Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Audi A6 Quattro and S4
• Restores proper ABS sensor function with included tone ring
• Eliminates driveline vibrations caused by faulty or bent axles
• Prevents grease leakage and joint contamination with durable neoprene boot
• Ensures secure connection with factory-style bolt-on joints and hardware

Installation Notes and Tips

• Verify vehicle compatibility with Audi A6 Quattro and S4 models before installation
• Use appropriate tools for 27 mm axle bolt and 8 mm Allen inboard bolts
• Inspect surrounding components for wear during replacement
• Torque bolts to manufacturer specifications to ensure secure fitment
• Check ABS sensor alignment after installation to maintain system accuracy

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft AD-8087 is a new, high-quality replacement part manufactured to meet OEM standards. It includes an ABS tone ring to maintain vehicle safety system functionality. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliable performance and durability in Audi A6 Quattro and S4 applications.
