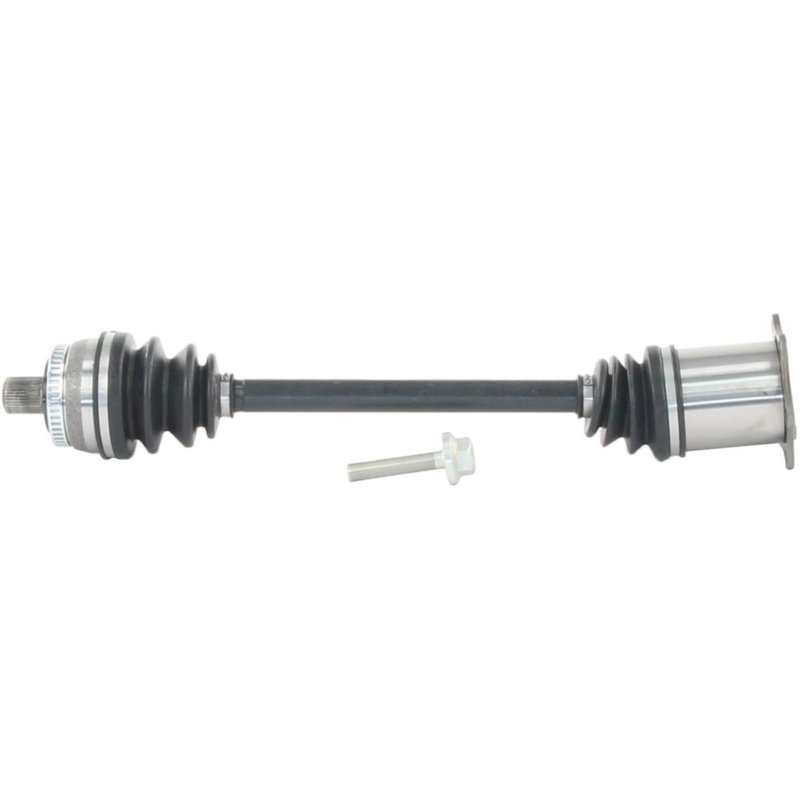

TrakMotive AD-8091 CV Axle Shaft - Front Left

Overview of the TrakMotive CV Axle Shaft AD-8091

The TrakMotive CV Axle Shaft AD-8091 is engineered for reliable driveline performance in Audi vehicles, specifically the A4, RS4, and S4 models. Designed as a new replacement part, it ensures precise fitment and durability for your vehicle's front axle assembly.

• Compatible with Audi A4, RS4, and S4 models
• New CV Axle Shaft from TrakMotive's CV Axle Shaft product line
• Overall compressed length of 592 mm (23.31 inches)
• Neoprene boot material for enhanced durability
• Includes ABS tone ring with 45 window-type teeth
• Flange-type inboard joint and flange shaft connection
• Outboard joint and shaft connection use Audi style spline bolt with 38 splines
• Axle bolt specifications: 27 mm hex size, 97 mm length, M16x1.5 thread size
• Single bolt hole for inboard and outboard shaft connections

Detailed Product Description

The TrakMotive CV Axle Shaft AD-8091 is part of the CV Axle Shaft product line, which focuses on delivering precise driveline components tailored for specific vehicle applications. This CV axle shaft is designed to meet the exact specifications required by Audi A4, RS4, and S4 models, ensuring proper fit and function. The neoprene boot material provides resistance to wear and environmental factors, protecting the joint from contaminants and extending service life.

The axle features a flange-type inboard joint and shaft connection, which simplifies installation and maintains secure attachment. The outboard joint uses an Audi style spline bolt connection with 38 splines, matching factory specifications for these Audi models. Additionally, the included ABS tone ring with 45 window-type teeth supports accurate ABS sensor readings, contributing to vehicle safety systems.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Audi A4, RS4, and S4
• Resolves issues related to torn or leaking CV boots
• Addresses axle shaft vibration or clicking noises during turns
• Restores proper ABS sensor function with included tone ring
• Fixes axle bolt or joint wear affecting driveline stability

Installation Notes and Tips

• Verify compatibility with your specific Audi model and year before installation
• Use proper torque specifications for the M16x1.5 axle bolt (27 mm hex, 97 mm length)
• Inspect surrounding components such as wheel bearings and suspension parts during replacement
• Ensure the ABS tone ring is correctly positioned to maintain sensor accuracy
• Professional installation is recommended to maintain driveline integrity

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft AD-8091 is a new, high-quality replacement part manufactured to meet OEM standards. It includes an ABS tone ring to maintain vehicle safety system functionality. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliable performance and fitment for Audi A4, RS4, and S4 vehicles.
