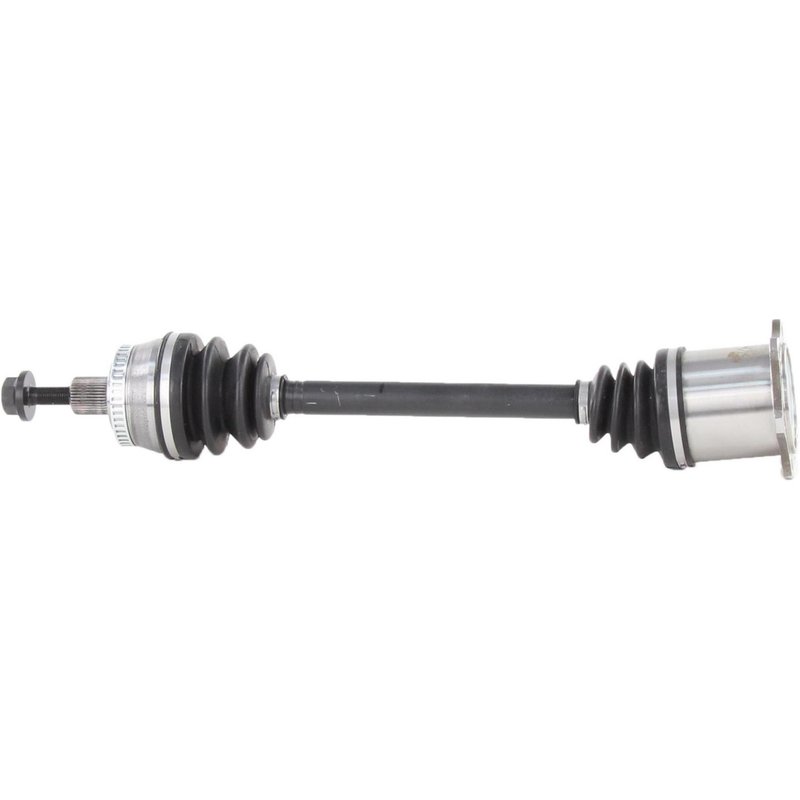

TrakMotive AD-8096 CV Axle Shaft - Front Left or Front Right
| Brand | TrakMotive AD-8096 |
|---|---|
| Position | Front Left |
| Abs Ring Tooth Count | 45 |
| Abs Ring Type | Window |
| Abs Tone Ring Included | Yes |
| Axle Bolt Hex Size (mm) | 27 |
| Axle Bolt Length (mm) | 97 |
| Axle Bolt Thread Size | M16*1.5 |
| Axle Nut Included | No |
| Boot Material | Neoprene |
| Inboard Joint Type | Flange |
| Inboard Shaft Connection Style | Flange |
| New Or Remanufactured | New |
| Number Of Bolt Holes | 1 |
| Number Of Outboard Shaft Bolts | 1 |
| Number Of Outboard Splines | 38 |
| Outboard Joint Type | Audi Style Spline Bolt |
| Outboard Shaft Connection Style | Audi Style Spline Bolt |
| Overall Compressed Length (in) | 20.71 |
| Overall Compressed Length (mm) | 526 |
| Product line | CV Axle Shaft |
| Fits | Audi · 25 vehicles |
New assembly. Built as a complete CV axle shaft for straightforward replacement.
Neoprene boot. Helps protect the joint with durable, flexible sealing material.
ABS tone ring included. Ready for applications that use wheel speed sensing.
Cross-references Cardone Reman 60-7350, TrakMotive AD-8096 and 8E0407271BE for the same application. See all 19.
CV Axle Shaft for Audi A4
TrakMotive AD-8096 is a new CV axle shaft for front-wheel and quattro applications listed for select Audi A4 and Audi A4 Quattro models. It is built with a neoprene boot, a flange-style inboard connection, and an Audi-style spline bolt outboard joint for the specified fitments.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: AD-8096
- New construction
- Overall compressed length: 526 mm (20.71 in.)
- 38 outboard splines
- 45-tooth ABS ring with window-style tone ring included
- Axle bolt thread size: M16 x 1.5
- Axle bolt hex size: 27 mm
- Axle bolt length: 97 mm
- Inboard joint type: flange
- Outboard joint type: Audi-style spline bolt
Product Details
The TrakMotive CV Axle Shaft line focuses on direct-fit driveline replacement parts for passenger vehicles. AD-8096 is specified for Audi A4 front axle applications and Audi A4 Quattro front left coverage, with fitment listed for 2002-2009 Audi A4 and 2005-2006 Audi A4 Quattro in the positions shown below. This part cross-references Cardone Reman 60-7350 for the same application.
Use AD-8096 when replacing a worn or damaged front CV axle on an Audi A4 or Audi A4 Quattro with the matching spline, bolt, and ABS configuration. The included ABS tone ring and the listed shaft dimensions help support proper sensor and hub interface on the covered vehicles.
What It Helps Address
- Clicking or popping during turns from worn CV joints
- Vibration under acceleration from a damaged axle shaft
- Grease leakage from a torn or deteriorated boot
- ABS warning concerns related to a failed tone ring or incorrect axle specification
- Driveline noise caused by excessive axle wear
Installation Notes
Verify axle bolt thread size, hex size, compressed length, spline count, and ABS ring details before installation. ABS axles fit non-ABS applications unless otherwise noted by the vehicle listing. Confirm the vehicle position and note details carefully, especially for 2009 Audi A4 front left and front right applications and 2005 Audi A4 front left from VIN 400001.
- Fits 2009 Audi A4, front right, exc. Cabriolet
- Fits 2009 Audi A4, front left, exc. Cabriolet
- Fits 2002-2008 Audi A4, front right
- Fits 2006-2008 Audi A4, front left
- Fits 2002-2004 Audi A4, front left
- Fits 2005-2006 Audi A4 Quattro, front left
- Fits 2005 Audi A4, front left, from VIN 400001
Quality Assurance
TrakMotive lists this CV axle shaft as a new part from an ISO 9001:1007 and TS 16949:2009 certified company. The manufacturer also states a limited lifetime warranty.
| Year | Make | Model | Submodel | Body Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|
| 2009 | Audi | A4 | — | — | Automatic CVT | — | — | Front Right | Exc. Cabriolet; CV Axle Shaft |
| 2009 | Audi | A4 | — | — | Automatic CVT | — | — | Front Left | Exc. Cabriolet; CV Axle Shaft |
| 2008 | Audi | A4 | — | — | Automatic CVT | — | — | Front Right | CV Axle Shaft |
| 2008 | Audi | A4 | — | — | Automatic CVT | — | — | Front Left | CV Axle Shaft |
| 2007 | Audi | A4 | — | — | Automatic CVT | — | — | Front Right | CV Axle Shaft |
| 2007 | Audi | A4 | — | — | Automatic CVT | — | — | Front Left | CV Axle Shaft |
| 2006 | Audi | A4 | — | — | Automatic CVT | — | — | Front Right | CV Axle Shaft |
| 2006 | Audi | A4 | — | — | Automatic CVT | — | — | Front Left | CV Axle Shaft |
| 2006 | Audi | A4 Quattro | — | — | — | 3.0L | V6 | Front Left | CV Axle Shaft |
| 2005 | Audi | A4 | Base | — | Automatic CVT | — | — | Front Right | CV Axle Shaft |
| 2005 | Audi | A4 | Base | — | Automatic CVT | 2.0L | L4 | Front Left | From VIN 400001; CV Axle Shaft |
| 2005 | Audi | A4 Quattro | — | Sedan | — | 3.0L | V6 | Front Left | CV Axle Shaft |
| 2005 | Audi | A4 Quattro | — | — | Automatic | 1.8L | L4 | Front Left | CV Axle Shaft |
| 2004 | Audi | A4 | — | — | Automatic | — | — | Front Right | CV Axle Shaft |
| 2004 | Audi | A4 | — | — | Automatic | — | — | Front Left | CV Axle Shaft |
| 2004 | Audi | A4 | — | — | Automatic CVT | — | — | Front Right | CV Axle Shaft |
| 2004 | Audi | A4 | — | — | Automatic CVT | — | — | Front Left | CV Axle Shaft |
| 2003 | Audi | A4 | — | — | Automatic | — | — | Front Right | CV Axle Shaft |
| 2003 | Audi | A4 | — | — | Automatic | — | — | Front Left | CV Axle Shaft |
| 2003 | Audi | A4 | — | — | Automatic CVT | — | — | Front Right | CV Axle Shaft |
| 2003 | Audi | A4 | — | — | Automatic CVT | — | — | Front Left | CV Axle Shaft |
| 2002 | Audi | A4 | — | — | Automatic | — | — | Front Right | CV Axle Shaft |
| 2002 | Audi | A4 | — | — | Automatic | — | — | Front Left | CV Axle Shaft |
| 2002 | Audi | A4 | — | — | Automatic CVT | — | — | Front Right | CV Axle Shaft |
| 2002 | Audi | A4 | — | — | Automatic CVT | — | — | Front Left | CV Axle Shaft |
