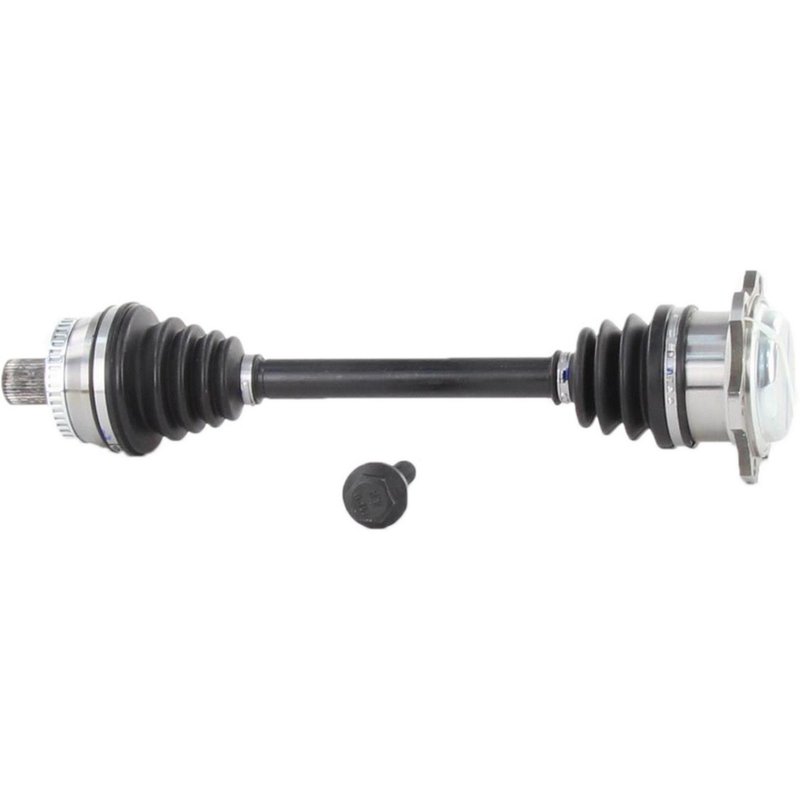

TrakMotive AD-8098 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft AD-8098

The TrakMotive CV Axle Shaft AD-8098 is designed specifically for Audi A4 Quattro and Volkswagen Passat models. This new CV axle shaft ensures reliable driveline performance with precise fitment and durable construction.

• Compatible with Audi A4 Quattro and Volkswagen Passat
• New CV axle shaft with part number AD-8098
• Neoprene boot material for enhanced durability
• Includes ABS tone ring with 45 window-type teeth
• Flange type inboard joint and Audi style spline bolt outboard joint
• Overall compressed length of 502 mm (19.76 inches)
• Axle bolt specifications: 27 mm hex size, 97 mm length, M16*1.5 thread size

Detailed Product Features and Specifications

This TrakMotive CV Axle Shaft AD-8098 is part of the CV Axle Shaft product line, which focuses on delivering precise driveline components engineered for specific vehicle applications. The axle shaft features a neoprene boot that provides resistance to wear and environmental factors, helping to maintain joint integrity over time. The inboard joint uses a flange connection style, while the outboard joint employs an Audi style spline bolt connection with 38 splines, ensuring a secure and exact fit for the specified vehicles.

The included ABS tone ring has 45 window-type teeth, which is essential for proper ABS sensor function. The axle bolt has a 27 mm hex size, 97 mm length, and M16*1.5 thread size, designed to meet factory specifications. Note that the axle nut is not included with this part.

Applications and Common Repair Uses

• Replacement of worn or damaged CV axle shafts on Audi A4 Quattro and Volkswagen Passat
• Restoring proper ABS sensor operation with included ABS tone ring
• Addressing axle shaft joint noise or vibration issues
• Fixing torn or degraded CV boots to prevent grease leakage
• Repairing driveline components after axle shaft failure or accident damage

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft AD-8098, ensure the axle bolt specifications match your vehicle’s requirements. The 27 mm hex size and M16*1.5 thread size bolts should be torqued to manufacturer specifications. Verify the ABS tone ring is properly aligned to maintain ABS sensor accuracy. Since the axle nut is not included, reuse the original nut or source a compatible replacement. Proper lubrication of the joints and careful handling of the neoprene boot will help extend the service life of the axle shaft.

Quality Assurance and Warranty Information

The TrakMotive CV Axle Shaft AD-8098 is a new, OEM-quality replacement part designed to meet or exceed factory standards for fit and function. Manufactured with durable materials and precise engineering, this axle shaft supports reliable driveline performance. Warranty coverage details should be confirmed with the distributor or manufacturer, as they may vary by region or supplier.
