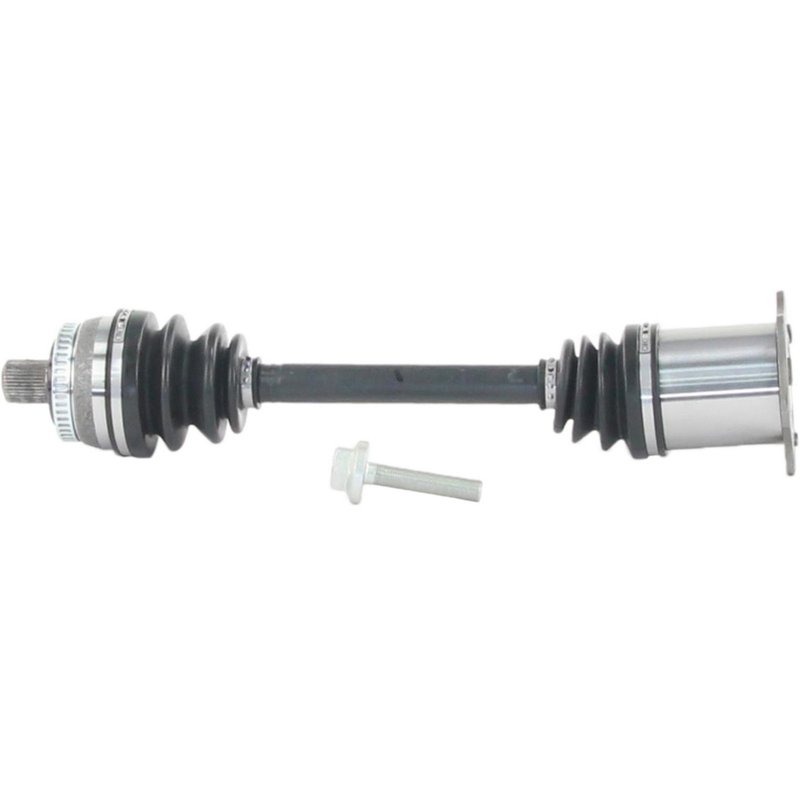

TrakMotive AD-8099 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft AD-8099 for Audi A4 Quattro

The TrakMotive CV Axle Shaft AD-8099 is engineered specifically for the Audi A4 Quattro, providing reliable driveline performance. Designed as a new replacement part, it ensures precise fitment and durability for your vehicle's CV components.

• Compatible with Audi A4 Quattro models
• New CV axle shaft with flange inboard joint
• Neoprene boot material for enhanced durability
• Includes ABS tone ring with 45 window-type teeth
• Axle bolt specifications: 27mm hex size, 97mm length, M16*1.5 thread
• Outboard joint features Audi style spline bolt with 38 splines
• Overall compressed length of 521mm (20.51 inches)

Detailed Features of the TrakMotive CV Axle Shaft AD-8099

This CV axle shaft from TrakMotive's CV Axle Shaft product line is designed to meet the specific requirements of the Audi A4 Quattro. The inboard joint uses a flange connection style, ensuring a secure and stable fit. The neoprene boot material offers resistance to wear and environmental factors, protecting the joint from contaminants. The included ABS tone ring with 45 window-type teeth supports proper ABS sensor function, which is critical for vehicle safety systems.

The outboard joint utilizes an Audi style spline bolt connection with 38 splines, matching factory specifications for seamless integration. The axle bolts have a 27mm hex size and a length of 97mm with M16*1.5 threading, though the axle nut is not included. The overall compressed length of 521mm (20.51 inches) ensures correct fitment within the driveline assembly.

About the TrakMotive CV Axle Shaft Product Line

The TrakMotive CV Axle Shaft product line focuses on delivering precise replacement CV components tailored to specific vehicle applications. This line emphasizes compatibility and quality, providing new axle shafts that meet or exceed OEM standards. The AD-8099 model exemplifies this approach by offering a direct-fit solution for the Audi A4 Quattro, incorporating essential features like ABS tone rings and durable boot materials.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Audi A4 Quattro
• Restores proper ABS sensor function with included tone ring
• Eliminates axle vibration or clicking noises during turns
• Prevents grease leakage with durable neoprene boot
• Addresses driveline instability caused by joint wear

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft AD-8099, ensure the flange and spline connections are properly aligned to avoid premature wear. Use the specified axle bolts with 27mm hex size and M16*1.5 thread pitch. Note that the axle nut is not included and must be sourced separately. Verify the ABS tone ring is correctly positioned to maintain sensor accuracy. It is recommended to inspect related suspension and driveline components during installation for comprehensive maintenance.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component designed to meet OEM fit and function standards. TrakMotive products undergo quality control to ensure durability and performance. Warranty details should be confirmed with the distributor or manufacturer, as coverage may vary.
