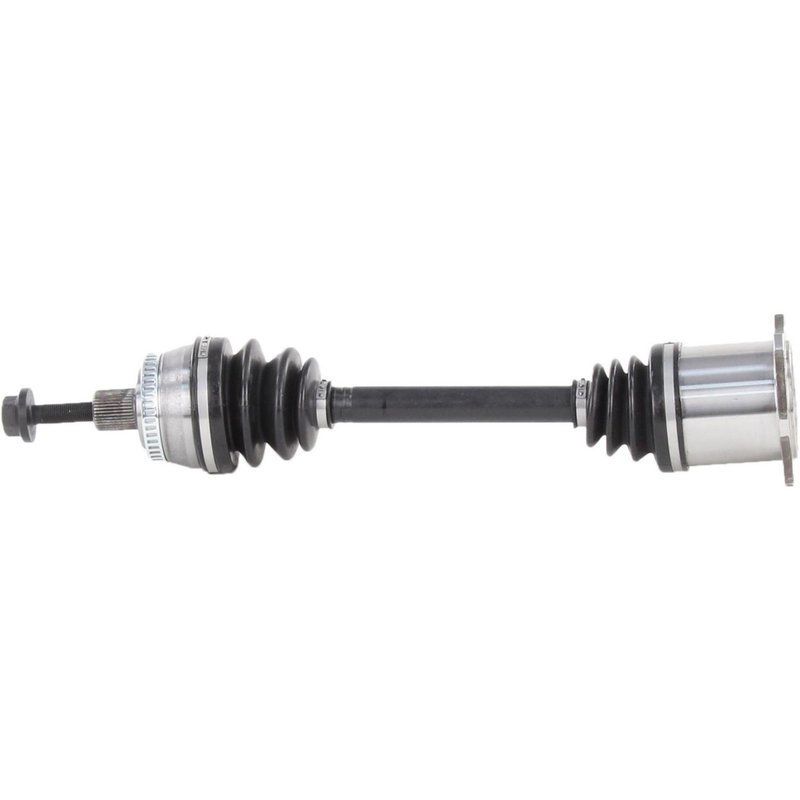

TrakMotive AD-8100 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft AD-8100

The TrakMotive CV Axle Shaft AD-8100 is designed specifically for Audi A4 Quattro models, providing reliable driveline performance. This new axle shaft features a neoprene boot and precise fitment to ensure durability and smooth operation.

• Compatible with Audi A4 Quattro
• Part Number: AD-8100
• Neoprene boot material for enhanced flexibility and protection
• 45-tooth window ABS ring included for accurate wheel speed sensing
• Flange type inboard joint and flange shaft connection
• Outboard joint with Audi style spline bolt and 38 splines
• Overall compressed length of 489 mm (19.25 inches)
• Axle bolt specifications: 27 mm hex size, 97 mm length, M16*1.5 thread size
• New, not remanufactured, ensuring original quality

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components engineered for specific vehicle applications. The AD-8100 model exemplifies this approach by offering a direct replacement axle shaft with integrated ABS tone ring and durable neoprene boot, designed to maintain factory performance standards for Audi A4 Quattro vehicles.

Technical Description and Features

This CV axle shaft includes a 45-tooth window-type ABS ring that is essential for accurate anti-lock braking system operation. The neoprene boot material provides resistance to wear and environmental factors, extending the life of the joint. The inboard joint uses a flange connection style with a single bolt hole, while the outboard joint features an Audi style spline bolt with 38 splines, ensuring a secure and precise fit. The axle bolts have a 27 mm hex size, 97 mm length, and M16*1.5 thread size, though the axle nut is not included. The overall compressed length of 489 mm (19.25 inches) matches OEM specifications for proper installation and function.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Audi A4 Quattro
• Restores proper ABS sensor function with included tone ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage with durable neoprene boot
• Ensures secure drivetrain connection with correct spline and bolt specifications

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft AD-8100, verify compatibility with your Audi A4 Quattro model year and drivetrain configuration. Use the specified axle bolts (27 mm hex, 97 mm length, M16*1.5 thread) and torque to manufacturer specifications. Inspect the flange and spline connections for proper alignment before tightening. Since the axle nut is not included, ensure you have the correct nut for your vehicle. Proper installation will maintain ABS sensor accuracy and driveline integrity.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft AD-8100 is a new, not remanufactured, component manufactured to meet OEM standards. It includes an ABS tone ring for system compatibility and uses high-quality neoprene for boot durability. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliable performance in Audi A4 Quattro applications.
