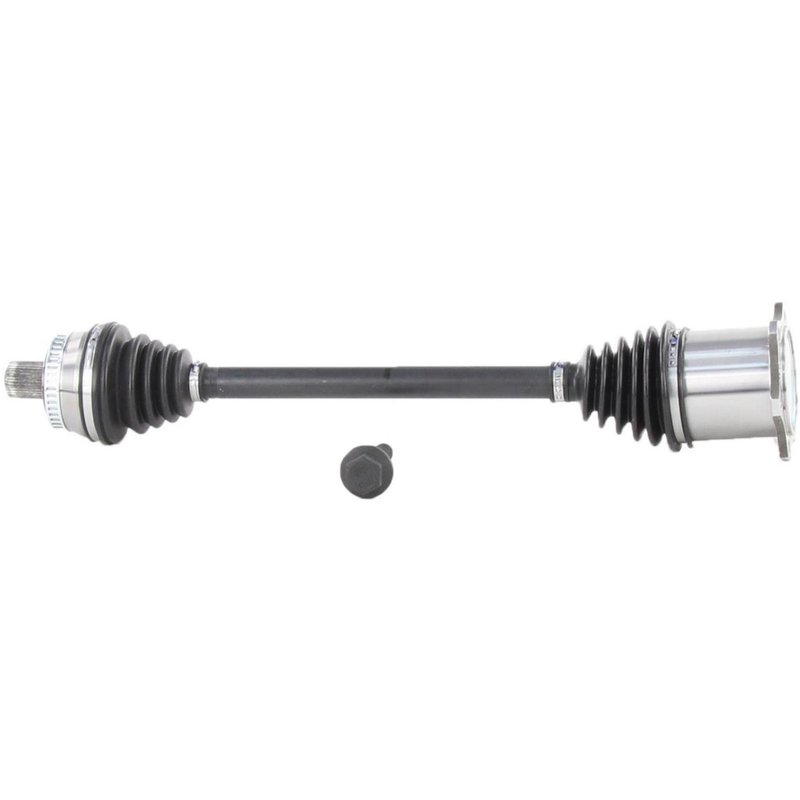

TrakMotive AD-8106 CV Axle Shaft - Front Right
| Brand | TrakMotive AD-8106 |
|---|---|
| Position | Front Right |
| Abs Ring Tooth Count | 45 |
| Abs Ring Type | Window |
| Abs Tone Ring Included | Yes |
| Axle Bolt Hex Size (mm) | 27 |
| Axle Bolt Length (mm) | 97 |
| Axle Bolt Thread Size | M16*1.5 |
| Axle Nut Included | No |
| Boot Material | Neoprene |
| Inboard Joint Type | Flange |
| Inboard Shaft Connection Style | Flange |
| New Or Remanufactured | New |
| Number Of Bolt Holes | 1 |
| Number Of Outboard Shaft Bolts | 1 |
| Number Of Outboard Splines | 38 |
| Outboard Joint Type | Audi Style Spline Bolt |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 24.29 |
| Overall Compressed Length (mm) | 617 |
| Product line | CV Axle Shaft |
| Fits | Audi · 8 vehicles |
New CV axle shaft. Fresh replacement part with flange connections and spline-bolt outboard design.
Neoprene boot. Durable material helps protect the joint from dirt and moisture.
ABS tone ring included. Built with a 45-tooth window ring for ABS-equipped applications.
Cross-references DENSO Auto Parts 5312, TrakMotive AD-8106 and 80-9080 for the same application. See all 11.
TrakMotive CV Axle Shaft for Audi A4 Quattro
TrakMotive AD-8106 is a new CV axle shaft for the front right position on select Audi A4 Quattro applications. It is built with a 38-spline outboard connection, flange-style inboard joint, and ABS tone ring details that support the listed fitment.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: AD-8106
- Front right axle for select Audi A4 Quattro models
- New construction with neoprene boot material
- Outboard joint type: Audi style spline bolt
- Inboard joint type: flange
- ABS tone ring included; 45-tooth window-style ring
- Axle bolt thread size: M16 x 1.5
- Axle bolt hex size: 27 mm
- Overall compressed length: 24.29 in. (617 mm)
Product Details
TrakMotive AD-8106 is a CV axle shaft engineered for the front right side of 2003-2008 Audi A4 Quattro and 2002 Audi A4 Quattro with the noted transmission exception. The axle uses a flange-style inboard connection and an Audi style spline bolt outboard connection, with 38 outboard splines for the specified application. The included ABS tone ring and 45-tooth window-style ring support vehicles equipped for ABS signal transfer. This part cross-references DENSO Auto Parts 5312 for the same application.
What This Axle Shaft Helps Address
- Clicking or popping during turns caused by worn CV joints
- Vibration from a damaged or out-of-balance axle assembly
- Grease leakage from a torn or deteriorated boot
- Driveline noise from excessive axle wear
- ABS warning concerns related to a failed tone ring on the listed application
Installation Notes and Tips
Verify the front right position, spline count, bolt thread size, and ABS ring details before installation. Confirm the 2002 Audi A4 Quattro exception for transmission code FTZ, and compare the overall compressed length to the original axle. Inspect mating surfaces, hub hardware, and flange condition during service to help ensure proper fitment on Audi A4 Quattro front right applications.
Quality Assurance
TrakMotive identifies this axle shaft as a new part and states that its products are backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:1007 and TS 16949:2009 certification.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2008 | Audi | A4 Quattro | Manual | 3.2L | V6 | Front Right | CV Axle Shaft |
| 2008 | Audi | A4 Quattro | Manual | 2.0L | L4 | Front Right | CV Axle Shaft |
| 2007 | Audi | A4 Quattro | Manual | 2.0L | L4 | Front Right | CV Axle Shaft |
| 2006 | Audi | A4 Quattro | Manual | 2.0L | L4 | Front Right | CV Axle Shaft |
| 2005 | Audi | A4 Quattro | Manual | 1.8L | L4 | Front Right | CV Axle Shaft |
| 2004 | Audi | A4 Quattro | Manual | 1.8L | L4 | Front Right | CV Axle Shaft |
| 2003 | Audi | A4 Quattro | Manual | 1.8L | L4 | Front Right | CV Axle Shaft |
| 2002 | Audi | A4 Quattro | Manual | 1.8L | L4 | Front Right | Exc.Trans.Code FTZ; CV Axle Shaft |
