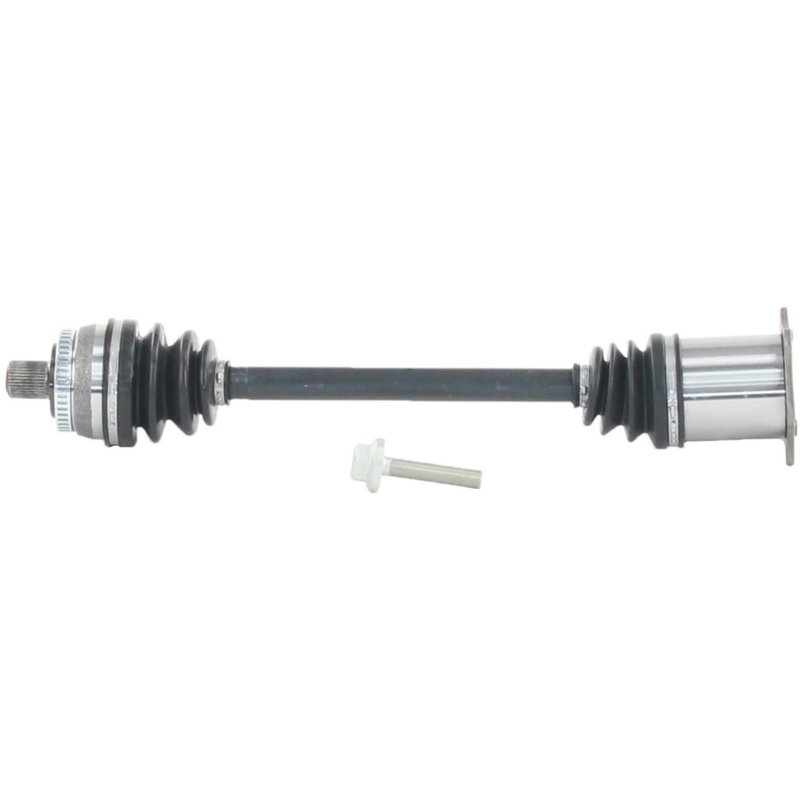

TrakMotive AD-8109 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft AD-8109 for Audi Allroad Quattro

The TrakMotive CV Axle Shaft AD-8109 is engineered specifically for Audi Allroad Quattro models, providing reliable driveline performance. Designed as a new replacement part, it ensures precise fitment and durability for your vehicle's CV components.

• Compatible with Audi Allroad Quattro
• New CV Axle Shaft with flange inboard joint
• Neoprene boot material for enhanced durability
• Includes ABS tone ring with 45 window-type teeth
• Axle bolt specifications: 27mm hex size, 97mm length, M16*1.5 thread
• Outboard joint features Audi style spline bolt with 38 splines
• Overall compressed length of 604 mm (23.78 inches)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components tailored to specific vehicle applications. This line emphasizes quality materials and exact fitment, such as the flange-type inboard joint and Audi style spline bolt outboard joint found in the AD-8109. These features contribute to maintaining proper axle alignment and smooth power transfer in Audi Allroad Quattro vehicles.

Technical Description and Features

The AD-8109 CV Axle Shaft is constructed with a neoprene boot that offers resistance to wear and environmental factors, extending the life of the joint. The inboard joint uses a flange connection style with a single bolt hole, ensuring secure attachment to the drivetrain. The outboard joint employs an Audi style spline bolt connection with 38 splines, matching factory specifications for the Allroad Quattro. An ABS tone ring with 45 window-type teeth is included, supporting accurate wheel speed sensor readings for ABS functionality. The axle bolts are designed with a 27mm hex size, 97mm length, and M16*1.5 thread size, though the axle nut is not included.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Audi Allroad Quattro
• Restores proper ABS sensor function with included tone ring
• Eliminates axle vibration and noise caused by joint wear
• Addresses boot damage or leaks to prevent grease loss
• Ensures secure axle connection with correct bolt and spline specifications

Installation Notes and Tips

Installation requires proper torque specifications for the axle bolts (27mm hex, M16*1.5 thread). Verify the flange and spline connections align correctly with the vehicle’s drivetrain components. Since the axle nut is not included, ensure you have the correct nut for your Audi Allroad Quattro. Inspect the neoprene boot for any damage during installation to maintain joint protection.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft AD-8109 is a new, OEM-quality replacement part designed to meet or exceed factory standards. It includes an ABS tone ring to maintain vehicle safety systems. Warranty details should be confirmed with the point of purchase or manufacturer documentation.
