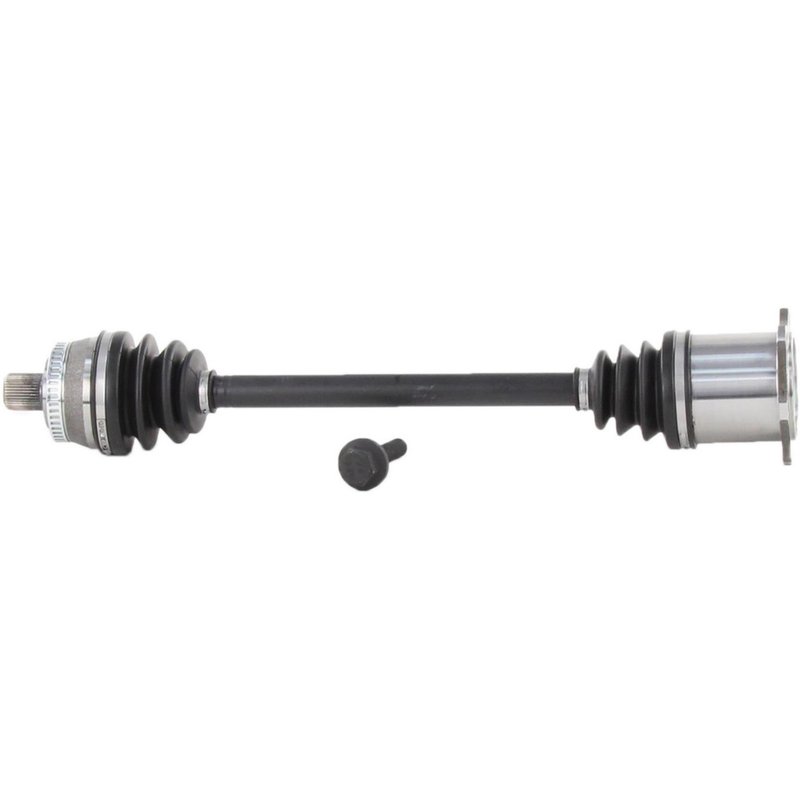

TrakMotive AD-8110 CV Axle Shaft - Front Right
| Brand | TrakMotive AD-8110 |
|---|---|
| Position | Front Right |
| Abs Ring Tooth Count | 45 |
| Abs Ring Type | Window |
| Abs Tone Ring Included | Yes |
| Axle Bolt Hex Size (mm) | 27 |
| Axle Bolt Length (mm) | 97 |
| Axle Bolt Thread Size | M16*1.5 |
| Axle Nut Included | No |
| Boot Material | Neoprene |
| Inboard Joint Type | Flange |
| Inboard Shaft Connection Style | Flange |
| New Or Remanufactured | New |
| Number Of Bolt Holes | 1 |
| Number Of Outboard Shaft Bolts | 1 |
| Number Of Outboard Splines | 38 |
| Outboard Joint Type | Audi Style Spline Bolt |
| Outboard Shaft Connection Style | Audi Style Spline Bolt |
| Overall Compressed Length (in) | 24.57 |
| Overall Compressed Length (mm) | 624 |
| Product line | CV Axle Shaft |
| Fits | Audi · 5 vehicles |
New CV axle shaft. Direct replacement for a worn driveline component.
Neoprene boot material. Helps protect the joint from dirt and moisture.
ABS tone ring included. Built with a 45-tooth window ring for ABS applications.
Cross-references TrakMotive AD-8110, 4Z7407272D and 4Z7407452X for the same application. See all 12.
TrakMotive AD-8110 CV Axle Shaft
TrakMotive AD-8110 is a new CV axle shaft for the front right position on select Audi Allroad Quattro models. Built for 2001-2005 Audi Allroad Quattro applications, this axle shaft is specified with a 24.57 in. compressed length, 38 outboard splines, and an Audi-style spline bolt outer connection for direct driveline service.
Key Features
- Fits 2001-2005 Audi Allroad Quattro, front right
- TrakMotive CV Axle Shaft, part number AD-8110
- New replacement axle shaft for driveline repair
- Inboard flange connection and Audi-style spline bolt outboard joint
- Neoprene boot material for axle joint protection
- ABS tone ring included with 45-tooth window-style ring
- Axle bolt specs: M16 x 1.5 thread, 27 mm hex, 97 mm length
Product Details
TrakMotive AD-8110 is a CV axle shaft engineered for the front right side of the Audi Allroad Quattro from 2001 through 2005. It uses a flange-style inboard connection and an Audi-style spline bolt outboard joint, with 38 outboard splines and a 624 mm overall compressed length. The axle includes an ABS tone ring with a 45-tooth window design, and the boot is made from neoprene for joint coverage in service conditions. TrakMotive positions this CV axle shaft line as a new replacement option backed by ISO 9001:1007 and TS 16949:2009 certified manufacturing practices.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Repair Uses
- Restores drivetrain function after a worn or noisy front axle
- Addresses clicking or popping during turns caused by CV joint wear
- Replaces a damaged axle shaft with spline or flange connection wear
- Corrects vibration or shudder related to axle imbalance or joint damage
- Supports ABS-equipped service when the original axle uses a tone ring
Installation Notes
Verify front right fitment, axle length, spline count, and bolt connection style before installation. The axle nut is not included, so confirm the correct retaining hardware for the vehicle. ABS axles fit non-ABS applications unless otherwise noted by the vehicle configuration.
Quality Assurance
TrakMotive AD-8110 is a new CV axle shaft from an ISO 9001:1007 and TS 16949:2009 certified company. Manufacturer coverage includes a limited lifetime warranty.
| Year | Make | Model | Transmission | Position | Notes |
|---|---|---|---|---|---|
| 2005 | Audi | Allroad Quattro | Manual | Front Right | CV Axle Shaft |
| 2004 | Audi | Allroad Quattro | Manual | Front Right | CV Axle Shaft |
| 2003 | Audi | Allroad Quattro | Manual | Front Right | CV Axle Shaft |
| 2002 | Audi | Allroad Quattro | Manual | Front Right | CV Axle Shaft |
| 2001 | Audi | Allroad Quattro | Manual | Front Right | CV Axle Shaft |
