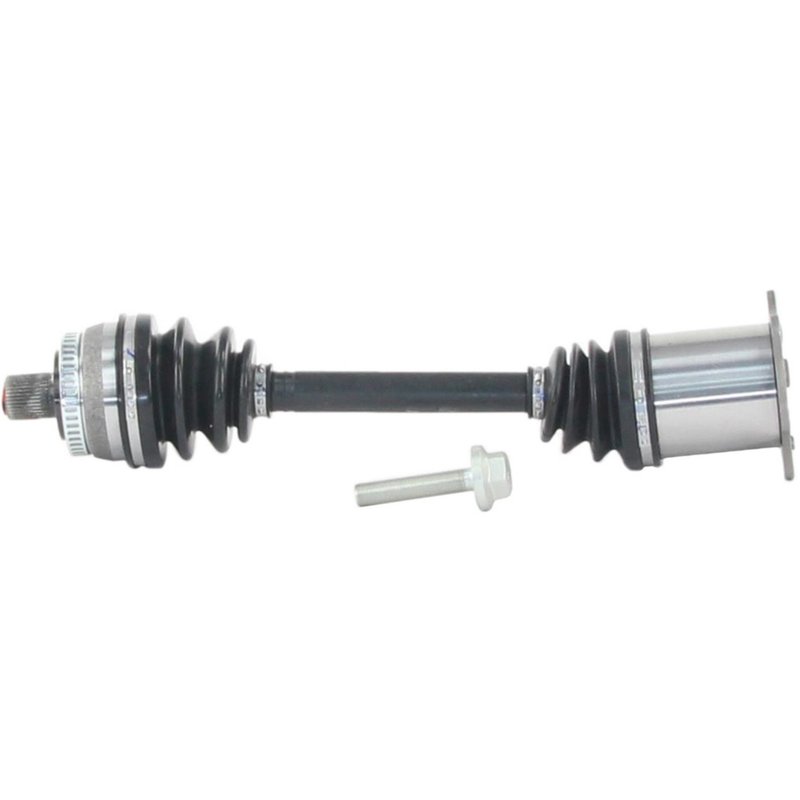

TrakMotive AD-8112 CV Axle Shaft - Front Right
| Brand | TrakMotive AD-8112 |
|---|---|
| Position | Front Right |
| Abs Ring Tooth Count | 45 |
| Abs Ring Type | Window |
| Abs Tone Ring Included | Yes |
| Axle Bolt Hex Size (mm) | 27 |
| Axle Bolt Length (mm) | 97 |
| Axle Bolt Thread Size | M16*1.5 |
| Axle Nut Included | No |
| Boot Material | Neoprene |
| Inboard Joint Type | Flange |
| Inboard Shaft Connection Style | Flange |
| New Or Remanufactured | New |
| Number Of Bolt Holes | 1 |
| Number Of Outboard Shaft Bolts | 1 |
| Number Of Outboard Splines | 38 |
| Outboard Joint Type | Audi Style Spline Bolt |
| Outboard Shaft Connection Style | Audi Style Spline Bolt |
| Overall Compressed Length (in) | 18.86 |
| Overall Compressed Length (mm) | 479 |
| Product line | CV Axle Shaft |
| Fits | Audi · 16 vehicles |
New replacement part. Built as a new CV axle shaft for straightforward service replacement.
ABS tone ring included. Window-style ring with 45 teeth for integrated wheel speed sensing.
Neoprene boot material. Helps protect the joint with durable, flexible sealing.
Cross-references Cardone New 66-7384, TrakMotive AD-8112 and 4B3407272C for the same application. See all 15.
TrakMotive AD-8112 CV Axle Shaft for Audi Front Right
TrakMotive AD-8112 is a new CV axle shaft built for front right applications on select Audi Quattro models. It is specified for Audi A4 Quattro, A6 Quattro, RS6, and S6 fitments, with ABS tone ring details and OE-style connection points for direct replacement service.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: AD-8112
- Front right axle for select Audi Quattro applications
- New construction with neoprene boot material
- Inboard flange connection and Audi-style spline bolt outboard joint
- ABS tone ring included; 45-tooth window-style ring
- 27 mm axle bolt hex size, M16 x 1.5 thread, 97 mm bolt length
- 38 outboard splines and 18.86 in. overall compressed length
Product Details
TrakMotive AD-8112 is a CV axle shaft for front right driveline service on Audi A4 Quattro, Audi A6 Quattro, Audi RS6, and Audi S6 models. The axle uses a flange-style inboard joint and an Audi-style spline bolt outboard connection, with a neoprene boot and included ABS tone ring for applications that require wheel speed signal integration. TrakMotive identifies this axle as a new part, and the manufacturer notes that ABS axles fit non-ABS applications unless otherwise noted. The AD-8112 part number is also referenced in interchange listings for related replacement searches.
This part cross-references Cardone New 66-7384 for the same application.
What It Helps Address
- Clicking or popping noises during turns from a worn CV joint
- Vibration or shudder during acceleration from axle wear
- Grease leakage caused by a damaged axle boot
- ABS-related driveline service needs when the tone ring is required
- Front right axle replacement on Quattro-equipped Audi vehicles
Installation Notes and Tips
- Verify front right position, spline count, bolt size, and compressed length before installation.
- Confirm ABS tone ring requirements against the vehicle’s original axle configuration.
- Inspect flange surfaces, axle bolt threads, and mating components for wear before assembly.
- Use the vehicle’s service procedure for torque specifications and final fastener tightening.
- Check for proper axle seating and smooth rotation after installation.
Quality Assurance
TrakMotive lists this CV axle shaft as a new replacement part and states that its products are backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:1007 and TS 16949:2009 certification.
Compatible With 2000-2004 Audi A6 Quattro, front right; 2002-2004 Audi S6, front right; 2003-2004 Audi RS6, front right; and 2005-2009 Audi A4 Quattro, front right.
| Year | Make | Model | Submodel | Body Type | Drive Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|---|
| 2009 | Audi | A4 Quattro | — | Convertible | — | — | 2.0L | L4 | Front Right | CV Axle Shaft |
| 2008 | Audi | A4 Quattro | Base | Sedan | — | Automatic | 2.0L | L4 | Front Right | CV Axle Shaft |
| 2007 | Audi | A4 Quattro | Base | Sedan | — | Automatic | 2.0L | L4 | Front Right | CV Axle Shaft |
| 2006 | Audi | A4 Quattro | — | — | — | Automatic | 3.0L | V6 | Front Right | CV Axle Shaft |
| 2006 | Audi | A4 Quattro | Base | Sedan | — | Automatic | 2.0L | L4 | Front Right | CV Axle Shaft |
| 2005 | Audi | A4 Quattro | Base | — | — | Automatic | 2.0L | L4 | Front Right | CV Axle Shaft |
| 2004 | Audi | A6 Quattro | — | — | — | Automatic | 4.2L | V8 | Front Right | CV Axle Shaft |
| 2004 | Audi | RS6 | — | — | — | — | — | — | Front Right | CV Axle Shaft |
| 2004 | Audi | S6 | — | — | AWD | Automatic | — | — | Front Right | CV Axle Shaft |
| 2003 | Audi | A6 Quattro | — | — | — | Automatic | 4.2L | V8 | Front Right | CV Axle Shaft |
| 2003 | Audi | RS6 | — | — | — | — | — | — | Front Right | CV Axle Shaft |
| 2003 | Audi | S6 | — | — | AWD | Automatic | — | — | Front Right | CV Axle Shaft |
| 2002 | Audi | A6 Quattro | — | — | — | Automatic | 4.2L | V8 | Front Right | CV Axle Shaft |
| 2002 | Audi | S6 | — | — | AWD | Automatic | — | — | Front Right | CV Axle Shaft |
| 2001 | Audi | A6 Quattro | — | — | — | Automatic | 4.2L | V8 | Front Right | CV Axle Shaft |
| 2000 | Audi | A6 Quattro | — | — | — | Automatic | 4.2L | V8 | Front Right | CV Axle Shaft |
