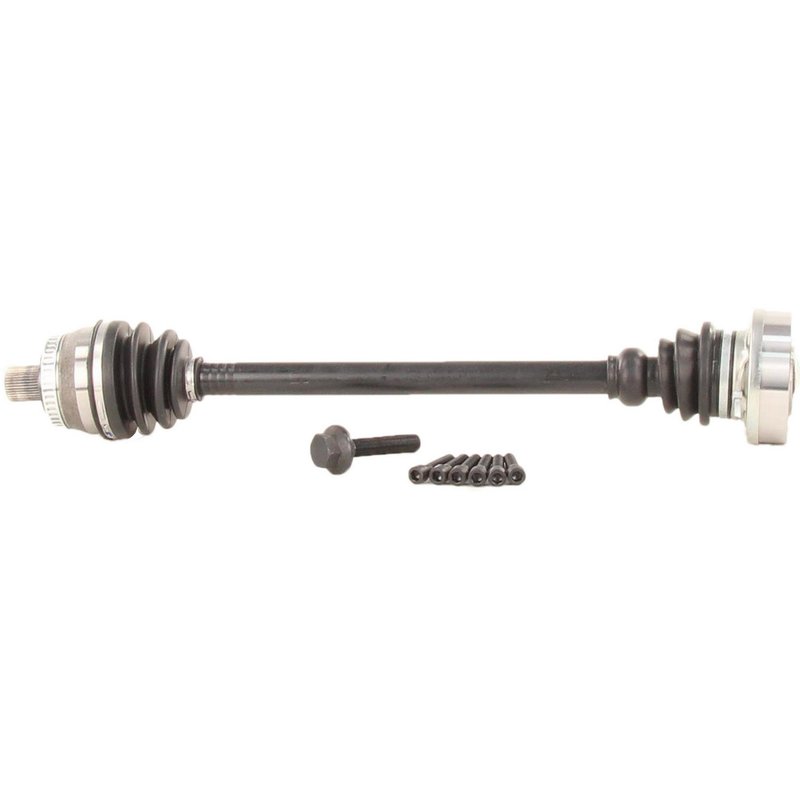

TrakMotive AD-8114 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft AD-8114

The TrakMotive CV Axle Shaft AD-8114 is engineered for precise fitment with Audi A6 Quattro models. Designed as a new replacement part, it ensures reliable driveline performance and compatibility with specific vehicle requirements.

• Compatible with Audi A6 Quattro
• New CV Axle Shaft with bolt-on inboard joint
• 45-tooth window ABS ring with included tone ring
• Neoprene boot material for durability
• Overall compressed length of 657 mm (25.87 in)
• Axle bolt specifications: M16*1.5 thread, 27 mm hex size, 97 mm length
• Inboard bolt: M10*1.5 thread, 8 mm Allen head, 55 mm length
• Outboard joint with Audi style spline bolt connection

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering direct-fit replacement components for driveline and axle systems. This line emphasizes precise engineering to match OEM specifications, including bolt patterns and ABS ring configurations. The AD-8114 model exemplifies this approach by incorporating a bolt-on inboard joint and an Audi style spline bolt outboard joint, ensuring compatibility and ease of installation for Audi A6 Quattro vehicles.

Technical Specifications and Features

The AD-8114 CV Axle Shaft features a 45-tooth window-type ABS ring with an included tone ring, supporting accurate ABS sensor readings. The neoprene boot material provides resistance to wear and environmental factors, extending the service life of the axle shaft. The axle bolts include a 27 mm hex size with M16*1.5 thread and 97 mm length, while the inboard bolts use a 8 mm Allen head with M10*1.5 thread and 55 mm length. The outboard joint utilizes an Audi style spline bolt connection with 38 splines, designed for secure and precise fitment.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Audi A6 Quattro
• Restores proper ABS sensor function with included tone ring
• Eliminates axle vibration or noise caused by joint wear
• Addresses boot damage or leaks with durable neoprene material
• Ensures secure axle connection with correct bolt specifications

Installation Notes and Tips

Installation requires proper torque settings for axle and inboard bolts to maintain driveline integrity. The bolt-on inboard joint design simplifies alignment and attachment. Verify the 45-tooth window ABS ring is correctly positioned to ensure accurate ABS sensor readings. Use appropriate tools for the 27 mm hex axle bolt and 8 mm Allen inboard bolts. Inspect mating surfaces for cleanliness before installation to prevent premature wear.

Quality Assurance and Warranty

This TrakMotive CV Axle Shaft AD-8114 is a new, remanufactured-free component manufactured to meet or exceed OEM standards. The part includes an ABS tone ring to maintain vehicle safety system functionality. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure durability and fitment reliability.
