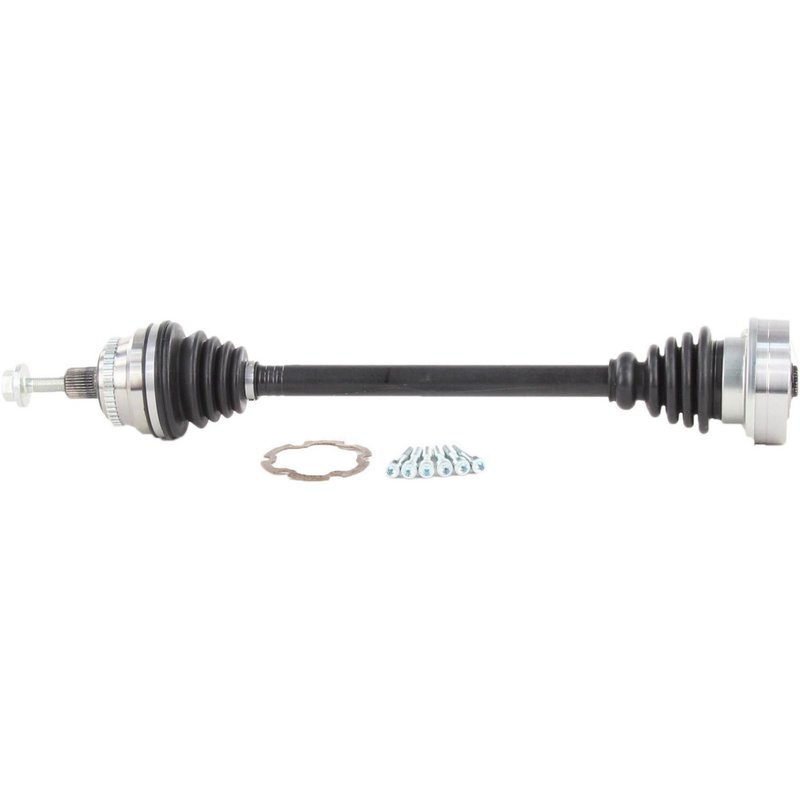

TrakMotive AD-8118 CV Axle Shaft - Rear Left or Rear Right

Overview of TrakMotive CV Axle Shaft AD-8118

The TrakMotive CV Axle Shaft AD-8118 is engineered for reliable driveline performance in select Audi models. Designed specifically for Audi 90 Quattro, A4 Quattro, and S4 vehicles, this new axle shaft ensures precise fitment and durability.

• Compatible with Audi 90 Quattro, A4 Quattro, and S4 models
• New CV Axle Shaft from TrakMotive's CV Axle Shaft product line
• Neoprene boot material for enhanced durability
• Includes ABS tone ring with 45 toothed ring count
• Outboard joint features Audi style spline bolt connection
• Inboard joint is bolt-on type with Allen head bolts
• Overall compressed length of 595 mm (23.43 in)
• Axle bolt specifications: M14*1.5 thread size, 23.8 mm hex size, 93 mm length

Detailed Product Features and Specifications

The TrakMotive AD-8118 CV Axle Shaft is part of the CV Axle Shaft product line, which focuses on delivering precise driveline components tailored for specific vehicle applications. This axle shaft is new, not remanufactured, ensuring original quality and performance. It features a neoprene boot that provides resistance to wear and environmental factors, extending the life of the joint.

The axle includes a toothed ABS tone ring with 45 teeth, which is essential for accurate wheel speed sensor readings. The outboard joint uses an Audi style spline bolt connection with 33 splines and a single outboard shaft bolt, ensuring secure attachment. The inboard joint is a bolt-on type with six M8*1.25 Allen head bolts, measuring 56.5 mm in length, providing a robust connection to the transmission or differential.

Axle bolts have a thread size of M14*1.5, a hex size of 23.8 mm, and a length of 93 mm, designed to meet factory specifications. The overall compressed length of the axle shaft is 595 mm (23.43 inches), matching the exact dimensions required for proper fitment in compatible Audi models.

Applications and Common Issues Addressed

• Replacement for worn or damaged CV axle shafts on Audi 90 Quattro, A4 Quattro, and S4
• Resolves issues related to torn or leaking CV boots
• Eliminates vibrations or clicking noises caused by joint wear
• Restores proper ABS sensor function with included tone ring
• Corrects driveline imbalance or axle shaft damage from road hazards

Installation Notes and Tips

• Ensure compatibility with Audi 90 Quattro, A4 Quattro, or S4 before installation
• Use proper torque specifications for axle and inboard bolts to avoid damage
• Inspect surrounding components such as wheel bearings and seals during replacement
• Verify ABS sensor alignment with the included toothed tone ring
• Professional installation is recommended for precise fit and safety

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft AD-8118 is manufactured to meet OEM standards for fit and function. As a new component, it provides reliable performance and durability. Warranty coverage details should be confirmed with the distributor or manufacturer, ensuring peace of mind with your purchase.
